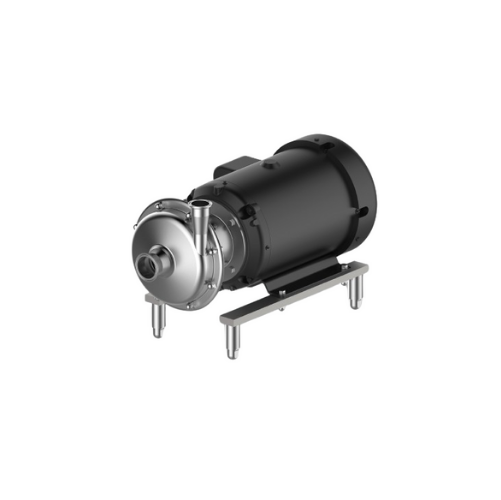

Hygienic centrifugal pump for beverage applications

Ensure gentle handling and efficient transfer of sensitive liquids with a centrifugal pump designed to maintain hygienic conditions and optimize energy use in your production process.

Handles Hygienic Pumping and Liquid Process Challenges

The GEA Hilge TP series, including models like the TP 3050 Super and TP 3050 3-A, is designed by GEA for reliable and hygienic liquid handling across industries. It features a robust single-stage centrifugal design for gentle product handling in processes like beverage and dairy production, as well as pharmaceutical applications requiring stringent hygiene. Engineered for flexibility, these pumps can operate continuously with energy-efficient motors, reducing energy consumption. The spiral housing, crafted from deep-drawn CrNiMo rolled steel, ensures corrosion resistance and optimal cleanability, aligning with EHEDG standards. Capable of handling flow rates up to 240 m³/h and pressure levels up to 16 bar, these pumps are ideal for transferring a wide range of liquids from beer and milk to industrial oils. With ATEX certification, they are safe for explosive atmospheres. The modular design simplifies maintenance and allows for easy integration with standardized wear parts and IEC standard motors, ensuring cost-effective operation and minimal downtime.

Benefits

  • Enhances operational efficiency with low NPSH design, preventing early cavitation.
  • Minimizes spare parts inventory through a modular setup, streamlining maintenance logistics.
  • Energy usage is optimized with speed control and impeller trimming, lowering operational costs.
  • Certified for ATEX environments, ensuring safety in potentially explosive settings.
  • Supports strict hygiene standards with design compliant to EHEDG, assuring product safety and quality.

General


Applications
Food,Gas and energy,Beverage,Oil,Chemical,Pharma,Healthcare,Dairy
End products
Cream,Bottled water,Edible oils,Refined petroleum products,Chemical solutions,Industrial oils,Soft drinks,Beer,Flavored beverages,Mash,Protein drinks,Liquid food ingredients,Milk,Alcoholic beverages,Yeast,Pharmaceuticals,Yoghurt,Cosmetic lotions,Wort
Steps before
Brewing,Mashing,Fermentation,Mixing,Heating
Steps after
Cooling,Bottling,Canning,Storage,CIP (Cleaning in Place)
Input ingredients
beer,wort,mash,yeast,alcoholic drinks,soft drinks,water,milk,cream,yoghurt,molke,flavors,proteins,liquid food,oils
Output ingredients
beer,wort,mash,yeast,alcoholic drinks,soft drinks,water,milk,cream,yoghurt,molke,flavors,proteins,liquid food,oils
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Flow Rate
220 m³/h - 240 m³/h
Head
90 m - 130 m
Operating Temperature
140 °C
Operating Pressure
16 bar
Material
CrNiMo rolled steel
NPSH Value
Low
Suitable for ATEX Areas
Yes
Seal Diameter
Two sizes for 11 pump sizes
Energy Efficiency
Optimized speed control

Operating Characteristics


Flow rate
220–240 m³/h
Pressure range
16 bar
Operating temperature
Up to 140 °C
Batch vs. continuous operation
Continuous
Energy efficiency
Optimized speed control
CIP/SIP
EHEDG standards

Material Compatibility


Cleanability
Excellent surface finish
Corrosive resistance (e.g. acids)
Deep-drawn CrNiMo rolled steel

Product type Characteristics


Abrasiveness
Low
Viscosity
Low to medium
Heat sensitivity
Up to 140°C
Explosion Risks
ATEX certified
Foaming
Gentle handling to reduce


EC Declaration of Conformity
ATEX Directive 2014/34/EU

Physical Characteristics


Discharge method
Centrifugal
Material
CrNiMo rolled steel
Design
Single-stage centrifugal
Spiral housing
Deep-drawn steel

Custom Options


Motor Adaptability
IEC standard motors with balanced clamping shafts
