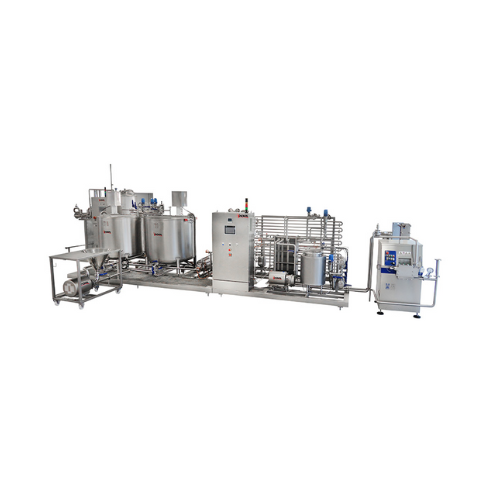

Htst pasteurization system for liquid foods

Ensure your liquid products are safe and long-lasting with high-temperature-short-time pasteurization that efficiently eliminates pathogens and extends shelf life while maximizing energy recovery.

Processes and Pasteurizes Liquid Foods

The HTST Pasteuriser from INOXPA is designed for producers in food, dairy, and beverage industries seeking a reliable heat treatment solution for liquid foods. This equipment utilizes a high-efficiency plate or tubular heat exchanger system, ensuring uniform pasteurization across diverse product lines like milk, juices, and plant-based drinks. Operating within a temperature range of 70°C to 100°C, it guarantees pathogen elimination, enhances shelf life, and maintains quality. The modular, skid-mounted design allows for easy integration into existing systems, featuring automation options for seamless operation. With energy recovery rates up to 95%, it is engineered for optimal energy efficiency. Made from durable AISI 316L and AISI 304 stainless steel, it offers strong resistance to corrosion. The unit can be customized with options including homogenisers, centrifugal separators, and deaerators to meet specific process requirements, ensuring compliance with industry standards.

Benefits

  • Enhances product safety and quality by effectively eliminating pathogens through precise heat treatment.
  • Significantly reduces energy costs with up to 95% heat recovery capability.
  • Increases operational efficiency with automated controls and remote monitoring options.
  • Adapts to a wide range of liquid food products, supporting diverse production requirements.
  • Minimizes maintenance downtime with integrated CIP systems for efficient cleaning.

General


Applications
Cream,Dairy desserts,Concentrated fruit juices,Plant-based drinks,Liquid foods,Milk,Food industry,Cosmetic and pharmaceutical industry,Low-viscosity foods,Fruit juices,Vegan desserts,Dairy industry,Bakery industry,Ice cream mix,Beverage industry
End products
Coconut milk,Vegan yogurt,Oat milk,Flavored milk,Ready-to-drink soups,Almond milk,Cream cheese,Ice cream,Low-fat yogurt,Concentrated apple juice,Fruit smoothies,Liquid vitamins,Soy milk,Plant-based protein drinks,Kefir,Fruit nectar,Dairy-free milk alternatives,Concentrated orange juice
Steps before
Emulsification,Grinding,Mixing,Blending
Steps after
Cooling,Packing,Bottling,Labeling
Input ingredients
milk,cream,ice cream mix,dairy desserts,vegan desserts,fruit juices,concentrated fruit juices,plant-based drinks,liquid food products,low-viscosity foods
Output ingredients
pasteurized milk,pasteurized cream,pasteurized ice cream mix,pasteurized dairy desserts,pasteurized vegan desserts,pasteurized fruit juices,pasteurized concentrated fruit juices,pasteurized plant-based drinks,pasteurized liquid food products,pasteurized low-viscosity foods
Market info
INOXPA is known for its expertise in manufacturing stainless steel components and equipment, particularly for the food, dairy, cosmetic, and pharmaceutical industries. They are reputed for high-quality, hygienic, and reliable processing solutions.

Technical Specifications


Pasteurisation Temperature
70-100°C
Temperature Holding Time
15-300 sec
Heat Exchanger Type
Plate / Tubular
Heating Mode
Indirect
Power Supply
3-phase
Heat Recovery
Up to 95%
Compressed Air Pressure
6-8 bar
Cooling Media
Tower/Mains/Chilled Water
Material
AISI 316L / AISI 304
Surface Finish
Ra ≤ 0.8 µm
Automation Level
Basic to Fully Automated
Heating Media
Steam / Hot Water / Resistors
Typical Process Temperature Range
70°C – 100°C

Operating Characteristics


Working mechanism
Plate or tubular heat exchangers
Heat recovery
Up to 95%
Temperature range
70°C – 100°C
Temperature holding time
15 sec. – 300 sec.
Automation level
Basic to fully automated
Batch vs. continuous operation
Inline Continuous
Cleaning method
CIP
Cooling media
Tower water,mains water,chilled water
Heating media
Steam,hot water
Energy efficiency
High,with significant heat recovery
Compressed air usage
6-8 bar
CIP/SIP
CIP

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
Modular and compact skid-mounted units
Control panel type
Built-in power and control switchboard contained in a stainless-steel cabinet
Discharge method
Sanitary pumps
Support Structure
Skid,frames and supports AISI 304

Custom Options


Control panel type
Integrated stainless-steel cabinet with power and control switchboard
