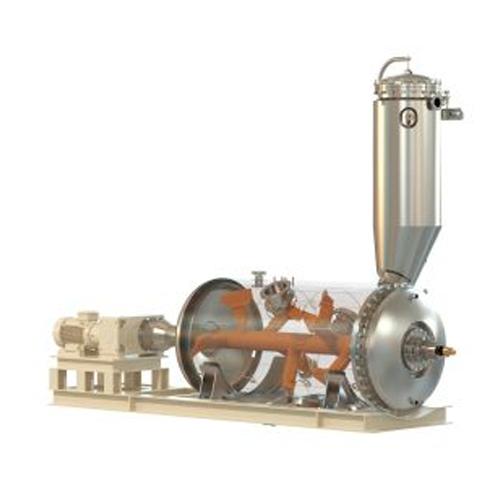

Horizontal vacuum paddle dryer for thermosensitive products
For high-viscosity products like active pharmaceuticals or polymers, achieving consistent drying and mixing is crucial. This vacuum paddle dryer ensures optimal moisture removal and uniform product quality, perfect for thermosensitive materials requiring gentle yet effective processing at precise temperature controls.

Dries and Mixes High-Viscosity Products Efficiently
The PADDLEDRY (MHT-S) Horizontal Vacuum Paddle Dryer from Bachiller is designed for batch processing high-viscosity and thermosensitive materials across industries such as pharmaceuticals, chemicals, and food additives. Utilizing a continuous heat exchange system facilitated by a heated shaft and blades, it ensures effective drying and mixing. Ideal for products with pseudo-plastic behavior, the equipment can operate at vacuum levels down to 1 mbar and handle temperatures up to 350º C, making it suitable for sensitive compounds like APIs, cosmetics, and pigments. With capacities ranging from 50 to 30,000 liters, PADDLEDRY ensures short drying cycles and maximum thermal efficiency.
It supports seamless integration within production lines, being fully programmable and featuring varying speed controls to match diverse process requirements. Constructed in compliance with ASME VIII, AD-2000, and EN-13445 standards, it’s available with customizable features such as mirror-polished interiors and ATEX certification for explosive environments. A variety of discharge and sampling valves, dust filters, and choppers for breaking down product lumps are options, enhancing its versatility. Additionally, Bachiller offers extensive engineering support and customization to meet specific production needs, making PADDLEDRY a robust choice for optimizing your drying operations.
Benefits
- Enhances production efficiency with rapid, uniform drying cycles for high-viscosity materials.
- Ensures product integrity with precise temperature control, suitable for thermosensitive compounds.
- Reduces operational costs through full utilization of torque and variable speed adaptations.
- Supports stringent safety and quality standards with ASME, AD-2000, and EN-13445 compliances.
- Minimizes risk in explosive environments with ATEX-certified configurations available.
- Applications
- Vitamins,Sealants,Slurry treatment,Proteins,Natural extracts,Cosmetics,Animal extracts,Minerals,Pigments,Artificial marble,Special waste treatment,Catalysts,Polymers,Stearates,Cocoa powder,Fine chemicals,Effluent treatment,Lyophilized,Ferments,Composites,Pvc additives,Agrochemicals,Chemical additives,Resins,Ready mix,Evaporation,Pharmaceuticals,Colorants,Waste water treatment,Fibers,Food additives,Solvents recycling,Veterinary,Cellulose,Graphite specialties,Flavors,Herbicides,Aromas
- End products
- Vitamin tablets,Wastewater treatment chemicals,Chemical catalysts,Industrial sealants,Freeze-dried fruit pieces,Whey protein powder,Polymer beads,Artificial stone countertops,Magnesium stearate,Pancake mix,Beef extract powder,Food color powders,Active pharmaceutical ingredients (apis),Solvent purification products,Fertilization aids,Slurry solidifiers,Bacterial cultures,Cosmetic creams,Cocoa drink mix,Waste treatment granules,Composite resins,Vanilla flavoring,Pvc stabilizers,Cellulose acetate
- Steps before
- Purification,Grinding,Emulsification,Mixing,Concentration,Reaction preparation
- Steps after
- Sterilization,Packing,Coating,Tablet Pressing,Solvent Recovery
- Input ingredients
- thermosensitive products,high viscosity materials,fine chemicals,API’s,cosmetics,food additives,natural extracts,pharmacy synthesis,veterinary products,vitamins,additives,agrochemicals,artificial marble,catalysts,cellulose,colorants,composites,effluents,fibers,graphite specialties,herbicides,minerals,polymers,PVC additives,resins,sealants,slurries,special waste,stearates,wastewater
- Output ingredients
- dried pseudo-plastic products,dried pharmaceutical products,dried chemical additives,dried cosmetics,dried food additives,dry natural extracts,final API product,dried vitamins,purified resins,processed slurries,recycled solvents,processed pigments,processed cellulose
- Market info
- Bachiller specializes in industrial engineered-to-order equipment, known for high-quality process equipment in the chemical, petrochemical, pharmaceutical, and food industries. They are recognized for their expertise in designing and manufacturing pressure vessels, reactors, and mixing equipment.
- Capacity
- 50–30,000 L
- Batch operation
- Batch-wise operation
- Vacuum level
- 1 mbar
- Operating pressure
- Atmospheric
- Operating temperature
- Up to 350º C
- Design compliance
- ASME VIII div.1 / AD-2000 / EN-13445
- Thermal efficiency
- Highest thermal efficiency
- Heating method
- Fully heated body,shaft,and blades
- Tightness
- Maximum tightness
- Durability
- Heavy-duty equipment
- Sensitivity
- Suitable for thermosensitive products
- Rotation speed
- Low speed
- Control system
- Hardware and Software for unit control
- Customization
- ATEX execution,mirror polishing,choppers,etc.
- Working Mechanism
- Fully heated body,shaft,and blades
- Batch Operation
- Batch-wise Operation
- Torque Utilization
- High Torque Requirements
- Variable Velocity
- Yes
- Thermal Efficiency
- High
- Repetitive Operation
- Reproducible and easy to scale up
- Heat Exchange
- Maximized by rotating blades
- Drying Cycles
- Shortest drying cycles
- Cleanability
- Internally polished / Electro polished
- ATEX certification
- ATEX 20/0 inner side,with official certificate
- CE marking
- CE stamping according to Safety for Machinery Directive 2006/42/CE
- ASME code
- ASME VIII div.1
- European Pressure Directive
- EN-13445
- AD-2000 code
- AD-2000
- Capacity
- 50L to 30,000L
- Discharge method
- Discharge valve with metal to metal seal
- Operation pressure
- Atmospheric
- Operation temperature
- up to 350°C
- Vacuum levels
- 1 mbar
- Heating elements
- Body,shaft,and blades fully heated
- Machine footprint
- Horizontal configuration
- Material finish
- Internally mirror polished Ra ≤ 0.6 µm,electro polished ≤ 0.2 µm
- Rotation speed
- Low speed for high torque
- Shaft and Blades
- Fully heated for maximum heat exchange
- Internal Finish
- Mirror polished Ra ≤ 0.6 µm / Electro polished ≤ 0.2 µm
- Discharge Method
- Metal to metal seal discharge valve
- Additional Features
- Choppers for breaking lumps
- Control System
- Hardware and Software for unit control
- ATEX Certification
- ATEX 20/0 inner side,with official certificate
- Operation
- Hydraulic operation of the main motor
