Horizontal air flow drying and smoking system for meat products

Achieve superior drying and smoking efficiency with horizontal air flow technology, ensuring uniform treatment even at high packing densities, perfect for optimizing meat and snack production lines.

Dries and Smokes Meats and Snacks

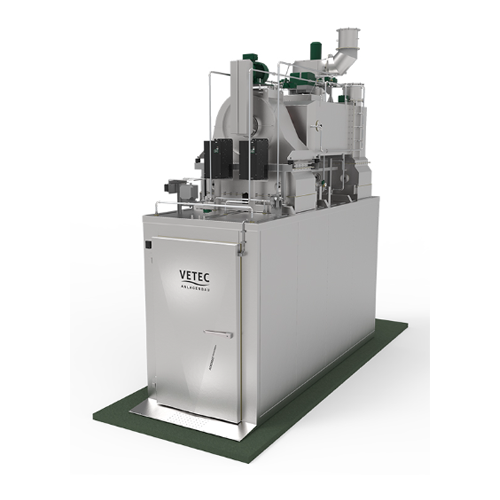

The AEROMAT CROSS POWER from VETEC Anlagenbau offers a robust solution for drying and smoking operations in the food, meat processing, and pet food industries. This system stands out with its patented horizontal air flow technology, delivering up to four times the air speed compared to conventional systems, ensuring rapid, uniform drying and smoking across up to 50 layers. It efficiently processes meats, dried pet food snacks, cheese, and fish, catering to products like bacon, beef jerky, and cured sausages. The integration of ECOCON heat recovery cuts energy usage by 30%, making it a cost-effective asset for continuous production lines. Engineered for versatility, it comes in steam-heated, direct gas-heated, and electrically heated models, with additional options for smoke generation and a fully automatic cleaning-in-place (CIP) system. The MICROMATANALYZER offers centralized management and documentation, enhancing operational efficiency and traceability. Automated for ease of use, this system’s design emphasizes hygiene and product quality, complemented by VETEC’s dedicated engineering support for tailored solutions.

Benefits

  • Enhances product uniformity and quality with patented horizontal air flow.
  • Cuts energy costs by up to 30% through ECOCON heat recovery.
  • Accommodates dense product loading for increased production efficiency.
  • Reduces manual intervention with a fully automated cleaning system.
  • Supports diverse production needs with customizable heating and smoking options.

General


Applications
Meat products,Snacks,Pet food,Cheese,Fish
End products
Cooked sausage,Beef jerky,Brisket,Pepperettes,Dried pet food snacks,Raw sausage,Bacon,Cured meat products
Steps before
Preparation,Positioning of products
Steps after
Cooling,Packing,Storage
Input ingredients
brisket,bacon,jerky,dried pet food snacks,raw sausage,cooked sausage,fish,cheese
Output ingredients
dried products,smoked products,beef jerky,pepperettes,boiled sausage,raw sausage,cured meat,cooked sausage,cured meat,thawed products
Market info
Vetec is known for its expertise in manufacturing customized industrial valves and actuators, catering to diverse industries with a reputation for reliability, precision engineering, and innovative solutions tailored to specific customer requirements.

Technical Specifications


Air speed
4 times higher than conventional systems
Capacity
Up to 50 layers
Heating options
Steam-heated,direct gas-heated,electrically heated
Temperature range for design bake
100°C - 250°C
Energy reduction by ECOCON
Up to 30%
Automation
Fully automatic CIP system

Operating Characteristics


Airflow direction
Horizontal
Air speed
Up to 4 times conventional systems
Batch vs. continuous operation
Batch
Energy efficiency
Enhanced with heat recovery system ECOCON
Automation level
Fully automatic CIP-System
Heat recovery
ECOCON pre-heating fresh air
Cleaning method
Fully automatic CIP

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine Footprint
Customizable
Horizontal Airflow
Yes,patented nozzle geometry
Maximum Layers
Up to 50 layers
Heat Recovery System
ECOCON

Custom Options


Control panel type
MICROMATANALYZER
Automation
Fully automatic
Heating type
Steam-heated / Direct gas-heated / Electrically heated
Smoke generator type
Glowing Smoke / Liquid Smoke / Steam Smoke / Friction Smoke
