High speed cheese dosing and wrapping solution

Achieve precise dosing and efficient wrapping of cheese portions with versatile hot and cold filling capabilities, designed for seamless integration into high-speed dairy production lines.

Doses and Wraps Cheese at High Speed

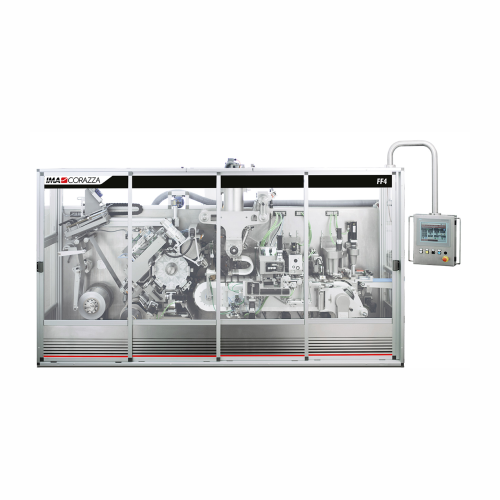

The FF4 Series from IMA Group is a high-speed dosing and wrapping machine engineered for the precise packaging of various cheese products. Designed to tackle the challenges faced by dairy producers, it employs a flexible, modular setup capable of accommodating triangular, square, and rectangular portions. The machine seamlessly integrates hot and cold filling processes through a dedicated 4-lane syringe filling unit, ensuring accurate dosing up to 600 portions per minute. Equipped with automatic feedback control and optional weight-checking, it minimizes waste and maximizes throughput. Energy efficiency is prioritized with a motor system that recycles kinetic energy and reduces power waste, complemented by vacuum pump options that lower compressed air consumption. The FF4 Series is customizable for multi-flavor configurations and supports the use of sustainable packaging materials. Additionally, it offers easy access for maintenance and includes a CIP system for efficient cleaning, making it an ideal choice for high-speed, continuous dairy operations.

Benefits

  • Enhances production efficiency by processing up to 600 portions per minute.
  • Reduces energy consumption with a modular motor system that recycles braking energy.
  • Facilitates sustainable packaging with options for recyclable materials.
  • Lowers operational costs by minimizing compressed air usage with integrated vacuum pumps.
  • Simplifies maintenance with easy access to all machine components and a CIP system for thorough cleaning.

General


Applications
Cream cheese,Dairy products,Fresh cheese,Processed cheese
End products
Spreadable cheese wedges,Soft cheese portions,Cream cheese squares,Fresh cheese rectangles,Processed cheese triangles,Multi-flavor cheese portions
Steps before
Emulsification,Cutting
Steps after
Packing,Cartoning,Palletizing
Input ingredients
processed cheese,cream cheese,fresh cheese
Output ingredients
triangular cheese portions,square cheese portions,rectangular cheese portions
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Production capacity
Up to 600 portions/min
Full load current
3P x 400 Volt – 50 Hz – 12 Amp
Compressed Air Consumption
180 Nl/min (min. op. pressure 6 bar)
Vacuum
25 m³/h (op. vacuum 600 ± 50 mm Hg)
Weight
5,600 Kg approx.
Shape Options
Triangular/Square/Rectangular
Hot and Cold Filling
Handled by same 4-lane syringe filling unit
Dosing Unit
Automatic feedback control from optional weight-checker
Cleaning method
Automatic CIP
Sustainable Motorization
Kinetic energy recovery
Format Capabilities
Flexible

Operating Characteristics


Automation level
PLC-controlled
Batch vs. continuous operation
Inline Continuous
Changeover time
Fast and efficient
CIP/SIP
Automatic CIP available
Filling versatility
Hot and cold filling
Filling accuracy
High-precision dosing
Modular design
Space-saving modular configuration
Production capacity
Up to 600 portions/min
Sustainability features
Energy-efficient motorization

Material Compatibility


Cleanability
Automatic CIP
Corrosive resistance (e.g. acids)
Stainless Steel Execution

Product type Characteristics


Portion Shape
Triangular / Square / Rectangular

Physical Characteristics


Machine footprint
Space-saving,modular design
Shape
Triangular,square,rectangular
Material
Stainless steel
Number of tracks
4 tracks
Machine weight
5,600 Kg approx.
Portion size
Triangular 6/6,8/8,12/12
Square
Rectangular
Portion weight
10g ÷ 40g
Dimensions (Box A)
25 ÷ 45
Dimensions (Box B)
25 ÷ 60
Dimensions (Box C)
8 ÷ 26

Custom Options


Modular design
Flexible and space-saving
Vacuum pumps
Available for reduced air consumption
