High-capacity manual mixer for industrial applications

Optimize your mixing process with a highly efficient, manually operated mixer designed for precise dispersion and homogenization, ensuring a smooth and stable product.

Mixes and Homogenizes Powders into Liquids

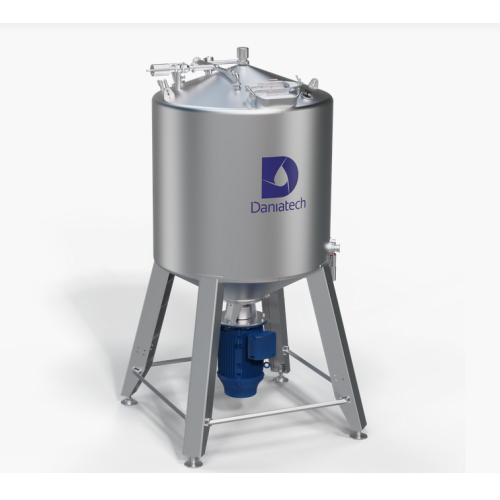

The BasicMaster from Daniatech is a versatile high-shear manual batch mixer designed to streamline your production process, whether you’re manufacturing dairy, plant-based beverages, or personal care products. It achieves exceptional mixing by manually introducing powders into liquids, creating a controlled vortex for rapid air separation and homogeneous dispersion. This mixer excels in producing infant formula, flavored milk, and vegan cheese, among others, and handles viscosities up to 2000 cP with ease. Depending on configuration, it operates as a batch or in-line mixer, with integration facilitated by options like an MCC panel with frequency inverters. Remarkably, this unit is optimized for energy efficiency, requires minimal maintenance, and supports hygienic design standards in compliance with EHEDG. For adaptable use, the BasicMaster not only reduces energy consumption but also comes with customizable features, such as additional top inlets and load cells, to tailor-fit your processing requirements.

Benefits

  • Enhances product stability with rapid air separation and homogeneous dispersion.
  • Minimizes operational costs due to low maintenance requirements.
  • Increases energy efficiency, supporting sustainable production goals.
  • Offers flexibility with batch or in-line mixing capabilities.
  • Complies with hygienic design standards, ensuring safe processing.

General


Applications
Food,Beverages,Plant-based beverages,Sauces,Soups,Personal care,Pet food,Confectionary,Condiments,Biotech,Dairy
End products
Ketchup,Chocolate syrup,Face creams,Sweetened condensed milk,Vegan cheese,Tomato soup,Probiotic cultures,Infant formula,Custard,Oat milk,Almond milk,Salad dressings,Cream cheese,Shampoo formulations,Wet dog food,Flavored milk
Steps before
ingredient preparation,manual ingredient addition,ingredient weighing
Steps after
homogenization,spray drying,pumping,packaging
Input ingredients
powder,liquid,sugar,milk-based powders,ingredients for mixing
Output ingredients
homogeneous product,lump-free mixture,product for spray drying,soft drinks,ice cream mix,sugar solutions,dissolved stabilisers,syrup,slurries,soups,recombined milk-based products
Market info
Daniatech specializes in manufacturing industrial mixers and processing equipment, known for innovation and high-quality engineering, specifically within the food, beverage, and pharmaceutical industries. Their solutions are tailored to improve efficiency and performance in production processes.

Technical Specifications


Mixer effect
11–90 kW
Powder capacity
50–300 kg/min
Product density
1–1.35 kg/l
Viscosity
1–2000 cP
Batch vs. continuous
Batch or inline
Dimensions (H x W x D)
2200 x 1200 x 900 mm – 4600 x 2600 x 2200 mm
Shipping weight
500–1700 kg
Shipping volume
2 m³ – 21 m³
Outlet size
Ø51 – Ø76 mm
Cleanability
Hygienic design in compliance with EHEDG
Automation
Manual operation

Operating Characteristics


Working mechanism
Manual operation with controlled vortex
Batch vs. inline operation
Batch or inline
Air incorporation control
Minimum air incorporation
Automation level
Minimal automated control
Cleaning method
Hygienic design with optional CIP
Energy efficiency
High-energy efficiency design

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Viscosity
1-2000 cP
Foaming
Minimal air incorporation
Product Stability
Highly stable and homogeneous

Physical Characteristics


Compact footprint
Yes
Control panel type
Manual with minimal automation
Discharge method
Butterfly valve

Custom Options


Control panel type
MCC panel with frequency inverters
Discharge method
Bigbag Discharge Master
Outlet pump
Equipped with frequency converter for inline mixing
Extra top inlet
Available as an option
Sack delivery chute
Available as an option
Load cells
With transmitter in stainless steel box
Insulated jacket
Available as an option
Motors
Other options like NEMA on request
ATEX certification
Available as an option
