Fluid bed processor for granulation and coating

Fluid bed processors offer efficient granulation and coating, streamlining material handling by combining multiple processes in a single vessel, ensuring reduced process times and enhanced material properties.

Processes Granules Through Granulation and Coating

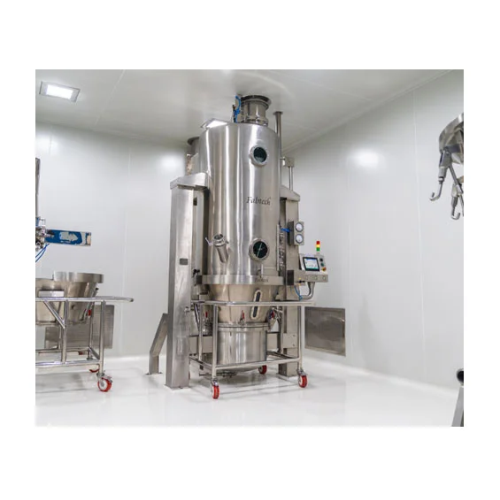

The Fluid Bed Processor from Fabtech presents a hybrid solution combining granulation and coating in a unified system. Designed for pharmaceutical, chemical, and food industries, it operates by fluidizing particles for superior granule formation and coating application. This integration enhances efficiency in processing effervescent tablets, antibiotic granules, and agrochemical pellets. With a capacity to manage laboratory, pilot, and commercial operations, it ensures optimal throughput while maintaining energy efficiency through a variable-speed motor. Constructed from SS 316/SS316L, its mirror-finished contact surfaces guarantee compliance with cGMP standards. Equipped with a PLC-controlled interface, it offers seamless line integration and remote monitoring. The processor is further complemented by HEPA filtration and pneumatically controlled dampers for precise environmental control. Tailored engineering support is available, including customizable parameters and containment isolation systems for safety and validation ease.

Benefits

  • Reduces processing times with combined granulation and coating functionality.
  • Lowers energy consumption through efficient fluidization and drying processes.
  • Ensures product quality and safety with cGMP and 21 CFR Part 11 compliance.
  • Enhances operator safety with integrated containment and isolation systems.
  • Simplifies cleaning and maintenance with automated CIP system.

General


Applications
Chemicals,Food,Granules,Coating materials,Tablets,Pharmaceuticals
End products
Antibiotic granules,Instant soup powder,Vitamin supplements,Coated confectionery,Detergent granules,Effervescent tablets,Probiotic powder,Capsule fillings,Agrochemical pellets,Pharmaceutical excipients
Steps before
Purification,Mixing,Emulsification,Grinding
Steps after
Coating,Drying,Wettability Enhancement,Packing,Tablet Pressing
Input ingredients
ingredients,particulate materials,moisture,organic solvent
Output ingredients
granules,coated materials,low moisture content materials
Market info

Technical Specifications


Capacity
Lab,Pilot,and Commercial production
Material
SS 316/SS316L
Finishing
Mirror-finished (Product contact parts),Matt-finished (Non-contact parts)
Pneumatic control
Fully sealed damper with ‘0 – 100%’ positioning
Filtration system
3-stage (Pre-filtration,fine filtration,HEPA)
Spray nozzle configuration
Single/multi-nozzle with peristaltic pump
Compliance
cGMP,21 CFR Part 11
Temperature monitoring
Specially designed temperature port
Drying rate
Fast-paced heat exchanger mechanism
Process control
Recipe-based batches
Safety features
Integrated high containment isolation systems
Validation and cleaning
Easy validation and cleaning
Automation and process control
Added safety and automation features
Air monitoring and control
Accurate air monitoring through pneumatic control
Process efficiency
Unique conidure plate design
Integration capabilities
Compatible with scrubber systems,silencers,and explosion prevention systems

Operating Characteristics


Working Mechanism
Granulation / Agglomeration / Coating
Integrated Steps
Mixing,Granulating,Drying
Batch vs. Continuous Operation
Batch
Automation Level
PLC/SCADA
Cleaning Method
Easy Validation and Cleaning
Energy Efficiency
High drying rate at reduced time
CIP/SIP
CIP Integrated
Air Incorporation Control
Fully sealed pneumatically controlled damper

Material Compatibility


Corrosive resistance (e.g. acids)
SS316/SS316L
Cleanability
Easy validation and cleaning
Biological compatibility
cGMP compliant

Custom Options


Integration with high containment isolation systems
Yes
Spray nozzle configuration
Single/multi-nozzle
Material construction
SS316/SS316L
Damper control
Pneumatically controlled
