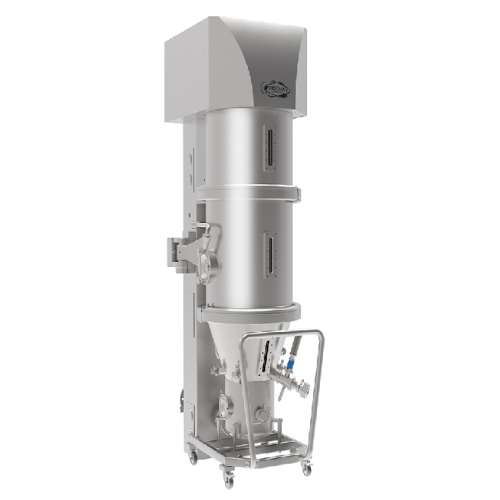

Fluid bed processor for granulating, drying, and coating in pilot scale

When scaling from laboratory to production, rely on advanced fluid bed processes to granulate, dry, and coat efficiently, ensuring precise control and quality for your pilot-scale batches.

Processes Granulates, Powders, and Coated Tablets

The CAP 10-80 RC Fluid Bed Processor from DIOSNA Dierks & Söhne GmbH is designed for efficient granulating, drying, and coating of powders and tablets, specifically within the pharmaceutical, food, and cosmetics industries. With its compact design, this processor adeptly addresses space constraints in your production facility while maintaining high-level processing capabilities.

The CAP 10-80 RC features a flexible spray technology system, offering top, bottom, or tangential spraying options, allowing for precise adaptation to a wide array of product requirements—including effervescent, controlled-release, and vitamin tablets. The unit’s Rapid Change principle facilitates easy and quick exchange of product bowls, supporting seamless batch-to-batch transitions and simplifying scale-up operations to enhance production efficiency.

Engineered for automated operation, it includes a PLC system to manage and store various recipes, aligning with your specific batch production needs. The processor’s durable construction ensures it is pressure shock resistant, and the inclusion of inflatable seals enhances its operational safety during high-pressure processes. Compliance with GMP standards and the incorporation of CIP/WIP cleaning systems ensure that your processes remain both compliant and efficient, with minimal downtime required for maintenance.

DIOSNA’s dedication to engineering excellence means the CAP 10-80 RC is a future-proof investment, with customization options available to meet specific processing needs and support from a team of skilled engineers ready to assist in integrating this technology into your existing production line.

Benefits

  • Enhances production efficiency with quick bowl exchanges through the Rapid Change system.
  • Ensures space-efficient deployment without compromising capacity, ideal for facilities with height restrictions.
  • Maintains product quality with precise, adaptable spray technology configurations.
  • Reduces downtime and maintenance costs with integrated CIP/WIP cleaning.
  • Guarantees compliance with industry standards through GMP-compliant design.

General


Applications
Coated tablets,Granulates,Pharmaceutical tablets,Powders
End products
Ibuprofen tablets,Herbal extract tablets,Vitamin c granules,Fish oil capsules (coated),Antacid tablets,Protein powder,Multivitamin tablets,Effervescent tablets,Controlled-release tablets,Energy drink powders
Steps before
Purification,Emulsification,Grinding
Steps after
Sterilization,Packing,Tablet Pressing
Input ingredients
granulates,powders,tablets,spray materials
Output ingredients
granulates,powders of all kinds,coated tablets,pellets
Market info
Diosna is known for its expertise in manufacturing industrial dough mixing machines and systems, primarily for the bakery and food industries, showcasing a strong reputation for innovation, quality, and reliable engineered-to-order mixing solutions.

Technical Specifications


Bowl sizes
25
80 L
Typical batches
5 to 36 kg
Automation
Automated processes
Pressure shock resistance
Yes
Installation height
Low
Filter access
Easy access,swivelling centre section
Cleaning concepts
CIP,WIP
Compliance
GMP-compliant loading and unloading

Operating Characteristics


Working mechanism
Fluid bed granulation,drying and Wurster coating
Automation level
Automated processes with recipe storage
Changeover time
Rapid Change principle for flexible use
Batch vs. continuous operation
Batch
CIP/SIP
CIP and WIP cleaning concepts
Cleaning method
CIP / WIP

Material Compatibility


Cleanability
CIP / WIP
Corrosive resistance (e.g. acids)
High
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Biological compatibility
GMP compliant

Product type Characteristics


Granulation method
Spray granulation
Coating method
Wurster coating
Batch size
5 to 36 kg
Container size
25
80 L
Spray technology
Top,bottom,tangential
Space requirement
Low installation height


CIP/SIP
Clean-In-Place (CIP) / Sterilize-In-Place (SIP)

Physical Characteristics


Machine footprint
Low installation height
Bowl size
25
80 L
Batch size
from 5 to 36 kg
Container shape and size
Mobile,exchangeable with various sizes
Feed/discharge method
CIP and WIP compliant loading/unloading

Custom Options


Swing-out filter section
Yes
Space-saving design
Low installation height
Exchangeable product bowls
Rapid Change
Spray technology options
Top,bottom,tangential
Container size flexibility
Yes
