Fluid-bed granulator for top-spray applications

Need precise granulation and drying for sensitive materials? This fluid-bed system ensures uniform particle size and optimal moisture levels, crucial for producing high-quality tablets and capsules in your batch operations.

Processes Granules and Powders through Granulation and Drying

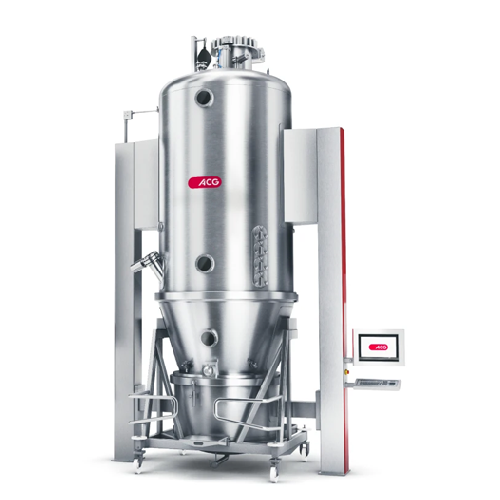

The FBE 125 X•ONE from ACG is a state-of-the-art fluid-bed system designed to meet the demanding needs of pharmaceutical and nutraceutical industries. It excels in granulation and drying processes by incorporating a 12-bar pressure-shock-resistant system with the MOST™ safety concept, FSA-approved in Germany and ATEX-compliant. This ensures operational safety with no mechanical deformation from pressure shock, allowing rapid resumption of production activities.

This system is ideal for producing tablets, capsules, and a variety of powdered supplements, effectively managing batches up to 125 liters. It features X•ONE inflatable seals, providing safety at low pressures, and Quick Action Stop Valves (QASV) to contain explosions within 20 milliseconds. The integration of ACG’s exclusive X•ONE command process control system supports intuitive and secure monitoring, ensuring compliance with GAMP 5 and 21 CFR Part 11 standards.

The FBE 125 X•ONE includes customizable charging and discharging options, which enhance efficiency and minimize changeover times. The machine is also designed with WIP (wash-in-place) systems for granulation trains, reducing downtime and maintaining contamination-free operations. With its ability to process high-speed batches, this equipment provides a reliable solution for manufacturers seeking precision and safety in granulation and drying processes.

Benefits

  • Ensures operational safety by containing explosive events within milliseconds, minimizing risk and downtime.
  • Enhances production efficiency with swift changeovers and high-speed batch processing capabilities.
  • Supports regulatory compliance with ATEX, GAMP 5, and 21 CFR Part 11 standards.
  • Reduces contamination and maintenance efforts with integrated wash-in-place systems.
  • Provides robust process control for granulation and drying, optimizing end-product quality.

General


Applications
Vitamins,Supplements,Nutraceuticals,Pharmaceutical powder,Enzymes,Pharmaceuticals
End products
Protein powders,Multivitamin capsules,Granules,Vitamin c tablets,Controlled-release medication formulations,Digestive enzyme tablets,Herbal extracts,Tablets,Capsules,Dietary supplements
Steps before
High-shear mixing,Powder blending
Steps after
Tablet compression,Capsule filling,Coating
Input ingredients
powder,wet mass,raw materials for granulation
Output ingredients
granules,dried product
Market info
ACG World is known for its expertise in manufacturing pharmaceutical and nutraceutical processing and packaging machinery, offering innovative equipment solutions and maintaining a strong reputation for quality and reliability in the global market.

Technical Specifications


Working Volume
33 l to 168 l
Batch Capacity
125 l
Pressure-Shock Resistance
12-bar
Pressure Shock Handling
No mechanical deformation
Explosion Containment
20 milliseconds
Control System Compliance
ATEX,GAMP 5,21 CFR Part 11
Safety System
MOST™ (Maximum Operator Safety Technology)
Safety at Low Pressure
4.5 bar
Customization Options
Charging,discharging,WIP systems
Integration
Standalone and granulation-train configurations

Operating Characteristics


Batch vs. continuous operation
Batch
Cleaning method
Wash-in-place (WIP)
Automation level
Customised command process control system
Changeover time
Reduced due to customised systems
CIP/SIP
WIP
Energy efficiency
Non-vented,fully contained design
Safety technology
FSA MOST™ concept

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Batch size
Up to 125 liters
Container Type
Machine-integrated vessel
Granulation Type
Top-spray granulation
Drying Type
Wet-mass drying

Physical Characteristics


Tank shape and size
125 l capacity
Discharge method
Customised charging and discharging systems
Control panel type
X•ONE command process control system
Inflatable seals
X•ONE inflatable seals

Custom Options


Pressure-shock resistance
12-bar
Safety technology
Maximum Operator Safety Technology (MOST™)
Seal type
Inflatable seals
Command process control system
X•ONE
Quick Action Stop Valves
Explosion containment within 20 ms
Configuration options
Standalone and granulation-train
Charging,discharging,and WIP systems
Customised options
