Fluid-bed drying and granulation system

Optimize your production line with high-speed batch processing for efficiently drying and granulating powders and granules, essential for precise formulation of capsules and tablets.

Processes and Dries Granules and Powders Efficiently

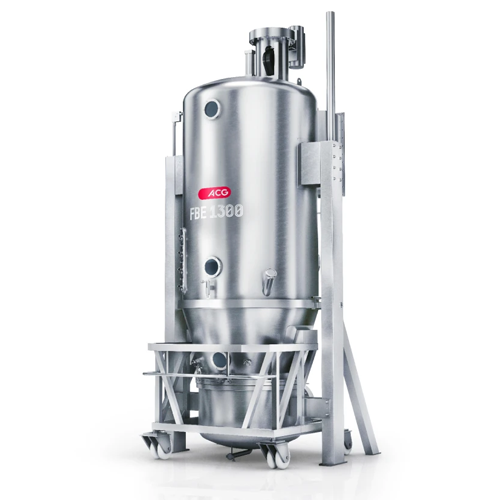

The FBE 1300 from ACG offers pharmaceutical and nutraceutical manufacturers a versatile and reliable fluid bed granulation and drying solution. Designed for batch processing, it facilitates both drying and top-spray granulation with a working capacity of up to 1,300 liters, making it suitable for large-scale production of granules, tablets, and capsules. Its precisely calculated vent and state-of-the-art filter bag shaking system ensures safety and operational efficiency, reducing compressed air consumption while enhancing filtration capacity. The system supports seamless integration into existing production lines with customizable charging, discharging, and wash-in-place options. Compliant with 21 CFR part 11, it provides an audit-friendly environment for regulatory adherence. Crafted from durable materials, it offers robust corrosion resistance and is equipped with an automated PLC control system for effortless process management.

Benefits

  • Enhances production efficiency with streamlined drying and granulation processes.
  • Ensures operator safety with pressure-shock resistant design.
  • Reduces operational costs by minimizing compressed air usage.
  • Supports regulatory compliance with 21 CFR part 11-audit friendliness.
  • Facilitates easy maintenance with wash-in-place integration.

General


Applications
Nutraceuticals,Vitamins,Supplements,Pharmaceuticals
End products
Softgels,Omega-3 fish oil supplements,Multivitamin capsules,Vitamin c tablets,Granules,Herbal supplements,Tablets,Capsules
Steps before
Mixing,Grinding
Steps after
Tablet Pressing,Capsule Filling,Coating
Input ingredients
drying agent,granulation material,wet mass
Output ingredients
granulated product,dried product
Market info
ACG World is known for its expertise in manufacturing pharmaceutical and nutraceutical processing and packaging machinery, offering innovative equipment solutions and maintaining a strong reputation for quality and reliability in the global market.

Technical Specifications


Working volume
335 - 1,288 l
Batch size
Up to 1,300 l
Control system
21 CFR part 11-compliant PC
Vent system
Pressure-shock compliant
Filter system
Advanced filter bag shaking
Automation
Customised charging and discharging
Compliance
21 CFR part 11

Operating Characteristics


Batch vs. continuous operation
Batch
CIP/SIP
CIP 121°C
Automation level
PLC
Cleaning method
WIP (Wash-In-Place)

Material Compatibility


Biological compatibility
Pharmaceutical,nutraceutical
Cleanability
Wash-in-place (WIP) systems
Corrosive resistance (e.g. acids)
Stainless steel components
Density/particle size
Dependent on bulk density

Product type Characteristics


Batch size range
335–1,288 l
Top-spray granulation
Yes
Wet-mass drying
Yes
Hot-melt granulation
Available
Pharmaceutical production
Suited
Nutraceutical production
Suited


21 CFR Part 11 compliant
Yes

Physical Characteristics


Machine footprint
N/A
Tank size
Min
Max batch size
1,300 l
Control panel type
21 CFR part 11-compliant PC
Discharge method
N/A
Customization options
Charging,discharging,WIP systems
Filter bag shaking system
N/A

Custom Options


Control panel type
21 CFR part 11-compliant PC control system
Vent design
Precisely calculated and practically tested
Filter system
State-of-the-art filter bag shaking system
System configurations
Standalone and granulation-train
Charging and discharging systems
Customised
