Flow wrapping for bulk confectionery products

Efficiently orient, feed, and wrap bulk confectionery items with seamless integration, ensuring gentle handling and high-speed output for diverse product shapes and sizes.

Wraps and Feeds Bulk Confectionery Products

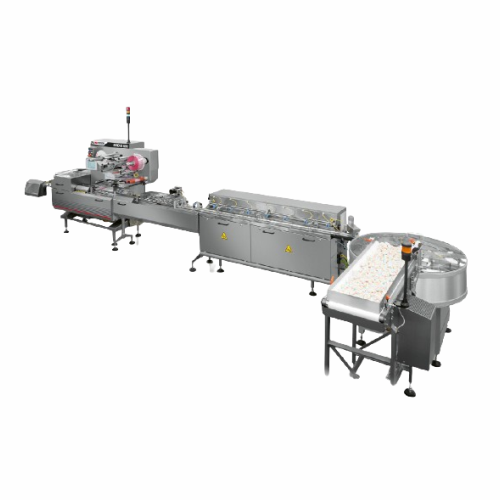

The EURO 88 HSF8 with Disc Feeder, engineered by IMA Eurosicma, offers a precise solution for packaging small confectionery items such as hard candies, chocolate bites, and gummy bears. This system utilizes a centrifugal disc to align products in a single lane before advancing them through a servo-driven belt system, ensuring seamless, contact-less handling. Capable of operating at a throughput of up to 600 pieces per minute, the system integrates smoothly into high-speed, continuous production lines. Its automated features, including timing and feeding, reduce manual intervention while maintaining gentle product treatment. The machine supports easy, tool-free maintenance with auto-tensioning and auto-centering belt systems, ideal for manufacturers seeking reliability and cleanliness.

Benefits

  • Enhances production efficiency with high-speed, precise product orienting and wrapping.
  • Minimizes product damage with a gentle, contact-less handling process.
  • Simplifies maintenance with tool-free cleaning and automated belt adjustments.
  • Increases versatility, accommodating diverse product shapes and sizes with a flexible disc feeder.
  • Promotes consistent output quality with servo-driven operations that ensure precise timing.

General


Applications
Sweets,Confectionery,Snacks
End products
Gummy bears,Hard candies,Chocolate bites,Toffees,Jelly beans,Mints,Chewing gum
Steps before
Bulk Loading,Product Orientation
Steps after
Packing,Sealing
Input ingredients
small confectionery products,bulk products
Output ingredients
wrapped confectionery items,package-ready products
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Automation
Flow wrapper with integrated feeder
Output Speed
Up to 600 ppm
Handling Method
Gentle and contact-less
Belt System
8 independently servo-driven belts
Film Reel Width
350/500 (opt) /650 (box motion)
Inner Diameter of Film Reel
70-79 mm
Max External Diameter of Film Reel
380 mm
Max Weight of Film Reel
25 kg
Product Size Range (Length)
30–160 mm
Product Size Range (Width)
15–100 mm
Product Size Range (Thickness)
5–60 mm

Operating Characteristics


Working mechanism
Flow wrapping with disc orientating
Integrated steps
Feeding and wrapping in one system
Product handling
Gentle and pressure-less
Automation level
Servo-driven automation
Output rate
Up to 600 ppm
Cleaning method
Tool-free
Auto-tensioning and auto-centering belts
Batch vs. continuous operation
Continuous

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product handling
Gentle
Product orientation
Short side leading
Product size range
Length
Packaging type
Flow wrapping
Product type compatibility
Small confectionery items
Product shape compatibility
Various shapes and dimensions
Output capacity
Up to 600 ppm

Physical Characteristics


Feed Method
In line integrated feeder
Discharge Method
Single lane output
Film Reel Dimensions
Length
Belt System
8 independently servo-driven belts
Product Size Range
Length
Output Capacity
Up to 600 ppm

Custom Options


Integration possibilities
Easy and tool-free cleaning,auto-tensioning and auto-centering belt systems
