Flat belt product transfer conveyor for food processing

Efficiently streamline your production line with a hygienically designed conveyor, ideal for ensuring precise tray positioning and smooth product transfer in complex assembly processes.

Transfers and Positions Products with Precision and Hygiene

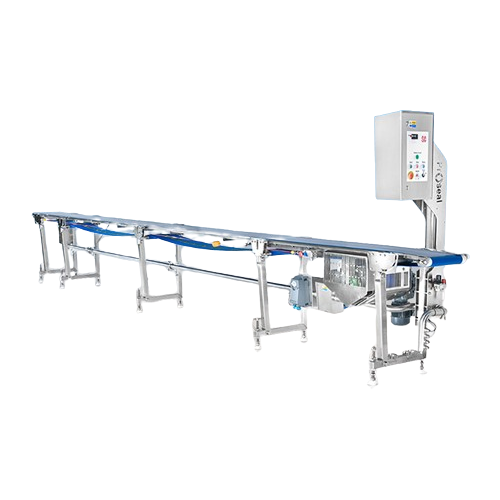

The Proseal SC Conveyor is a modular, flat belt product assembly conveyor designed for precision and efficiency in product transfer and positioning. Perfectly suited for a variety of industries including food, pharmaceutical, and personal care, this conveyor facilitates the production of items ranging from fruit purees and baked goods to vitamin tablets and shampoo bottles. Constructed from durable stainless steel, its hygienic design includes food-safe polyurethane belts and wash-down protection, ensuring both safety and ease of maintenance. With customizable lengths ranging from 2 to 20 meters, the SC Conveyor integrates seamlessly into your production line, offering optional automated tray de-nesting and auxiliary equipment connections. Its cantilevered design and integrated belt lifters simplify cleaning and maintenance, allowing quick access and belt removal to minimize downtime. Sales and support options such as lease and rental enhance its adaptability to your operational needs.

Benefits

  • Enhances production efficiency with precise tray positioning and product transfer.
  • Simplifies maintenance through its quick-release belt design, minimizing downtime.
  • Ensures compliance with hygiene standards, reducing risk of contamination.
  • Integrates seamlessly with auxiliary equipment to streamline operations.
  • Offers flexibility in operation with customizable configurations to fit specific production needs.

General


Applications
Sauces,Bakery,Oils,Dairy,Seafood,Soups,Dairy alternatives,Seasonings,Personal care,Ready meals,Pet food,Fruits,Nuts,Baby food,Confectionery,Meat,Plant-based protein,Dressings,Poultry,Pharmaceutical
End products
Tomato soup cans,Cheddar cheese slices,Compote cups,Olive oil bottles,Vitamin tablets,Baked muffins,Chocolate truffles,Pre-packaged chicken breasts,Dog food pellets,Ground beef patties,Frozen shrimp bags,Tofu blocks,Herb seasoning packets,Caesar salad dressings,Roasted almonds,Almond milk cartons,Shampoo bottles,Soy sauce sachets,Microwavable lasagna trays,Fruit purees
Steps before
Tray de-nesting,Weighing,Volumetric filling
Steps after
Packaging,Sealing,Tray sealing
Input ingredients
volumetric fillers,tray de-nesters
Output ingredients
assembled trays,packaged products
Market info
JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.

Technical Specifications


Length
2m to 20m
Material
Stainless Steel
Belt Type
Flat Belt
Speed Control
Adjustable
Auxiliary Equipment Control
Full Control System
Tray Positioning Indicator
White Lines (Optional)
Belt Removal
Quick Release Design

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
Cleaning method
Easy-clean belt with quick release
Changeover time
Quick release design
Energy efficiency
Optimized for low power usage
Maintenance friendly
Robust construction

Physical Characteristics


Machine footprint
Customizable length from 2m to 20m
Belt type
Flat belt
Construction material
Stainless steel
Belt removal method
Cantilevered quick release
Design type
Modular
Cleaning access
Integrated belt lifters for easy cleaning
Belt feature
Food safe polyurethane
Optional white indicator lines
Control system type
Full control system for auxiliary equipment
Auxiliary equipment compatibility
Volumetric fillers,tray de-nesters,weighing stations
Cleaning capability
Hygienic design,easy-clean belt
Speed control
Yes

Custom Options


Control system integration
Full system for auxiliary equipment
Tray positioning
White indicator lines option
Belt type
Food safe polyurethane with optional features
Belt removal
Cantilevered quick release design
Cleaning access
Integrated belt lifters for easy cleaning
Length
2m to 20m,customizable
De-nesting
Automatic tray de-nesting option
Auxiliary equipment outlets
Integrated air and electrical outlets
