Flake crusher for hygroscopic substances and lumped salts

Efficiently turn fragile, aggregated materials into manageable granules, ensuring streamlined processing by reducing handling challenges associated with hygroscopic substances and lumped salts.

Crushes and Disagglomerates Bulk Materials

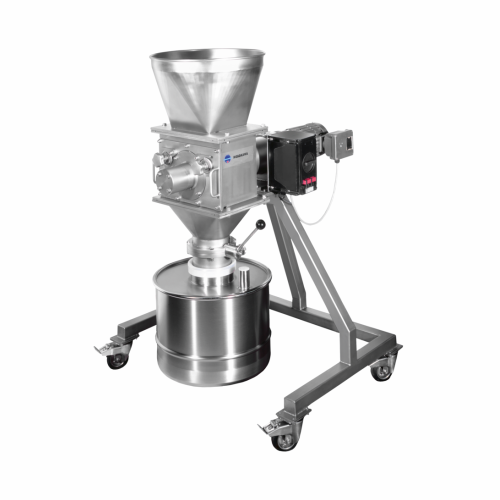

The Flake Crusher AFC from Hosokawa Alpine is an engineered solution for the crushing and disagglomerating of bulk materials in various industries, including chemicals, food, minerals, and pharmaceuticals. Featuring a horizontal rotor design, it ensures gentle processing of brittle and hygroscopic substances. The equipment is particularly suited for transforming material flake forms into granules, crucial for applications like pharmaceutical tablets, ceramic tiles, and cocoa powder production.

With a circumferential speed of around 1 m/s, the Flake Crusher AFC is adept at handling hazardous dust areas safely. Its throughput ranges from 50 to 1,500 kg/h across multiple sizes, supported by a robust construction in stainless steel, ensuring durability and compliance with hygiene standards. The machine’s modular design allows for easy screen changes and maintenance, with options for CIP/WIP to minimize downtime. Customization, such as inerting and variable discharge configurations, ensures precise adaptation to specific process requirements.

Benefits

  • Ensures product uniformity by effectively breaking down large agglomerates.
  • Minimizes operational downtime with quick and easy screen changes.
  • Enhances safety in hazardous areas with robust design and inerting options.
  • Reduces contamination risks with stainless steel construction and CIP/WIP systems.
  • Adapts easily to process needs through customizable configurations and throughput capacities.

General


Applications
Dishwashing powder,Lithium-ion batteries,Minerals,Sweeteners,Talc,Chemicals,Food,Fertiliser,Medicinal herbs,Luxury foods,Pharma,Spices,Powder processing,Tea,Titanium dioxide,Industrial wax,Sugar,Metals,Cocoa processing,Technical ceramics,Calcium carbonate,Recycling,Hard minerals
End products
Cocoa powder,Cornflakes,Pharmaceutical tablets,Luxury chocolate,Lithium-ion battery electrodes,Ceramic tiles,Industrial wax beads,Sweetener packs,Refined sugar,Dishwashing detergent granules,Granola,Spice blends,Talcum powder,Calcium carbonate fillers,Titanium dioxide pigments,Medicated teas
Steps before
Drying,Mixing
Steps after
Granulation,Recycling,Packing,Disagglomeration
Input ingredients
lumped salts,hygroscopic substances,flakes,drying and mixing agglomerates,tablets
Output ingredients
granulate,disagglomerated materials,dust-free crushing
Market info
Hosokawa Alpine is known for its expertise in manufacturing advanced process equipment and systems for powder and particle processing technology. It has a strong reputation for innovation, quality engineering, and customer-focused solutions in various industries.

Technical Specifications


Crushing speed
1 m/s
Screen netting size
0.5 - 10 mm
Material construction
Stainless steel
Drive unit power
0.75 - 2.2 kW
Minimum throughput
50 kg/h
Maximum throughput
1,500 kg/h

Operating Characteristics


Working mechanism
Oscillating or rotating rotor
Typical circumferential speed
1 m/s
Batch vs. continuous operation
Batch
Automation level
Manual or semi-automatic
Cleaning method
Easy disassembly and assembly
Screen change
Easy,quick screen change

Material Compatibility


Abrasion resistance
Yes
Cleanability
Easy cleaning
Corrosive resistance (e.g. acids)
Stainless steel construction
Density/particle size
Suitable for various densities and particle sizes

Product type Characteristics


Agglomeration risk
Disagglomeration tasks


CE marking
Yes
FDA materials
Stainless steel
ATEX certification
Applicable in hazardous dust areas

Physical Characteristics


Discharge method
Screen netting
Machine sizes
AFC200-600
Screen size
0.5 - 10 mm

Custom Options


Screen netting size
0.5 - 10 mm
Screen change and cleaning
Easy,quick
Disassembly and assembly
Easy
CIP/WIP available
Yes
Inlet chute with protective grid
Manual feed unit
Intake and discharge funnel
Optional
Seals with gap air flushing
Available
Inerting
Can be made inert
Frame specification
Lifting column,slewing mechanism,rollers
