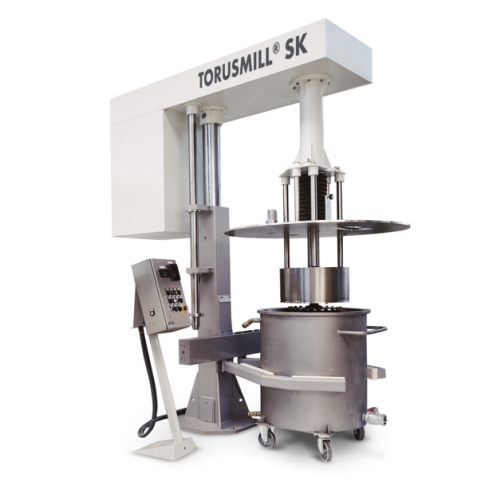

Explosion-proof basket mill for large scale production

Enhance your production line with an explosion-proof basket mill that delivers rapid, precise grinding, ensuring high-quality dispersion of pigments and additives in demanding operational environments.

Disperses and Mixes Viscous Liquid Products

The DISPERMAT® SC4 dissolver from VMA-GETZMANN is a robust solution for efficiently dispersing and mixing medium to high-viscosity liquids in industrial applications. It employs a powerful direct-drive system that ensures thorough mixing in batch processes. Particularly suitable for producing car paints, wood varnishes, and structural adhesives, the SC4 can handle products from 30 to 600 liters with its high power range of 15–22 kW. The dissolver integrates seamlessly into production lines with its PLC-controlled automation and supports remote monitoring, enhancing operational efficiency. It offers material options to prevent corrosion, making it compatible with various chemical environments. Additionally, the design allows for easy integration with existing systems, and its compact footprint facilitates space-efficient setup. This equipment is engineered to meet stringent safety and performance standards, providing reliable operation in demanding industrial settings.

Benefits

  • Enhances product uniformity, ensuring high-quality output with every batch.
  • Minimizes production downtime with efficient, quick setup and easy operation.
  • Lowers energy costs through optimized motor performance and variable-speed control.
  • Offers corrosion resistance, extending equipment lifespan in chemical applications.
  • Supports versatile production needs with adaptable integration into existing systems.

General


Applications
Ceramics,Microbiology,Printing inks,Agrochemicals,Construction chemistry,Coatings,Cosmetics,Additives,Adhesives,Plastics,Varnishes,Pigments,Pharmacy,Paints,Electronics
End products
Uv-curable inks,Wood varnish,Polycarbonate sheets,Epoxy resins,Herbicide formulations,Structural adhesives,Porcelain dinner plates,Skin moisturizers,Anti-corrosion coatings,Car paints,Titanium dioxide pigment,Bioengineered vaccines,Aspirin tablets,Smartphone touchscreen coatings,Plasticizers
Steps before
Purification,Emulsification,Pre-mixing,Grinding,Heating,Material preparation,Dispersion
Steps after
Cooling,Coating,Packing,Quality control,Sterilization,Filling,Tablet pressing
Input ingredients
raw materials,pigments,binders,solvents,additives,filler materials,anode materials,cathode materials,slurries,ceramic pigments,technical ceramics,adhesives ingredients,cosmetic ingredients,food dyes,food additives,silicones,nanotubes,carbon black,spice particles
Output ingredients
dispersed pigments,filler compounds,coatings,paints,varnishes,emulsions,homogenized slurries,anode and cathode film coatings,ceramic formations,adhesive products,cosmetic and body care products,food products,polished surfaces,conductive inks,ceramic finishes,nanomaterial suspensions,finished silicones,spice pastes
Market info
VMA-Getzmann is renowned for manufacturing high-quality dispersing, mixing, and milling equipment, particularly for the chemical, coatings, and inks industries, specializing in engineered-to-order solutions that emphasize innovation, reliability, and technical excellence.

Technical Specifications


Power
15 – 55 kW
Container Capacity
30 – 2500 litres
Control Type
CN / C / SC / PLC
Speed
100 – 650 rpm
Product Capacity (per hour)
25 - 1000 litres/hour
ATEX Certification
II 2G Ex h IIB T3 Gb
Height Adjustment
Hydraulic
Cooling System
Double walled milling basket with cooling liquid
Optional Features
LED lighting,PT100 temperature sensor,Liquiphant level switch
Software
WINDISP© 7
Process Control
Repeatable dispersion results
Safety
TÜV Certified Safety Module (EN ISO 13849-1)
Heat Generation Control
Spirally guided cooling liquid

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Agglomeration risk
Possible in dispersions
Container type
Double-walled for temperature control
Viscosity
Low to medium viscosity products
Filling purpose
Uniform dispersion in container
Batch vs. continuous operation
Batch process


ATEX certification
II 2G Ex h IIB T3 Gb

Physical Characteristics


Machine footprint
140 x 400 x 310 cm
Basket shape
Double walled for cooling/heating
Discharge method
Integrated pump wheel
Cooling medium
Cooling liquid

Custom Options


Control panel type
CN / C / SC / PLC
Height Adjustment
Hydraulic
Integrated Cover Options
LED lighting,PT100 temperature sensor,Liquiphant level switch
Container Compatibility
500 - 2500 litres
Milling System Material
Ceramic (ZrO2 or SiSiC)
Cooling and Heating Systems
Double walled milling basket
Process Control Technology
DISPERWHEEL®,WINDISP© 7
Safety Module
DISPERSAFE®
