Entry-level food packaging machine for pillow bags

Achieve space-saving packaging versatility with a machine designed for bagging a wide array of bulk products efficiently, offering seamless integration and precise control in your production line.

Efficiently Packs and Seals Products in Pillow Bags

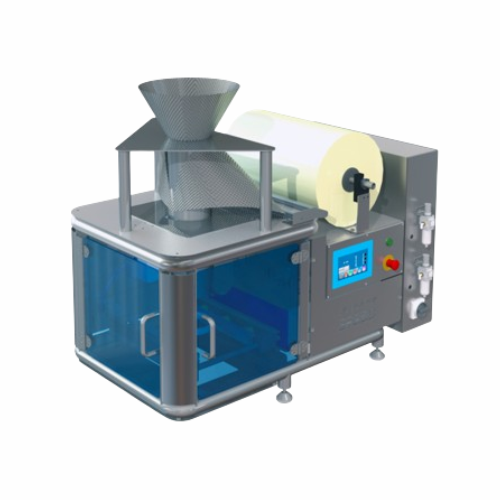

The EASY Packaging Machine from KRONEN’s partner GKS Packaging B.V. efficiently packages a wide range of products, including vegetables, fruits, cut salad, bakery items, candies, and non-food materials, into customizable pillow bags up to 250 mm wide. The machine’s compact and modular design allows for easy integration into existing production lines, whether manual or automated. It features a user-friendly 7-inch touch screen for simple operation and a servo-driven film transport system for precise bag length control. The inclusion of a modified atmosphere packing (MAP) option ensures extended product shelf life by reducing oxygen content. Capable of producing up to 20 bags per minute, the machine supports varied film types, making it versatile for diverse industry applications. Maintenance is streamlined through its open construction and modular components, allowing for quick and cost-effective part replacements.

Benefits

  • Enhances production flexibility with easy mobility and integration into various systems.
  • Minimizes downtime with rapid film change and modular maintenance design.
  • Extends product shelf life using modified atmosphere packing (MAP).
  • Ensures precise packaging results with servo-driven film transport.
  • Simplifies operation and training with an intuitive 7-inch touch screen interface.

General


Applications
Candy,Non-food products,Fruits,Cut salad products,Sweets,Vegetables,Bakery products
End products
Snack-sized candy pouches,Packaged bread rolls,Bagged baby carrots,Hardware in pillow bags like screws or nails,Sliced apples in pillow bags,Pillow packed chocolate balls,Pre-mixed salad bags
Steps before
Weighing,Mixing,Conveying
Steps after
Boxing,Labeling,Storage
Input ingredients
vegetables,fruits,cut salad products,bakery products,sweets,candy,non-food products,bulk materials
Output ingredients
pillow bags,packaged fruits,packaged vegetables,packaged salad products,packaged bakery products,packaged sweets,packaged candy,packaged non-food products
Market info
KRONEN is known for manufacturing industrial food processing equipment, specializing in washing, cutting, peeling, and packaging machinery, recognized for innovation, high quality, and efficiency in automated food processing solutions.

Technical Specifications


Speed
up to 20 bags/minute
Bag Width
Max. 250 mm
Bag Length
Unlimited
Electrical Power
1.2 kW
Voltage
230 V
Frequency
50 Hz
Working Pressure
6 bar
Air Consumption
150 NL/min
Dimensions
1250 x 724 x 1085 mm
Film Width
max. 250 mm
Film Thickness
25 - 120 μ
Film Roll Inner Diameter
76 mm (3”)
Film Roll Outer Diameter
320 mm
Bag Length per Sealing Process
max. 235 mm

Operating Characteristics


Film change speed
Rapid
Mobility
Equipped with casters
Integration capability
Manual or automatic filling
Automation level
PLC-controlled
Bag length control
Servo-driven precision
Maintenance requirement
Fast modular design
Flexibility in usage location
Flexible and mobile
User-friendliness
User-friendly interface
Cleaning method
Easy to clean design
Bag type produced
Pillow bags

Material Compatibility


Cleanability
Easy to clean,hygienic design
Corrosive resistance (e.g. acids)
Exchangeable seal jaws
Processing of film types
PE,PP,laminate films
Density/particle size
Designed for bulk products like vegetables and fruits

Physical Characteristics


Compact footprint
Yes
Machine dimensions
1250 x 724 x 1085 mm
Bag size
Max. width 250 mm
Bag length
Unlimited
Film roll outer diameter
320 mm
Film roll inner diameter
76 mm (3")
Film thickness
25 - 120 μ
Feed/Discharge method
Casters for mobility

Custom Options


Control panel type
7-inch full-color touch screen
Integration possibilities
Manual and automatic filling
Modular design
Allows component replacement and retrofitting
Connection for gas flushing (MAP)
Gas mixture addition for modified atmosphere packing
Various weighing and dosing systems
Adaptation to specific product requirements
Processing of all conventional film types
PE,PP,laminate films
Vibration unit
For even distribution of product in packaging
Rotary table
Efficient workflow for bag packing
Thermal transfer printer
Direct printing on packaging film
