Efficient powder and granulate flight conveyors
Elevate your production efficiency with our cutting-edge flight conveyors, designed to seamlessly transport powders and granulates, ensuring precise handling even under challenging conditions. Experience reliable and hygienic conveying for high-demand operations.
Conveys and Discharges Powders and Granulates

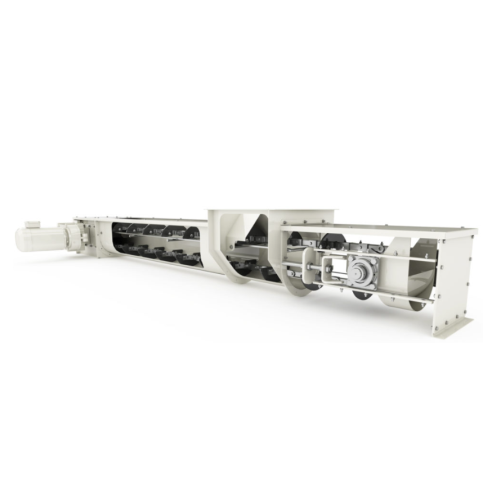

The Flight Conveyor from Ottevanger Milling Engineers is designed to meet stringent hygienic requirements for transporting powders and granulates effectively. It operates using a fully enclosed, U-shaped trough made of S235 steel, ensuring product integrity through flexible coupling and standard product overflow detection. Ideal for applications in feed mills, grain processing, and food production, it efficiently handles a wide range of materials, including flour, cornmeal, and animal feed pellets, at capacities of up to 400 m³/h and inclines up to 40°. Available in stainless steel (AISI304) and galvanized options, it supports high-speed continuous operations and integrates seamlessly into existing production lines. The conveyor features geared drive units, chain tensioners, and adjustable guide strips for precise material handling. Engineered for safety and compliance, it can be fitted with ATEX22 zoned drive-units, speed sensors, and intermediate outlets, ensuring reliable and secure processing across diverse industrial settings.
Benefits
- Enhances operational efficiency with high-speed, continuous conveying capabilities.
- Reduces maintenance downtime with robust construction and simple design.
- Supports hygienic processing with a fully enclosed system, preventing contamination.
- Increases versatility for various industries with corrosion-resistant material options.
- Facilitates integration with existing systems, minimizing installation disruptions.
- Applications
- Raw materials,Pet food,Soybean,Grain,Granulates,Aqua feed,Powders,Compound feed
- End products
- Protein concentrate,Pet kibble,Granulated sugar,Cornmeal,Flour,Grain mix,Dried milk powder,Animal feed pellets,Fish feed pellets,Soybean meal
- Steps before
- Dosing,Grinding,Pre-cleaning
- Steps after
- Pelleting,Drying,Cooling,Coating
- Input ingredients
- powders,granulates
- Output ingredients
- conveyed powders,conveyed granulates
- Market info
- Ottevanger Milling Engineers is renowned for designing and manufacturing innovative milling equipment and complete production lines for the grain processing industry, including feed mills, flour mills, and biomass processing, with a reputation for quality, efficiency, and customized solutions.
- Capacity
- 30–400 m³/h
- Inclined Conveying Angle
- Up to 40°
- Material
- S235 steel
- Material (Special Execution)
- AISI304 / Galvanized S235 steel
- Design
- U-shaped,fully enclosed
- Automation
- Geared drive units,Flexible coupling
- Product Overflow Detection
- Standard
- Chain Tensioner
- Yes
- Guide Strips
- For the flights
- Special Executions
- Double the amount of flights,Bombdoor outlets,Speed sensor,Intermediate outlets
- Compliance
- ATEX22 zoned drive-units
- Inclined Conveying
- Up to 40°
- Conveying Capacity
- 30 to 400 m³/h
- Automation Level
- Standard
- Cleaning Method
- Manual / Custom
- Operational Mode
- Enclosed design
- Cleanability
- High Hygienic Standards
- Density/particle size
- Variety of powders and granulates
- Abrasion resistance
- Suitable for various granulates
- Corrosive resistance (e.g. acids)
- AISI304,Galvanized S235 steel
- ATEX certification
- ATEX22 zoned drive-units
- Conveyor shape and size
- U-shaped,fully enclosed
- Material
- S235 steel
- Incline angle
- Up to 40°
- Capacity
- 30 up to 400 m³/h
- Special Executions
- AISI304 or galvanized S235 steel
- Discharge method
- Bombdoor outlets
- Material execution
- AISI304 / S235 steel
- Flight design
- HMPE flights / Double flights
- Outlets
- Bombdoor / Intermediate outlets
- Inclination angle
- Up to 40°
- Drive unit
- ATEX22 zoned
- Finish
- Primer and paint / Galvanized
- Speed sensor
- Included
- Chain tensioner
- Included
