Double seat valve for hygienic processing

Eliminate cross-contamination risks and enhance efficiency with a modular valve solution designed for seamless separation and cleaning in high-pressure liquid processing.

Prevents Cross-Contamination in Hygienic Processing

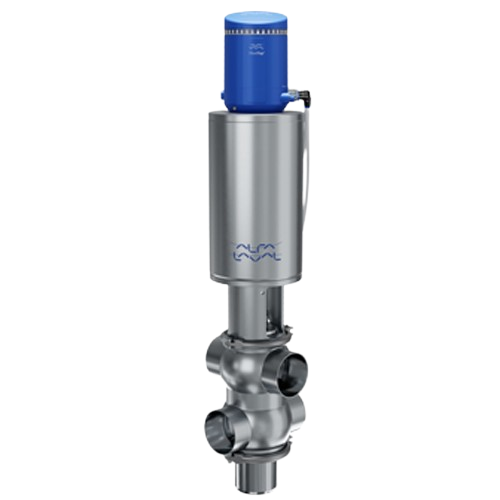

The Unique Mixproof Process Valve from Alfa Laval is a hygienic, double seat valve designed for dairy, food, and beverage producers seeking to prevent cross-contamination. This valve features a normally closed design with dual plugs and seals, ensuring separation of liquids and leakage detection. Ideal for high-pressure applications and automated, remote-controlled operations, this valve integrates seamlessly into continuous processing lines. Its modular design supports various applications and capacities, while compliance with FDA and 3A standards ensures adherence to hygienic requirements. Maintenance is simplified through a maintenance-free actuator and proven seal technology, and integration with Alfa Laval’s ThinkTop unit can save up to 90% in water and cleaning media, enhancing both operational efficiency and environmental sustainability.

Benefits

  • Prevents cross-contamination, ensuring product safety and quality.
  • Minimizes environmental impact with up to 90% savings in water and cleaning media.
  • Enhances production reliability with durable, high-pressure resistance.
  • Simplifies maintenance with extended intervals due to a maintenance-free actuator.
  • Adapts easily to varying production needs with modular construction and capacity options.

General


Applications
Food,Beverages,Dairy
End products
Wine,Milk,Cheese,Yogurt,Soup,Ice cream,Juice,Chocolate,Soft drinks,Beer
Steps before
Product handling,System preparation,Pipeline configuration
Steps after
Cleaning-in-Place (CIP),Product safety verification,Maintenance check
Input ingredients
process fluids,dairy products,food ingredients,beverages
Output ingredients
processed products,spillage-free product,clean product flow
Market info
Alfa Laval is renowned for its expertise in heat transfer, separation, and fluid handling technologies, providing innovative, energy-efficient engineered-to-order solutions for various industries including food, marine, and energy.

Technical Specifications


Valve Type
Double seat mixproof
Material Standards
FDA,3A
Pressure Handling
High pressure
Operation
Normally closed (NC)
Control Method
Remote compressed air
Sizes Available
Various sizes
Cleaning Efficiency
Spillage-free
CIP Media Savings
Up to 90%
Actuation Type
Maintenance-free actuator
Seal Technology
Defined compression

Operating Characteristics


Working mechanism
Normally closed,air-operated valve
Integrated steps
Leakage detection chamber
CIP/SIP
CIP with Alfa Laval ThinkTop
Batch vs. continuous operation
Batch / Inline
Automation level
Compatible with Alfa Laval ThinkTop

Physical Characteristics


Valve type
Double seat mixproof valve
Footprint
Compact
Size Availability
Various sizes
Design
Modular
Seat lift function
Yes
Operation Method
Normally Closed (NC)

Custom Options


Control panel type
Alfa Laval ThinkTop valve control unit
Footprint
Compact,modular design
Valve size
Available in various sizes
