Digital torque viscometer for starch analysis

Experience rapid and precise starch gelatinization analysis with a compact, high-speed viscometer optimized for real-time monitoring and substance insight, perfect for innovative product development and quality control.

Performs Real-Time Viscosity and Rheological Analysis

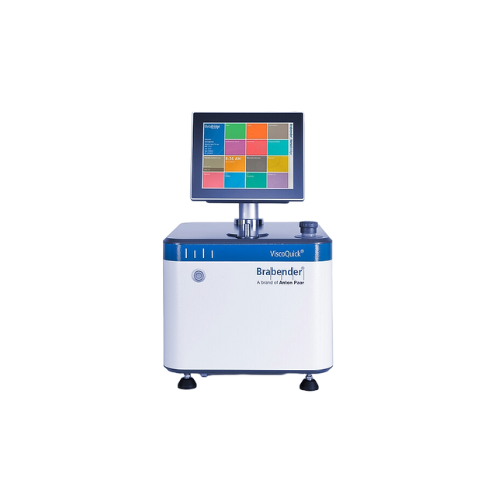

The Brabender ViscoQuick from Anton Paar is a digital torque viscometer that accelerates viscosity measurement with its integrated PC and touchscreen design. Specially engineered for food and beverage sectors, this equipment achieves rapid heating and cooling rates of +20°C and -15°C per minute, allowing starch and flour gelatinization analysis in under 10 minutes. Its unique cool-down capability supports applications requiring temperatures below 20°C, accommodating ready-to-eat food products like cheese spread and plant-based burger patties. Designed for seamless integration into R&D and processing environments, the ViscoQuick connects via browser-based MetaBridge software, enabling real-time data export and insights sharing. This system is energy-efficient with a precise Peltier temperature control system, optimizing space and reducing energy consumption. Available with support for various flour and starch measurement languages, including Brabender Units and universal metrics, this compact unit offers robust adaptability for research and development departments focusing on products ranging from granules to liquid slurries. The system’s design includes a 10.4″ touchscreen interface, enhancing user operability while maintaining strict compliance with industry standards.

Benefits

  • Accelerates testing processes, reducing analysis time by up to 25%.
  • Enhances product quality through real-time monitoring and dosing adjustments.
  • Minimizes energy use with optimized integrated temperature control.
  • Facilitates remote data access and sharing, improving collaboration and decision-making.
  • Operates efficiently in diverse temperature conditions, supporting a wide range of food and beverage applications.

General


Applications
Meat analogues,Ketchup,Sugar,Pulses,Dairy products,Grain,Plant-based food,Flour,Starch,Vegan drinks,Chocolate,Beer,Fabs (flavored alcoholic beverages)
End products
Brown sugar,Craft beer,Rye bread,Cake flour,Chickpea flour,Almond milk,Plant-based burger patties,Dark chocolate,Flavored cider,Modified starches,Cheese spread,Tomato ketchup,Tofu
Steps before
Preparation of starch or flour samples,Dissolving additives in water,Temperature setting
Steps after
Data analysis,Reporting results,Cleaning and maintenance
Input ingredients
flour,starch,substances to dose,distilled water,sample volume
Output ingredients
rheological characteristics,viscosity properties,starch quality insights,gel formation data,real-time insights
Market info
Brabender is renowned for producing high-quality, engineered-to-order lab equipment for material testing, particularly in food and plastics industries, specializing in precision instruments for measuring, preparation, and processing.

Technical Specifications


Viscosity range
30 cP/mPas to 50,0000 cP/mPas
Speed
0 min-1 to 500 min-1
Temperature range
10 °C to 110 °C
Heating rate
Up to 20.0 °C / min
Cooling rate
Up to 15.0 °C / min
Sample volume
5 g to 15 g
Distilled water volume
100 mL to 115 mL
Touch screen
10.4" (1024 × 768 px),fixed
Dimensions
430 mm x 640 mm x 350 mm (W x H x D)
Weight
Approx. 36 kg

Operating Characteristics


Automation level
Integrated PC and touchscreen control
Batch vs. continuous operation
Batch
Real-time monitoring and dosing
Enabled
Compact design
Integrated temperature control system

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
430 mm x 640 mm x 350 mm (W x H x D)
Control panel type
Touch screen 10.4" (1024 × 768 px),fixed
Weight
Approx. 36 kg
Compact footprint
Integrated with a PC and temperature control

Custom Options


Control panel type
Touchscreen
Integration possibilities
MetaBridge software
Compact footprint
Integrated PC and temperature control
