Development fluid bed system for feasibility studies

Explore precise granulation and coating capabilities for small batch experiments, perfect for fine-tuning pharmaceutical formulations and enhancing R&D effectiveness.

Processes Granulation, Coating, and Drying

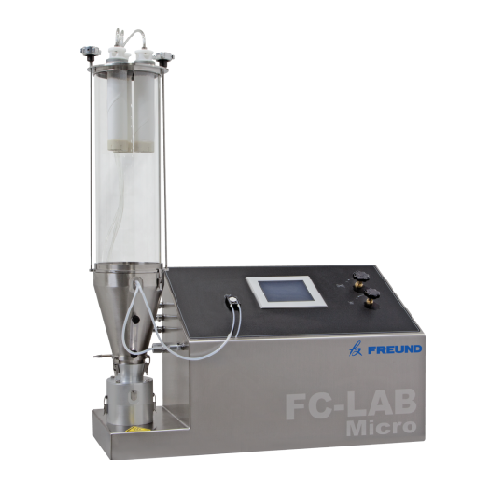

The FC-LAB Micro FLO-COATER® by Freund-Vector is a self-contained benchtop fluid bed system designed for precision and flexibility in laboratory settings. This system supports top spray granulation, bottom spray coating, and drying for batch processing of pharmaceutical tablets, nutraceuticals, and fine chemical powders. With processing capacities ranging from 20g to 600g, it accommodates development phases, offering features like a patented Wurster accelerator for reduced process times and an optional Nano Container for volumes as low as 5g. Smart-Safe™ containment options and quick changeover design ensure user safety and ease of operation. Its PLC-controlled system with USB data collection and compliance with UL, CE, NFPA, and CSA standards facilitate seamless integration into R&D workflows. The FC-LAB Micro excels in energy efficiency and material versatility, providing reliable performance for diverse operational needs.

Benefits

  • Enables precise formulation control, enhancing product consistency for R&D applications.
  • Reduces processing time with the Wurster accelerator, increasing productivity.
  • Supports versatile batch sizes without interchangeable inserts, minimizing setup time.
  • Offers easy cleaning and maintenance with a tool-free changeover design.
  • Adapts to various processing needs with optional safety containment features.

General


Applications
Fine chemicals,Nutraceuticals,Coating materials,Powder processing,Pharmaceuticals
End products
Fine chemical powders,Pre-mixed nutraceutical blends,Pharmaceutical tablets,Active pharmaceutical ingredients (apis),Controlled-release pellets,Vitamin supplements,Film-coated tablets,Enteric-coated tablets,Polymer coatings,Granulated feed additives
Steps before
Material Preparation,Ingredient Weighing,Pre-Mixing
Steps after
Sterilization,Tablet Pressing,Packaging
Input ingredients
aqueous solutions,solvent solutions,granulation batches,coating solutions
Output ingredients
granulated products,coated products,dried products
Market info
Freund is known for its expertise in granulation and coating technology, supplying high-quality industrial equipment for pharmaceutical, chemical, and food industries. Renowned for innovation and reliability, Freund consistently delivers engineered-to-order solutions tailored to client needs.

Technical Specifications


Process Type
Top spray granulation,Bottom spray coating,Drying
Batch Size
20g to 600g
Container Capacity
40mL - 1,200mL
Inlet Air Temperature
100°C (maximum)
Airflow Control
Validatable process control
Automation
Color Touchscreen Control System
Data Collection
USB Data Collection Port
Changeover Time
Quick changeover design,No tools required
Safety Standards
Class 1,Division 2 and ATEX Zone 2
Design Standards
UL,CE,NFPA,CSA
Optional Features
SS Filter Chamber,Smart-Safe™ Containment,Nano Container
Peristaltic Pump
Integrated
Filter Chamber Sizes
Two glass chambers

Operating Characteristics


Working mechanism
Fluid bed,top spray granulation,bottom spray coating
Batch vs. continuous operation
Batch
Automation level
Validatable process control,touchscreen control system
Changeover time
No tools required for changeover/cleaning

Material Compatibility


Cleanability
Easy to clean with no tools required
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


ATEX certification
Zone 2

Physical Characteristics


Machine footprint
Benchtop
Product Container Range
40mL - 1,200mL
Batch size
20g - 600g
Material configuration
Glass Chambers
Portability
Portable,Self-Contained
Filter Chamber Sizes
Standard and Extended Heights
Nano Container Capacity
5g
Control Panel
Color Touchscreen Control System
Electrical Connections
Integrated,Easy Setup
Compressed Air Connections
Integrated,Easy Setup
Removable Components
Spray Gun,Product Screens

Custom Options


Control panel type
Color Touchscreen Control System
Integration possibilities
USB Data Collection Port
Changeover design
Quick Changeover Design
