Customizable sanitary conveyor systems

Efficiently transport and handle diverse products with a sanitary conveyor system designed for seamless integration into high-speed production lines, ensuring reliable material flow and minimized downtime.

Transports and Organizes Bottles and Products Efficiently

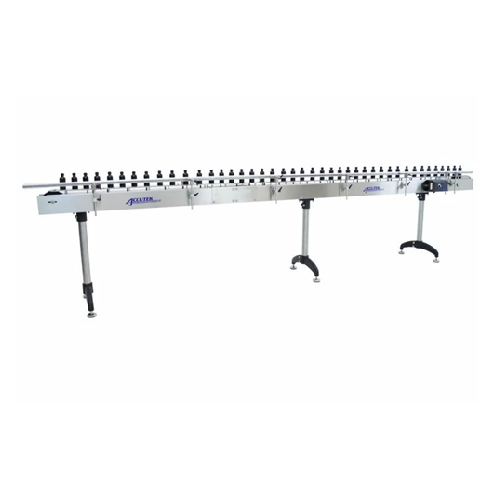

The AccuVeyor 4 from Biner Ellison is a versatile sanitary conveyor designed to meet the stringent demands of industries like food and beverage, pharmaceuticals, and consumer goods. Built with robust stainless steel or Poly Delrin construction, it offers unmatched flexibility through customizable lengths and widths, with standard sections available up to 20 feet. Equipped with variable speed drives and a 1/2 HP motor, it ensures smooth and efficient transport of products like plastic and glass bottles, vitamin tablets, and cosmetic creams at speeds ranging from 3 to 130 linear feet per minute. The conveyor’s adjustable height and user-friendly controls facilitate seamless integration into existing production lines, enhancing operational efficiency. AccuVeyor 4 is suitable for continuous, high-speed operations and supports diverse applications, including packaging and material handling, making it an ideal choice for packaging machinery manufacturers and bottling companies. With options for both open top and closed top designs, it meets sanitary requirements, ensuring compatibility with various operational conditions.

Benefits

  • Enhances operational efficiency with customizable dimensions and variable speed control.
  • Facilitates easy integration into existing lines, minimizing installation downtime.
  • Ensures sanitary compliance with stainless steel or Poly Delrin construction.
  • Supports high-speed production, improving throughput without compromising quality.
  • Adjustable height feature optimizes ergonomic accessibility and workflow adaptability.

General


Applications
Packaging solutions,Material handling,Personal care products,Household chemicals,Nutraceuticals,Cosmetics,Bottling,Food and beverage,Industrial chemicals,Pharmaceuticals
End products
Cosmetic creams,Plastic bottles,Protein powders,Bottled beverages,Liquid detergents,Chemical solvents,Vitamin tablets,Cleaning sprays,Shampoo bottles,Glass bottles
Steps before
Unscrambling,Washers and Rinsers,Stretch Wrapping
Steps after
Labeling,Packing,Inspection-Rejection,Sealing
Input ingredients
bottles,containers,packaging materials
Output ingredients
filled bottles,packaged containers
Market info
Accutek is known for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in custom automation and packaging solutions. They are reputed for their innovation, reliability, and ability to meet complex industrial needs.

Technical Specifications


Material
Stainless Steel or Poly Delrin
Speed
3-130 Linear FPM
Drive Motor
1/2 HP
Power Requirement
110 VAC – 5 AMPS (220 VAC Optional)
Height
36 inches
Length
5',10',15',20'
Width
4.5″ (stock width)
Weight
Approx. 175 lbs. (79.37 kg)
Automation
User Friendly Controls

Operating Characteristics


Working mechanism
Open top and closed top sanitary conveyors
Automation level
User-friendly controls
Variable speed
3-130 Liner FPM
Height adjustability
Easily adjustable height
Batch vs. continuous operation
Inline Continuous
CIP/SIP
Clean-in-Place (CIP) compatible

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
No
Cleanability
High
Corrosive resistance (e.g. acids)
High (Stainless Steel)
Density/particle size
0.5–2.5 g/cm³

Physical Characteristics


Machine footprint
Footprint size not specified,customizable length and width
Height
36 inches (adjustable)
Width
8 inches
Weight
Approximately 175 lbs (79.37 kg)
Construction Material
Stainless steel or poly-plastics
Conveyor Belt Width
4.5 inches
Available Lengths
5',10',15',and 20' sections
Height Adjustable Stands
Yes
Drive Motor
1/2 HP
Power Supply Options
110v or 220v

Custom Options


Conveyor Type
Open Top / Closed Top
Material Type
Stainless Steel / Poly Delrin
Variable Speed Drive
Yes
Dimensions Customization
Custom Lengths and Widths
Height Adjustment
Easily Adjustable
Power Options
110v or 220v
