Continuous single shaft mixer for waste treatment

Achieve consistent mixing homogeneity and prevent dead spots in your production processes. Ideal for handling diverse materials, this mixer offers a robust solution for effectively combining solids, powders, granules, and slurries, ensuring optimum product quality and process efficiency in high-demand environments.

Mixes and Homogenizes Solids and Slurries

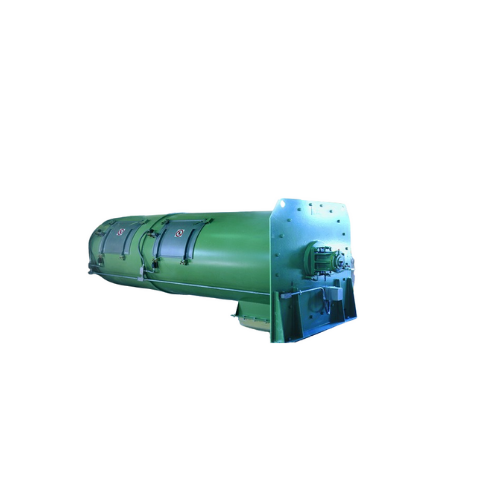

The WAH Continuous Single Shaft Mixer from WAMGROUP is engineered to deliver exceptional mixing and homogenizing performance for diverse industrial applications. With its rotating ploughshares or blade-type shovels, it creates a fluid bed effect to ensure thorough blending of powders, granules, and slurries, preventing dead zones in the mix. Ideal for sectors such as pharmaceuticals, plastics, and wastewater treatment, it facilitates the production of high-quality end-products like animal feed pellets, compound fertilizers, and treated wastewater.

Capable of processing up to 1,000 m³/h, the mixer integrates seamlessly into continuous production lines. Its design allows for up to 20% liquid addition, supported by various material options including anti-wear and stainless steel finishes to cater to specific corrosive environments. Energy efficiency is prioritized through precise motor control tailored to production requirements, while optional high-speed choppers enhance mixing results.

Automation is streamlined with PLC capabilities, and maintenance is minimized thanks to robust construction and easily accessible components. Customized options for surface treatments, liquid supply equipment, and temperature control are available, ensuring the mixer meets specific operational needs and industry standards.

Benefits

  • Ensures consistent product quality through comprehensive mixing action with no dead zones.
  • Reduces operational costs with durable, low-maintenance design.
  • Increases production efficiency by processing up to 1,000 m³/h with minimal energy consumption.
  • Customizable material finishes and configurations for optimal performance in various chemical environments.
  • Integrates seamlessly with existing production lines for enhanced operational flexibility.

General


Applications
Lime,Sludge treatment,Biogas,Minerals,Packaging plants,Cement,Varnishes,Biomass,Rubber,Animal feed,Mixing plants,Plastics,Resins,Paints,Fertilizers,Dosing plants,Petfood,Pharmaceuticals,Food processing waste water,Fish food,Wood biomass,Gypsum
End products
Dewatered sludge cakes,Plastic granules,Aquaculture feed pellets,Hydrated lime,Wall paint,Pre-packaged dry mix mortar,Dry dog kibble,Pelletized animal feed,Biogas digestate,Crushed limestone aggregates,Wood pellets for fuel,Vulcanized rubber,Plaster of paris,Portland cement,Sawn wood chips for biomass,Commercially packaged pet food,Treated industrial wastewater,Epoxy resins,Compound fertilizers,Topical creams,Filtered food industry wastewater,Gloss varnish
Steps before
Drying,Grinding,Pre-mixing
Steps after
Flow Interception,Packaging,Sampling,Granulating,Moistening
Input ingredients
dry bulk solids,powders,granules,short fibres,sludge,low-viscosity pastes,dry bulk solids + liquids,moistening,granulating
Output ingredients
homogeneous mixture,consistent quality mixture,high quality mixtures
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Capacity
2 ~ 1,000 m3/h (1.2 to 590 cfm)
Material Type
Dry bulk solids,dry bulk solids + liquids,sludge or low-viscosity pastes
Liquid Addition
Up to 20%
Material
Carbon steel,anti-wear steel,304L / 316L stainless steel
Mixing Tools
Ploughshare,toothed ploughshare,blade-type,toothed blade
Surface Finish
Grit silking,mirror polishing,glass bead blasting
Power Transmission
Drive unit complete with power transmission

Operating Characteristics


Mixing mechanism
Mechanically generated fluid bed
Mixing type
Continuous operation
Mixing tools
Ploughshare or shovel-shaped mixing tools
Turbulence creation
Prevents dead spots or slow-movement zones
Suitable materials
Dry bulk solids,sludge,low-viscosity pastes
Liquid addition
Up to 20% of liquid possible
Automation level
Manual / PLC / SCADA
Capacity range
2 ~ 1,000 m3/h

Material Compatibility


Abrasion resistance
Carbon Steel,Anti-wear Steel,Stainless Steel
Corrosive resistance (e.g. acids)
Stainless Steel 304L / 316L
Cleanability
Stainless Steel Surface Finish (Grit Silking,Mirror Polishing,Glass Bead Blasting)
Density/particle size
Suitable for Powders,Granules,Short Fibres

Physical Characteristics


Mixing drum shape
Cylindrical
Mixing drum size
Varies,up to 1,000 m³/h capacity
Mixing drum inlet and outlet
End-to-end inlet and outlet
Mixing tools
Ploughshare or inclined blade-type shovels
Material construction
Carbon steel,anti-wear steel,304L/316L stainless steel
Surface finish
Grit silking,mirror polishing,glass bead blasting
Drive unit
Power transmission included
Mixing chamber liner options
Anti-wear liner,ceramic liner,Teflon® liner
Bearings
Flanged end bearing assemblies

Custom Options


Control panel type
Pneumatic control panel
Special anti-wear surface treatment
Anti-wear liner / wear-resistant coating
Surface finish
Grit silking / mirror polishing / glass bead blasting
