Continuous granulation and drying system for pharma production

Achieve precise control over granule quality with a continuous solution that enhances production efficiency, ensuring high standards for pharmaceutical tablets and granules.

Processes and Dries Pharmaceutical Granules Continuously

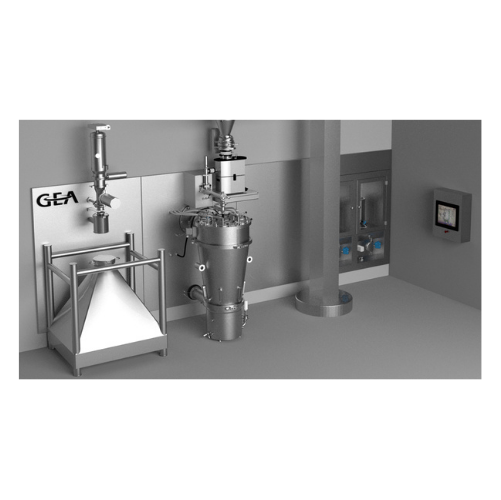

The ConsiGma® Granulation and Drying Modules from GEA offer a continuous twin-screw granulation and drying solution that delivers exceptional granule quality for pharmaceutical applications. Utilizing a standalone continuous process, it ensures precise granulation control, enhancing the consistency of tablets, powders, and granules. With processing capacities ranging from 5 to 120 kg/h, these modules integrate into existing bin-2-bin setups and can be customized with various options to meet specific needs. The Conductor 4.0 software ensures seamless operation, integrating with upstream and downstream equipment. Available with options like solvent processing compatibility and Pressure Shock Resistant design, the modules are also designed for minimal at-risk API, adhering to SUPAC guidelines. Suitable for a range of pharmaceuticals, including extended-release and effervescent tablets, these modules facilitate controlled drying and granulation, enhancing throughput and product quality while meeting GMP standards.

Benefits

  • Maximizes product consistency with precise granulation control.
  • Enhances operational efficiency through continuous processing.
  • Integrates seamlessly into existing setups for minimal disruption.
  • Reduces material waste with controlled at-risk API levels.
  • Meets strict pharmaceutical standards for GMP compliance.

General


Applications
Granules,Powder processing,Pharmaceutical tablets,Pharmaceuticals
End products
Active ingredient powders,Pharmaceutical pills,Vitamin tablets,Oral granules,Active pharmaceutical ingredient (api) granules,Solvent-free granules,Effervescent tablets,Nutraceutical tablets,Extended release tablets
Steps before
Mixing,Weighing
Steps after
Tablet Coating,Tablet Compression,Blending,Packing
Input ingredients
pre-mix,active pharmaceutical ingredients (API),feed material,binders,solvents
Output ingredients
granules,dry granules,conditioned granules,tablet cores
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Granulation Type
Twin-screw granulation
Throughput
5–120 kg/h
Drying Module
Segmented fluid bed dryer
Control System
Conductor 4.0 software
Automation
PLC-controlled
Material Handling System
Including containment features
Feeder Type
Loss-in-weight feeder
Pressure Shock Resistant Design
Available
Solvent Processing
Suitable
Particle Size Distribution Control
Yes
API Content Flexibility
Very low to very high
Porosity Control
Yes

Operating Characteristics


Working mechanism
Twin-screw granulation
Process type
Continuous
Automation level
Conductor 4.0 Software
Integrated steps
Granulation and Drying
Batch vs. continuous operation
Bin-to-bin continuous
Control system
PLC
Material handling
With containment features
Customization Options
Variable throughput capacities
Level of process control
Seamless with full reporting

Material Compatibility


Solvent compatibility
Suitable for Solvents processing
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Corrosive resistance
Pressure Shock Resistant (PSR) design


GMP Compliance
Yes

Physical Characteristics


Discharge method
Bin-2-bin

Custom Options


HMI type
Conductor 4.0 software
Integration possibilities
Handshaking with up- or downstream equipment
Choice of feeder
GEA or qualified third-party feeder
Pressure Shock Resistant design
Suitable for Solvents processing
Optional Lighthouse Probe
For LOD measurement
