Compact x-ray inspection system for food safety

Enhance food product safety with advanced x-ray inspection, targeting both hard and soft contaminants to maintain compliance without halting production lines.

Detects Contaminants in Packaged Food Products

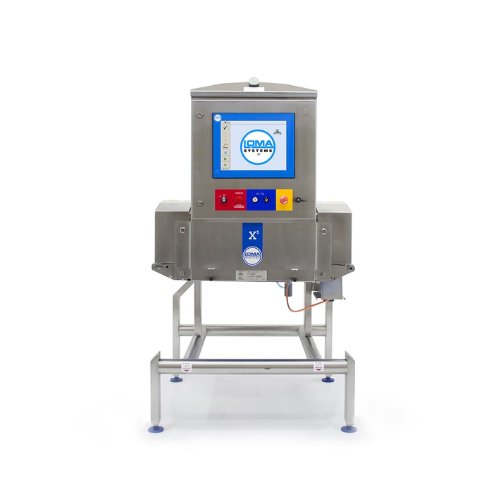

The X5 Space Saver X-ray Inspection System from Loma Systems offers unparalleled contaminant detection for food processors and manufacturers. With its advanced digital detector and high-speed processors, it ensures precise identification of foreign materials such as metal, glass, bone, and dense plastics, without halting production. Designed for seamless integration, it fits compactly into existing processing and packaging lines. The system is ideal for a broad range of applications, including the inspection of pre-packaged meats, bakery items, dairy products, and more, making it indispensable for maintaining quality and compliance across diverse food and pharmaceutical operations. Its robust construction supports continuous, 24/7 operation with minimal maintenance, while the programmable AAT technology allows for dynamic detection settings tailored to specific products. The system’s compact size—incorporating a sturdy, low-maintenance conveyor designed to operate efficiently in various environments—optimizes floor space, making it a cost-effective choice for high-speed, high-volume applications.

Benefits

  • Ensures high-quality control and compliance by precisely detecting a wide range of contaminants.
  • Reduces operational costs with low maintenance requirements and extended equipment lifespan.
  • Saves valuable floor space with its compact design, enhancing production area efficiency.
  • Increases product safety and quality through customizable detection settings for diverse applications.
  • Maintains production speed and minimizes false rejects with high-speed, dynamic analysis.

General


Applications
Grains,Convenience food,Meat,Bakery,Confectionery,Snack foods,Cereals,Nuts,Pharmaceutical,Egg products,Poultry,Dried foods,Vegetables,Food-to-go,Nutraceutical,Dairy products,Fish,Fruit
End products
Sausage,Dried pasta,Cheese,Potato chips,Apple slices,Chicken breasts,Muffins,Frozen peas,Yogurt,Fish fillets,Quinoa,Ready meals,Pre-packaged sandwiches,Bread loaves,Rolled oats,Almond packs,Chocolate bars,Protein supplements,Liquid egg cartons,Vitamin capsules
Steps before
Material preparation,Conveyor loading,Product sorting
Steps after
Rejection of contaminants,Packing,Quality control inspection
Input ingredients
convenience food,food-to-go,dairy products,egg products,meat,poultry,fish,bakery items,confectionery,snack foods,foil trays,metalized film,packaged goods
Output ingredients
inspected food products,contaminant-free goods,quality assurance products
Market info
Loma is known for manufacturing industrial inspection equipment, specializing in metal detection, checkweighing, and X-ray inspection systems, widely used in the food, pharmaceutical, and packaging industries for quality control and ensuring product safety and compliance.

Technical Specifications


Belt Width
300/500mm
System Length
1000mm
Product Height (recommended maximum)
180mm (150mm if product is a solid mass)
X-Ray Output
210W (60kV 3.5 mA)
Speed Range
20 - 80 m/min
Supply Voltages
85 to 265 V,single phase 50/60Hz,neutral,Earth
Operating Environment (Standard)
2 to 10°C with cabinet warm up,10 to 25°C with Vortex
Operating Environment (Optional)
25°C to 35°C AC Air conditioning (Cabinet reduced to NEMA 4x with AC Option)
Detection Algorithms
15 Multilayers Algorithms combined in any combinations
Weight on Belt
Up to 30kg
Belt Type
PU Anti-static
X-Ray Safety
Leakage less than 1 μSv/h

Operating Characteristics


Automation level
PLC controlled
Batch vs. continuous operation
Inline Continuous
Changeover time
Minutes with Product Learn Wizard
CIP/SIP
Manual
Cleaning method
Manual
Energy efficiency
Lower total cost of ownership
Compact system optimizing valuable space
1000mm line length

Material Compatibility


Cleanability
Hygienic design for easy cleaning
Corrosive resistance
304 Brushed stainless steel
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Abrasion resistance
Yes
Anti-static Handling
PU Anti-static Belt

Product type Characteristics


Product Height (Max)
180mm

Physical Characteristics


Machine footprint
1000mm line length
Belt width
300/500mm
Product height
Up to 180mm
Weight on belt
Up to 30kg
Material of construction
304 Brushed stainless steel
Belt type
PU Anti-static
Control panel type
Touch screen interface

Custom Options


Belt Width Options
300mm / 500mm
Line Height Options
700 - 1000mm (+/- 50 adjustment)
Cooling Options
Vortex or AC Air Conditioning
Operating Environment Options
Standard
Control Panel Type
Touch Screen Interface
Modular Integration
Can be combined with LOMA CW3 checkweigher
