Compact food transfer pump
Effortlessly maintain your production flow with a compact transfer pump designed to handle a wide range of viscosities.
Transfers and Dispenses Liquids and Slurries Effortlessly

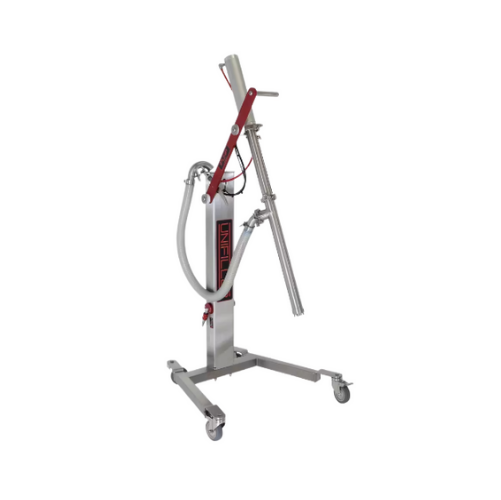

The iPump from Unifiller is a compact and economical transfer pump engineered to optimize your food and liquid processing operations. It utilizes gentle pumping technology to seamlessly move products like batter, sauces, and pet food from mixing bowls or pails without impacting their quality.
Its versatile design fits various container sizes from 60 to 140 quarts, and it features a unique tilt mechanism for quick product changeover, eliminating heavy lifting. With adjustable speed control and two operation modes—continuous or pedal-triggered—it caters to diverse product types and processing needs. The iPump achieves up to 5.3 US gallons per minute, enhancing throughput in pre-processing and transport applications within food, pharma, and cosmetics industries.
Tool-free disassembly facilitates fast cleanup, while optional features like a Hopper Level Sensor ensure consistent product levels. It is air-powered at 4 CFM @ 80 psi, simplifying integration into existing systems with minimal energy expenditure. Constructed for easy washdown, maintenance is straightforward, ensuring reliability and longevity. This adaptable pump supports uninterrupted production while reducing manual labor and enhancing efficiency across your processing lines.
Benefits
- Enhances production efficiency by maintaining continuous flow with minimal manual intervention.
- Simplifies cleaning and maintenance with tool-free disassembly, reducing downtime.
- Increases adaptability across different product types with adjustable speed control.
- Ensures consistent product levels with optional hopper sensor, stabilizing output quality.
- Integrates effortlessly into existing processes, supporting seamless upgrades in diverse industrial applications.
- Applications
- Hummus,Sauces,Bbq sauce,Batter,Pet food,Curry,Soft tomatoes,Ranch,Italian dressing
- End products
- Caesar dressing,Spicy bbq glaze,Diced tomatoes for pasta sauce,Marinades,Classic hummus,Ranch dip,Cake batter,Green curry paste,Wet dog food
- Steps before
- Mixing,Blending
- Steps after
- Filling,Packaging
- Input ingredients
- batter,italian dressing,ranch,hummus,bbq sauce,soft tomatoes,curry
- Output ingredients
- batter,italian dressing,ranch,hummus,bbq sauce,soft tomatoes,curry
- Market info
- Unifiller Systems is known for manufacturing innovative and precise food processing and bakery equipment, specializing in automated portioning and depositing solutions that enhance efficiency and consistency for bakeries and food production lines globally.
- Pump speed
- Up to 5.3 US Gallons/minute
- Particle size
- Soft ones up to 1/4″ (6 mm)
- Air power
- 4 CFM @ 80 psi
- Cleaning method
- Tool-free disassembly
- Outlet hose diameter
- 1.5″ (38 mm)
- Modes of operation
- Continuous or foot pedal triggered
- Working mechanism
- Piston pump
- Portability
- Compact and portable
- Operation mode
- Continuous/Triggered by foot pedal
- Flexibility in operation
- Adjustable pump speed
- Ease of cleaning
- Tool-free disassembly
- Batch vs. continuous operation
- Continuous
- Product handling
- Gentle pumping technology
- Adaptive to product type
- Adjustable pump speed for different products
- Abrasion resistance
- N/A
- Biological compatibility
- Food-grade
- Cleanability
- Easy washdown,tool-free disassembly
- Corrosive resistance (e.g. acids)
- N/A
- Density/particle size
- Soft particles up to 1/4″ (6 mm)
- Compact footprint
- Yes
- Discharge method
- Flexible outlet hose
- Tool-free disassembly
- Yes
- Tilt mechanism
- Quick change over
- Hose diameter
- 1.5″ (38 mm)
- Portability
- Yes
- Control panel type
- Foot pedal for triggering
- Integration possibilities
- Fits most pails and mixing bowls from 60 to 140 quarts
- Adjustable pump speed
- Yes
- Tilting mechanism
- Yes,for quick changeover
- Hopper Level Sensor
- Optional
