Combined wet glue and self-adhesive labeling system

Achieve seamless labeling with combined wet glue and self-adhesive technology, optimizing performance for complex labels and reducing downtime in high-speed, continuous operations.

Combines Wet Glue and Self-Adhesive Labeling

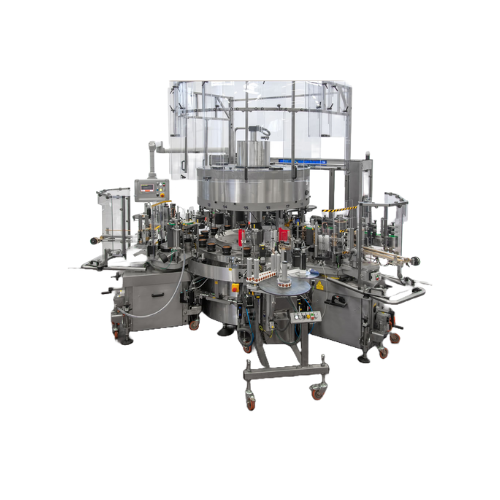

The CG 84 A-B-C Series from Cavagnino e Gatti integrates seamlessly into your packaging line, managing both wet glue and self-adhesive labeling with exceptional precision. This dual-technology system is specifically designed for high-speed production in industries ranging from wine and spirits to cosmetics and chemicals. It offers unparalleled flexibility with customizable labeling units capable of reaching up to 30,000 bottles per hour, adapting to diverse container types including glass bottles and food containers. Equipped with motorized reel unwinders and modules for continuous operation, it minimizes downtime significantly. The CG 84 A-B-C Series features advanced mechanical and optical orientation for precise label application, ensuring optimal alignment and minimal waste. Additional customization options include multi-format inlet and outlet star wheels and automatic height adjustment for accommodating varying bottle sizes. Its compact gluing units allow infinite setup combinations, making it a versatile choice for complex labeling requirements. Furthermore, the machine’s automated controls, remote tablet operation, and programmable step motors enhance integration and simplify operational control, while the option for four-axis adhesive station automation further optimizes efficiency and accuracy.

Benefits

  • Boosts production efficiency by integrating dual labeling technologies, reducing changeover time.
  • Minimizes downtime with no-stop operation and motorized reel unwinders, maximizing throughput.
  • Enhances labeling precision with mechanical and optical orientation, minimizing label waste.
  • Offers versatile application across industries, catering to diverse packaging specifications.
  • Streamlines operations with remote control and programmable automation, simplifying workflow management.

General


Applications
Vinegar,Water,Wine,Mignon,Oil,Spirits,Chemical products,Cosmetics,Food containers,Juices,Soft drinks,Beer
End products
Miniature liquor bottles,Vodka bottles,Olive oil bottles,Mineral water bottles,Soda bottles,Balsamic vinegar bottles,Orange juice bottles,Craft beer bottles,Canned food,Red wine bottles,Shampoo bottles,Detergent bottles
Steps before
Container Cleaning,Orientation and Sorting,Bottle Handling Preparation
Steps after
Quality Inspection,Packing,Inventory Management
Input ingredients
wet glue,self-adhesive labels,cylindrical bottles,various label types,capsules with lettering,UV spots,glass mould seam,glass marks,silkscreens,lever-operated caps
Output ingredients
labelled wine bottles,labelled spirits bottles,labelled beer bottles,labelled oil and vinegar containers,labelled soft drinks bottles,labelled water bottles,labelled juice bottles,labelled food containers,labelled mignons,labelled chemical products,labelled cosmetics
Market info
Cavagnino & Gatti is renowned for designing and manufacturing high-performance labeling and packaging machines, specializing in providing tailored solutions for diverse industries with a reputation for innovation, quality, and reliability.

Technical Specifications


Speed
12,000 to 30,000 b/h
Wet Glue Labelling Max Throughput
15,000 to 30,000 b/h
Self-Adhesive Labelling Max Throughput
10,000 to 30,000 b/h
Self-Adhesive Labelling Max Speed
55 to 90 m/min
Label Width Maximum (Wet Glue)
150 to 180 mm
Automation
Step motors,electronically controlled and programmable
Production Flexibility
Combined wet glue and self-adhesive technology
Label Set-Up Combinations
Infinite

Operating Characteristics


Combined labelling technology
Wet glue and self-adhesive
Labelling speed
12,000 to 30,000 b/h
Flexibility
For various sectors
Changeover time
Modular units for ease of changeover
Set-up combinations
Infinite set-up combinations
No-stop operation
Available with motorised reel unwinders

Product type Characteristics


Container type
Bottles,Food Containers
Industries
Wine,Spirits,Beer,Oil,Vinegar,Soft Drinks,Water,Juices,Food,Chemicals,Cosmetics
Bottle diameter
60 mm to 110 mm

Physical Characteristics


Compact footprint
Yes
Label width - Wet Glue Unit
Max 180 mm
Label width - Self-Adhesive Unit
Max 150 mm
Bottle diameter adaptability
60 mm to 110 mm
Height adjustment
Automatic via touch-screen

Custom Options


Control Panel Type
Centralised touch-screen panel
Integration Possibilities
XPS/H-XPS/R,YPS/H-YPS/R labelling units
Motorised Unwinders
Double reel motorised
Remote Control
10" tablet via wi-fi
Modular Labelling Units
Mounted directly or modular
Bottle Handling System
MP electronic control movement
Optical/Mechanical Orientation
For capsules,UV spots,glass marks
Height Adjustment
Automatic with touch-screen control
Adhesive Station Axes
Automatic up to 4 axes
