Coffee, dried nuts, and cocoa beans roaster
Achieve precise and customizable roasting for a variety of beans and nuts with efficient cooling and sampling features, ensuring optimal flavor and texture for high-quality end products.
Roasts and Cools Coffee, Nuts, and Cocoa Beans

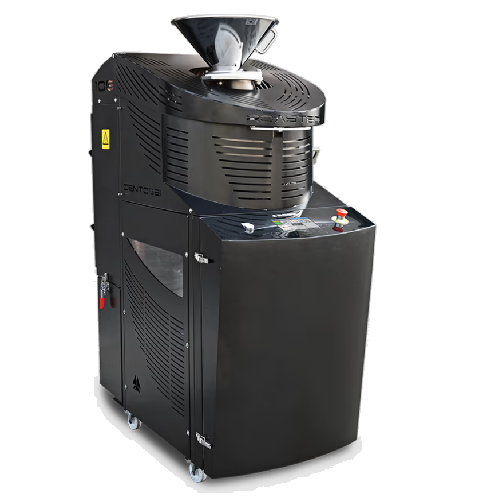

The Roaster 106 from Selmi Group is designed for coffee roasters, nut processors, and cocoa processors seeking efficiency and precision. Utilizing the patented Vertiflow® air system, this roaster ensures uniform roasting by controlling air temperature and product temperature via an integrated probe. It is capable of handling up to 40 kg/h in continuous operation, offering versatility across various solid granule products like coffee beans, almonds, and cocoa nibs. With automatic cycle control, including roasting, cooling, and sampling, it supports seamless integration into processing lines. The Roaster 106 operates on 400 V three-phase power and is engineered for easy cleaning with features like an extractable peel collecting tray and an external cooling tank. The equipment includes column filters to optimize efficiency by managing roasting and cooling fumes and is designed to reduce operational noise. An inspection window and manual discharge control enhance operational oversight. Additionally, the Roaster 106’s compact dimensions and requirement for a compressed air source make it adaptable to a wide range of production environments.
Benefits
- Ensures consistent roasting quality with precise temperature control, enhancing flavor profiles.
- Increases operational efficiency with continuous cycles capable of processing up to 40 kg/h.
- Reduces emissions and improves work environment through integrated column filters for fumes.
- Simplifies maintenance with easy-access cleaning features, minimizing downtime.
- Enhances operational oversight with sampling capabilities and manual discharge controls.
- Applications
- Cocoa beans,Coffee,Dried nuts
- End products
- Roasted pumpkin seeds,Roasted sunflower seeds,Roasted almonds,Roasted cocoa nibs,Roasted hazelnuts,Roasted coffee beans,Roasted pistachios
- Steps before
- Cleaning,Sorting,Pre-heating,Loading into hopper
- Steps after
- Cooling,Quality testing,Peel removal,Packaging
- Input ingredients
- coffee beans,dried nuts,cocoa beans,hazelnuts,almonds,pistachios,barley,sunflower seeds,pumpkin seeds
- Output ingredients
- roasted coffee beans,roasted dried nuts,roasted cocoa beans,roasted hazelnuts,roasted almonds,roasted pistachios,roasted barley,roasted sunflower seeds,roasted pumpkin seeds
- Market info
- Selmi is renowned for manufacturing high-quality chocolate processing equipment, such as tempering, enrobing, and cooling machines, with a strong reputation for precision, innovation, and reliability in the confectionery and chocolate industry.
- Power required
- 20 Kw - 32 A - 5 poles
- Electrical specification
- 400 V three phase - 50 Hz
- Loading hopper capacity
- 6 kg
- Roasting time for coffee
- 15–18 min
- Roasting time for dried nuts
- 10–12 min
- Roasting time for cocoa beans
- 25–30 min
- Dimensions [mm]
- 700 x 1256 x 1675
- Compressed air requirement
- 180 lt/min - 6 bar minimum - filtered,dry,deoiled
- Chimney connection diameter
- 100 mm
- Cooling time for product
- Less than 3 minutes for 6 Kg
- Working mechanism
- Vertiflow® System – patent
- Integrated steps
- Roasting,Cooling,Automatic Discharge
- Automation level
- Programmable with custom roasting profiles
- Batch vs. continuous operation
- Continuous Cycle
- Cleanability
- Easy to clean and wash
- Noise reduction
- Improved noise reduction of blower
- Cooling time
- Less than 3 minutes for 6 Kg
- Fume management
- Column filters for roasting and cooling fumes
- Product quality testing
- Product extraction cylinder for quality testing during processing
- Cleanability
- Easily cleanable and washable
- Corrosive resistance (e.g. acids)
- High resistance
- Abrasion resistance
- Highly durable materials
- Density/particle size
- 0.5–2.5 g/cm³
- Biological compatibility
- Food-safe materials
- Machine Dimensions
- 700x1256x1675 mm (LxWxH)
- Hopper Capacity
- 6 kg
- Chimney Connection Diameter
- 100 mm
- Cooling System
- External ventilated tank
- Inspection Window
- Cooling Chamber
- Control Panel Type
- Touch screen display
- Control panel type
- Touch screen display
- Discharge method
- Manual emergency discharge knob
- Integration possibilities
- Compressed air connection
- Roasting programs
- Personalized control settings
