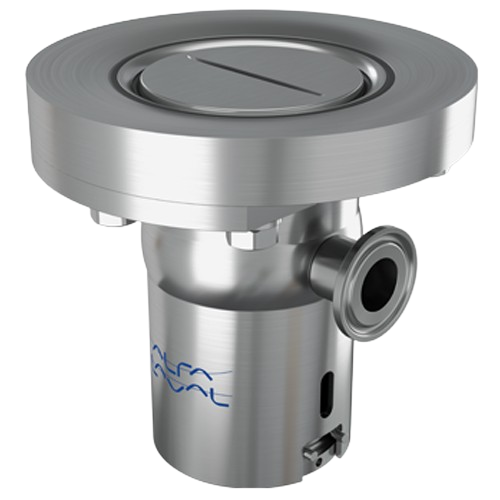

Cleaning nozzle for pharmaceutical tank cleaning

Ensure complete tank hygiene with innovative cleaning technology that targets hard-to-reach areas, dramatically reducing resource consumption and contamination risks while boosting productivity.

Ensures Complete Tank Cleaning Coverage

The PlusClean UltraPure cleaning nozzle by Alfa Laval revolutionizes tank sanitation in sterile and aseptic processes. It integrates seamlessly with existing top-mounted cleaning devices, ensuring 100% impact cleaning coverage in hard-to-reach shadow areas. This is particularly beneficial in industries like pharmaceuticals, biotechnology, dairy, food, and personal care, where cleanliness is paramount for maintaining product safety and quality. The PlusClean UltraPure optimizes resource utilization during Cleaning-in-Place (CIP), reducing water and cleaning media consumption by up to 80%. Compatible with static spray balls, rotary spray heads, and rotary jet heads, it allows flexible integration into tank designs, whether mounted on the wall or bottom. Equipped with an optional pneumatic piston for controlled operation, it supports real-time process insights via integration with Alfa Laval’s ThinkTop system. Its robust construction boasts low-maintenance requirements and comes with Alfa Laval Q-doc documentation, ensuring traceability and compliance with industry standards like GMP and FDA.

Benefits

  • Guarantees 100% cleaning coverage in tank shadow areas, enhancing product safety and quality.
  • Cuts water and media usage by up to 80%, lowering operational costs.
  • Streamlines cleaning processes, minimizing contamination risks and increasing productivity.
  • Requires minimal maintenance, reducing downtime and total cost of ownership.
  • Provides full traceability with Q-doc documentation, ensuring industry compliance.

General


Applications
Food,Personal care,Beverages,Biotechnology,Cosmetics,Biopharmaceuticals,Dairy,Pharmaceuticals
End products
Sterile injectable drugs,Fermentation broths,Protein-based biopharmaceuticals,Liquid dietary supplements,Shampoos,Skin creams,Yogurt,Raw milk,Flavored water,Body lotions
Steps before
Milk Reception,Tank Filling,Initial Rinsing,Product Transfer
Steps after
Sterilization,Product Yield Analysis,Drying,Final Inspection
Input ingredients
cleaning media,water,air pressure
Output ingredients
cleaned tank,removed contaminants,wastewater savings
Market info
Alfa Laval is renowned for its expertise in heat transfer, separation, and fluid handling technologies, providing innovative, energy-efficient engineered-to-order solutions for various industries including food, marine, and energy.

Technical Specifications


Impact Cleaning Coverage
100%
Water and Cleaning Media Reduction
Up to 80%
Contamination Risk
0%
Spray Patterns
3 different patterns
Mounting Options
Tank wall/bottom
Activation Type
Cleaning media / Pneumatic
Piston Activation
Pneumatic / Media-driven
Cleaning Coverage
Beneath agitator blades,coils,connections
Automation
Compatible with Alfa Laval ThinkTop
Maintainability
No moving parts extend/retract
Traceability
Full traceability with Alfa Laval Q-doc
Pressure Range
Controlled air pressure

Operating Characteristics


Cleaning method
CIP
Batch vs. continuous operation
Batch
Automation level
Feedback signals (open/closed,purging)
Changeover time
Faster,enabling faster batch or continuous process productivity
Energy efficiency
Up to 80% savings in water and cleaning media costs
Air activation
Pneumatic version with controlled air pressure
Integrated steps
Flush installation with tank wall/bottom
Working mechanism
High-impact spray pattern,fan pattern

Material Compatibility


Biological compatibility
Aseptic and sterile environments
Corrosive resistance (e.g. acids)
Compatible with cleaning agents
Cleanability
100% cleaning coverage

Product type Characteristics


Tank shape and size compatibility
Versatile for various tank sizes and shapes
Industries suited for
Biotechnology and pharmaceutical industries

Physical Characteristics


Compact footprint
Yes
Tank shape
Customized (wall or bottom-mounted)
Spray pattern
Fan pattern
Weld plate options
Two different weld plates available
Control panel type
Alfa Laval ThinkTop

Custom Options


Spray pattern options
Three different patterns
Mounting options
Tank wall or bottom
Weld plates options
Two different weld plates
Piston activation method
Cleaning media or pneumatic
Integration with ThinkTop
Feedback signals like open/closed,purging
