Cip cleaning system for dairy industries

Ensure hygienic operation with this system, designed to maintain optimal cleanliness in processing environments by effectively removing impurities and reducing bacterial levels.

Cleans and Sanitizes Production Lines

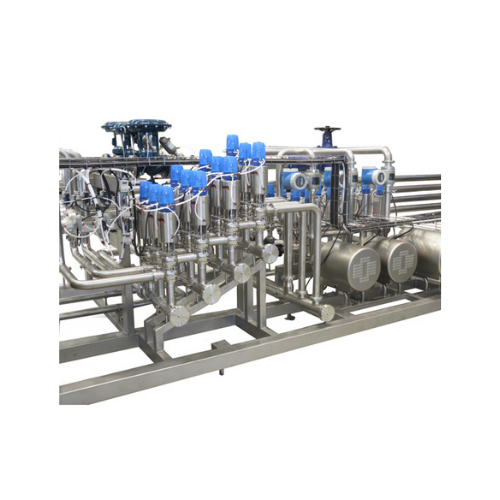

The CIP Automatic Static System from INOXPA provides a robust solution for maintaining hygiene in diverse production environments. Specializing in Cleaning-In-Place (CIP), this system utilizes a static frame-mounted design, integrating seamlessly into existing production lines. Equipped with HCP pumps and single seat multiway valves, it ensures efficient impurity removal and bacterial reduction through its precisely controlled cleaning process.

Designed for industries producing yogurt, cheese, milk powder, and more, its capacity ranges from 10 to 25 m³/h, serving both single and dual-line operations. This system offers customization in material options, utilizing AISI 316 for chemical product contact parts to enhance corrosion resistance. With Siemens PLC and a comprehensive measurement suite, including flow, temperature, and conductivity meters, it ensures thorough monitoring and control throughout the cleaning cycle, catering to the stringent requirements of food, dairy, and pharmaceutical industries.

Benefits

  • Enhances operational efficiency by minimizing production downtime through effective CIP processes.
  • Maintains high hygiene standards, reducing contamination risks in sensitive production lines.
  • Customizable configurations ensure compatibility with specific production requirements and materials.
  • PLC-controlled operation reduces labor costs and enhances cleaning accuracy.
  • Supports sustainable operations with energy-efficient processes and materials compatible with aggressive chemicals.

General


Applications
Beverages,Cosmetics,Food products,Dairy products,Pharmaceuticals
End products
Cream,Syrups,Lotion,Bottled water,Liquid medicines,Cheese,Milk powder,Pasteurized milk,Ice cream,Carbonated drinks,Ointments,Yogurt,Liquid soap,Fruit juices
Steps before
Purification,Mixing,Blending,Heat treatment
Steps after
Sterilization,Product recovery,Filtration,Packing
Input ingredients
water,chemical products
Output ingredients
cleaned plant equipment,reduced impurities,lower bacteria levels
Market info
INOXPA is known for its expertise in manufacturing stainless steel components and equipment, particularly for the food, dairy, cosmetic, and pharmaceutical industries. They are reputed for high-quality, hygienic, and reliable processing solutions.

Technical Specifications


Flow Rate
10,15,20,25 m³/h
Automation
PLC-controlled
Lines Cleaned Simultaneously
1 or 2 lines
Temperature Control
Steam control valve(s)
Temperature Monitoring
Temperature probe(s) at pump outlet
Return Line Monitoring
Conductivity meter(s),Flow detector(s)
Control System
Siemens PLC (S/7),9”/12” touchscreen
Materials Contacting Product
AISI 316
Pressure Monitoring
Optional Pressure gauge(s) in the impulsion line(s)

Operating Characteristics


Automation level
Automatic / PLC
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C
Cleaning method
CIP
Design capacity
10,15,20,and 25 m³/h
Line Cleaning Options
Single / Dual Line
Integrated Steps
Cleaning / Disinfection

Material Compatibility


Biological compatibility
AISI 316,AISI 304
Cleanability
CIP systems
Corrosive resistance (e.g. acids)
AISI 316L for chemical products,AISI 304 for water
Density/particle size
EPDM Gaskets

Physical Characteristics


Tank Shape
Round
Tank Size
10,15,20,and 25 m³/h
Base Frame Components
HCP pumps,Tubular exchangers,Multiway valves
Piping Material
AISI 316
Tanks Material
AISI 316L for chemicals,AISI 304 for water
Tanks Insulation
Mineral wool
Control Panel
Stainless steel with Siemens PLC (S/7)

Custom Options


Control panel type
Siemens PLC (S/7) with 9”/12” touchscreen
Integration possibilities
Allen-Bradley Compact Logix PLC and Rockwell display
Communication systems
Between CIP and other plant panels
Piping customization
Options for customer fitting or pre-connected
Tanks customization
Option to purchase or supply own tanks
