Chocolate painting and spraying cabin with suction

Achieve impeccable decoration and coating of confectionery with a painting and spraying cabin that effectively reduces work area contamination while maintaining optimal color consistency and precision for chocolate, pastry, and dessert creations.

Sprays, Paints, and Decorates Chocolate and Pastry

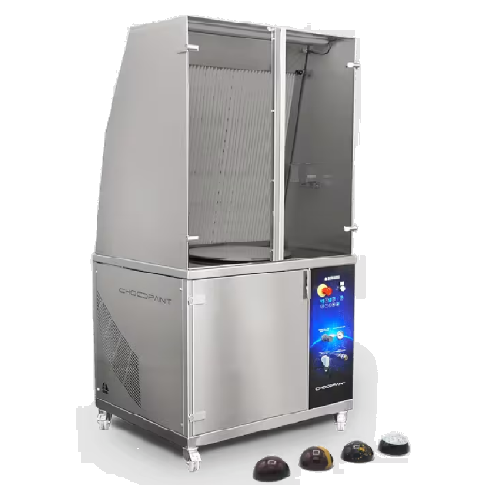

The Chocopaint by Selmi is a specialized food spraying and decoration cabin designed to maximize precision and hygiene in chocolate and pastry applications. It efficiently sprays, paints, and decorates a variety of products such as chocolate pralines, bars, semifreddos, and more with its high-power suction system. This minimizes the diffusion of colors within your workspace, ensuring cleanliness and efficiency. Constructed entirely from stainless steel, the Chocopaint boasts features such as LED illumination, a removable rotating plate for detailed work, and integrated pressure regulation for customizable spray intensity. Suitable for both batch and continuous operations, it accommodates up to 7 trays, features easy-to-maintain double filters, and provides a heated cabin for optimal material storage during production pauses. With a compact design on wheels, it promises easy mobility and integration into any laboratory, making it an ideal investment for chocolate producers, pastry shops, and confectionery manufacturers.

Benefits

  • Enhances precision and speed in product decoration, increasing production efficiency.
  • Maintains workplace cleanliness and hygiene with superior suction capabilities.
  • Easy to move and integrate into various production settings, offering operational flexibility.
  • Reduces material waste through effective filtration, maximizing cost efficiency.
  • Ensures consistent product quality with adjustable spray intensity and controlled storage temperatures.

General


Applications
Confectionery,Pastry,Sweets,Desserts,Ice cream,Bakery products,Chocolate
End products
Coated truffles,Decorated cakes,Decorated biscuits,Chocolate pralines,Chocolate bars,Mini desserts,Semifreddo desserts
Steps before
Preparation of chocolate,Color mixing,Cocoa butter preparation,Setup of decoration materials,Loading trays
Steps after
Drying,Cooling,Packing,Quality inspection,Storage
Input ingredients
cocoa butter,food colors,jellies,chocolate subjects,pralines,bars,semifreddo,mini desserts,cakes,biscuits,polycarbonate moulds
Output ingredients
decorated chocolates,decorated pralines,decorated bars,decorated pastries,decorated desserts,decorated cakes,decorated biscuits
Market info
Selmi is renowned for manufacturing high-quality chocolate processing equipment, such as tempering, enrobing, and cooling machines, with a strong reputation for precision, innovation, and reliability in the confectionery and chocolate industry.

Technical Specifications


Dimensions
h. 1850 mm,w. 980 mm,d. 790 mm
Power required
2 Kw - 16 A - 3 poles
Electrical specification
220 V monofase - 50/60 Hz
Compressed Air Usage
150 litres/min - minimum 6 bar – filtered for oil and water
Suction power
Customizable
Control panel type
Digital
Plate control
Pedal-activated
Material
Stainless steel
Illumination
LED
Heating capability
Heated cabin for storage
Tray capacity
Up to 7 trays 60x40 cm
Filter
Double,removable and replaceable
Wheel count
4 pivoting wheels
Spray system
Integrated compressor with pressure regulator

Operating Characteristics


Working mechanism
Spraying and painting with suction
Integrated steps
Decoration,Heating,Suction
Automation level
Digital control panel
Batch vs. continuous operation
Batch
Cleaning method
Manual
Pressure regulation
Integrated pressure regulator
Energy efficiency
Not specified
Changeover time
Not specified

Material Compatibility


Biological compatibility
Food safe
Cleanability
Easy to clean surfaces
Corrosive resistance
Stainless steel construction

Physical Characteristics


Machine footprint
h. 1850 mm,w. 980 mm,d. 790 mm
Material
Stainless steel structure
Mobility
Nº of pivoting wheels
Control panel type
Digital control panel
Lighting
Special LED lighting
Plate type
Removable and turning plate
Front doors
Lexan
Heated cabin
Available for storage and conservation

Custom Options


Control panel type
Intuitive digital control panel
Removable Turning Plate
Adjustable speed with pedal control
