Centrifugal pumps for food & beverage and biopharmaceutical applications
Optimize your liquid transfer processes with pumps that ensure impeccable cleanability and compliance with strict industry standards, ideal for handling everything from delicate syrups to stringent pharmaceutical solutions.
Transfers and Cleans Liquids Efficiently

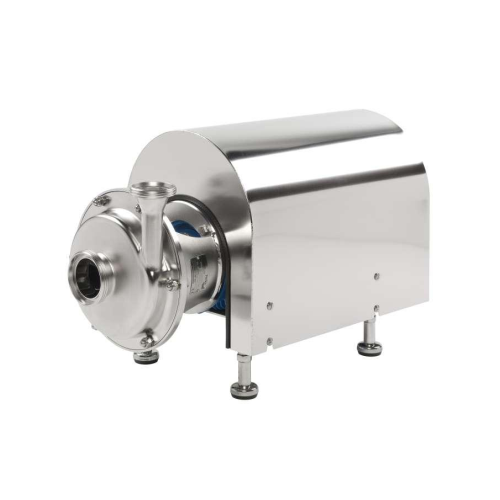

The PCP – PHP, PRP series from Pierre Guerin, developed with the PACKO Inox Company, offers a range of stainless steel centrifugal pumps designed for stringent hygiene requirements in the food, beverage, and biopharmaceutical industries. These pumps feature an open wheel design and large seal chamber, ensuring optimal turbulence for effective cleaning in place. Applications span from transferring syrups, blood derivatives, and purified water to handling milk, beer, and fruit juices. With capabilities reaching up to 100 m³/h at 11 bar and temperatures up to 250°C with FEP seals, they seamlessly integrate into high-speed, continuous operations. Certified by EHEDG and compliant with ASME BPE, FDA, and USP standards, these pumps support robust processes while minimizing acoustic noise and maintaining low NPSH requirements. Customizable with ATEX models and supported by comprehensive documentation, these pumps reduce maintenance demands through limited spare parts and an efficient CIP system.
Benefits
- Ensures contamination-free processing with EHEDG-certified, fully cleanable design.
- Optimizes operational efficiency by reducing downtime through effective CIP performance.
- Minimizes acoustic disturbances for a quieter work environment.
- Offers energy-efficient operation, reducing overall power consumption.
- Complies with stringent food and pharmaceutical standards, aligning with regulatory requirements.
- Applications
- Oils,Spirits,Wines,Cleaning solutions,Beer,Dairy,Food,Sugar syrups,Fine chemicals,Syrups,Fruit juices,Baby nutrition,Personal care,Purified water,Milk,Biopharmaceuticals,Demineralized water,Clinical nutrition,Pharmaceuticals,Beverages,Beverage,Blood derivatives
- End products
- Craft beer,Infant milk formula,Olive oil bottling,Glucose solution,Insulin,Monoclonal antibodies,Cough syrup,Albumin solutions,Fresh milk cartons,Orange juice,Maple syrup,Single malt whisky,Hand sanitizer gel,Saline water bottles,Distilled water,Liquid chromatographic intermediates,Fruit-flavored sodas,Moisturizing cream
- Steps before
- Purification,Blending,Mixing,Filtration
- Steps after
- Sterilization,Packing,Bottling,Quality Control
- Input ingredients
- syrups,parenteral solutions,blood derivatives,demineralized water,purified water,cleaning solutions,milk,wines,alcohols,beer,fruit juices,oils,waters,sugar syrups
- Output ingredients
- processed syrups,transferred solutions,filtered liquids,purified liquids,cleaned solutions
- Market info
- Pierre Guerin is renowned for manufacturing high-quality, engineered-to-order equipment, particularly for the pharmaceutical and biotechnology industries, specializing in vessels, process systems, and complete turnkey solutions with a strong emphasis on innovation and customer satisfaction.
- Material
- Stainless steel EN 1.4404 (316 L)
- Finish
- Electro-polished
- Maximum Capacity
- 100 m³/h
- Maximum Pressure
- 11 bar
- Maximum Power
- 45 kW
- Temperature Range (EPDM)
- Up to 130°C
- Temperature Range (VITON)
- Up to 200°C
- Temperature Range (FEP)
- Up to 250°C
- Viscosity Handling
- Up to 1,000 cpo
- Design
- Open wheel design,large seal chamber
- Mechanical Seal Standards
- DIN,ISO,AFNOR
- Working Mechanism
- Centrifugal Pump
- Material of Construction
- Stainless steel EN 1.4404 (316 L)
- Cleaning Method
- CIP
- Cleanability
- Electro-polished finishing
- Automation Level
- PLC
- Batch vs Continuous Operation
- Continuous
- ATEX Model Availability
- Yes
- Performance
- Up to 100 m³/h - 11 bar - 45 kW
- Viscosity Capability
- Up to 1000 cpo
- Maximum Temperature
- EPDM 130°C,VITON 200°C,FEP 250°C
- NPSH Requirement
- Minimum
- Acoustic Level
- Very Low
- Cleanability
- Stainless steel EN 1.4404 (316 L),electro-polished finishing (Ra 0.8 or 0.4μm)
- Corrosive resistance (e.g. acids)
- Stainless steel EN 1.4404 (316 L)
- Material
- Stainless steel EN 1.4404 (316 L)
- Finish
- Electro-polished
- Seal chamber design
- Open wheel,large chamber
