Capsule filling for nutrition and health products

Optimize your production line with advanced capsule filling capabilities designed to increase yields and reduce product loss for nutraceutical powders and granules.

Fills and Seals Capsules with Precision

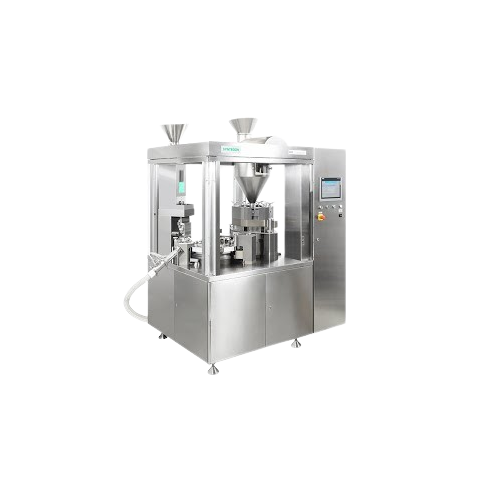

The GKF Capsylon Series from Syntegon is an automated solution for precise capsule filling and sealing, tailored for the nutraceutical and pharmaceutical sectors. With a modular design, these machines adapt to fill a range of capsule types, from powders to granules, effectively reducing product waste and improving yield. Capable of producing up to 360,000 capsules per hour, the series is ideal for high-volume operations, including vitamins, probiotics, and herbal supplements. Integration into existing production lines is seamless, thanks to its PLC control and user-friendly interface. The machines are energy-efficient, featuring slide-gate technology that minimizes dust and product loss. Built from robust materials, they are compliant with GMP standards, ensuring quality and safety. Maintenance is streamlined through easy-to-clean components and optional CIP systems, while Syntegon offers extensive customization and support to meet diverse production needs.

Benefits

  • Increases production capacity with outputs up to 360,000 capsules per hour.
  • Reduces product loss and waste through precise dosing and slide-gate technology.
  • Simplifies cleaning and maintenance with modular and accessible design.
  • Enhances flexibility in handling diverse nutraceutical and pharmaceutical products.
  • Ensures compliance with GMP standards for reliable and safe production.

General


Applications
Prebiotics,Vitamins,Nutrition,Nutraceuticals,Pellets,Granules,Health products,Powders,Herbal medicines,Probiotics,Dietary supplements
End products
Turmeric extract capsules,Omega-3 fish oil capsules,Protein powder capsules,Ginseng capsules,Fiber supplement granules,Probiotic capsules,Flaxseed oil capsules,Iron supplement capsules,Echinacea capsules,Multivitamin tablets,Calcium supplement pellets,Spirulina capsules,Vitamin c capsules,Green tea extract capsules,Coenzyme q10 tablets
Steps before
Powder Grinding,Granule Preparation,Pellet Creation
Steps after
Capsule Sealing,Checkweighing,Packing,Inspection
Input ingredients
powders,pellets,granules,herbs,vitamins,sticky powders,fine-grained powders,fluffy products,abrasive products,fibrous products
Output ingredients
filled capsules,sealed capsules,nutraceutical products,pharmaceutical products
Market info
Syntegon is known for its expertise in processing and packaging technology, offering innovative solutions for the food and pharmaceutical industries. It has a strong reputation for advanced equipment, sustainability, and customer-oriented service.

Technical Specifications


Output
3,000 - 360,000 capsules per hour
Segment bores
5 / 11 / 21 / 48
Machine cycles
Max. 125 - 140 cycles/min
Dimensions (HxWxD)
2031x868x1200 mm to 2276x1908x1808 mm
Connected voltage
400 V ±10%,50/60Hz,3PH/N/PE
Power consumption
2.5 kW to 23 kW
Capsule sizes
Commonly available sizes
Dosing type
Precise dosing for sticky or fine-grained powders
Filling accuracy
Highly accurate and flexible dosing
Capsule filler type
Automatic
Cleaning method
Easy cleaning

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch
Changeover time
Minimized
CIP/SIP
Easy cleaning
Cleaning method
Simple cleaning
Energy efficiency
High efficiency

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes
Cleanability
Easy cleaning
Corrosive resistance (e.g. acids)
Yes
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
GKF 705
Segment bores
GKF 705
Machine cycles
Max. 140 cycles/min (GKF 705,1505,3005),Max. 125 cycles/min (GKF 6005)

Custom Options


Modular design
Yes
Flexible machine design
Yes
Slide-gate technology
Available
Capsule sizes
000 to 5
Control panel type
Touchscreen
Simplified cleaning process
Easy Cleaning
