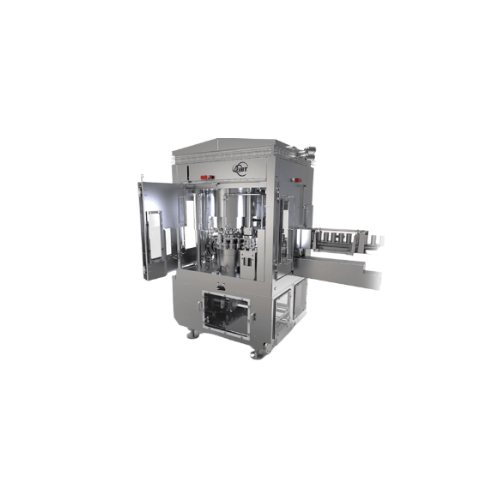

Can seamer for high-speed liquid applications
Ensure consistent seal integrity and maximize throughput with this advanced can seamer, designed to deliver high precision and reliability in liquid product applications.
Seals and Closes Liquid-Filled Cans
The X-52 and X-59 Can Seamers from JBT deliver seamless can sealing solutions for liquid products, tailored for food and beverage industry needs. These machines facilitate high-speed processing, ranging from 100 to 1,500 cans per minute, ensuring consistent seam quality across products like juices, dairy, and sauces. Utilizing power-driven seaming spindles and automated lubrication, these units enhance operational efficiency while minimizing maintenance. With stainless steel construction and an optional wash-in-place system, they cater to stringent hygiene standards, making them ideal for corrosive environments. Integrated with JBT fillers, these seamers provide a synchronized filling and sealing line solution, boosting throughput and reducing waste. Designed with easy-access features, the X-52 and X-59 models offer reliable operation with minimal downtime, supported by JBT’s engineering expertise for any custom requirements.
Benefits
- Increases production efficiency by sealing up to 1,500 cans per minute.
- Minimizes maintenance downtime with an automatic lubrication system.
- Enhances operator safety with fully enclosed design and interlocked doors.
- Maintains product integrity with consistent seam quality across light and varied can materials.
- Meets hygiene standards with stainless steel construction and optional wash-in-place system.
- Applications
- Sauces,Tomato processing,Oils,Dairy,Seafood,Soups,Dairy alternatives,Tuna processing,Seasonings,Juices,Tea,Ready meals,Pet food,Fruits,Nuts,Baby food,Beverages,Meat,Coffee,Dressings,Poultry
- End products
- Sausage,Infant formula,Barbecue sauce,Balsamic vinaigrette,Canned sardines,Lasagna,Orange juice,Almond milk,Dry dog food,Yogurt,Instant coffee,Olive oil,Tomato soup,Roasted almonds,Canned peaches,Canned chicken,Canned tomatoes,Marinara sauce,Brewed tea,Iced tea,Canned tuna
- Steps before
- Filling,Purification,Preparation
- Steps after
- In-Container Sterilization,Packing,Fruit,Vegetable Processing,Tomato Processing,Tuna Processing
- Input ingredients
- cylindrical metal cans,liquid applications,food products,dairy products,beverage products
- Output ingredients
- sealed cans,high-quality double seams,consistent seam quality
- Market info
- JBT is known for manufacturing industrial ETO equipment, specializing in food processing and airport ground support systems. They are reputed for innovative solutions and reliable service in industries requiring sophisticated automated systems and machinery.
- Speed
- 100–1,500 cpm
- Lubrication System
- Oil-lubricated / Grease-lubricated
- Material
- Stainless steel
- Automatic Lubrication
- Yes
- Hygiene Design
- Sanitary
- Adjustment
- Automatic oil flow system
- Seaming speed
- 100 to 1,500 cpm
- Lubrication type
- Grease/Oil-lubricated
- Adjustable speed range
- 100-1,500 cpm
- User accessibility
- Wide interlocked doors,polycarbonate windows
- Sanitary design
- Stainless steel,wash-in-place option
- Automatic lubrication
- Oil flow system
- Operator safety
- Full-length guards,polycarbonate windows
- Consistency
- Power-driven seaming spindles and lifter plates
- Maintenance accessibility
- Easy access to all major assemblies
- Automation level
- Full automatic
- Corrosive resistance (e.g. acids)
- Stainless steel
- Machine footprint
- Compact
- Material
- Stainless steel
- Control panel type
- Interactive with LED indicators
- Discharge method
- Automatic with seamless integration
- Accessibility
- Wide interlocked doors
- Design
- Fully enclosed for operator safety
- Customization Options
- Optional wash-in-place system
- Seaming technology
- Power-driven seaming spindles
- Knock-out pads
- Spring-loaded,reduced diameter
- Automatic lubrication configuration
- Yes
- Wash-in-place (WIP) system
- Optional
- Adjustable speeds
- 100-1,500 cpm
- Ergonomic design
- Yes
- Control panel type
- Electrically interlocked doors
