Ball mill for dry comminution of hard materials

Achieve ultrafine particle sizes and precise material breakdown with this robust grinding solution, designed for consistent operation in demanding environments. Ideal for optimizing production, it handles hard materials effortlessly, ensuring your processes maintain peak efficiency.

Precisely Mills and Grinds Ultrafine Materials

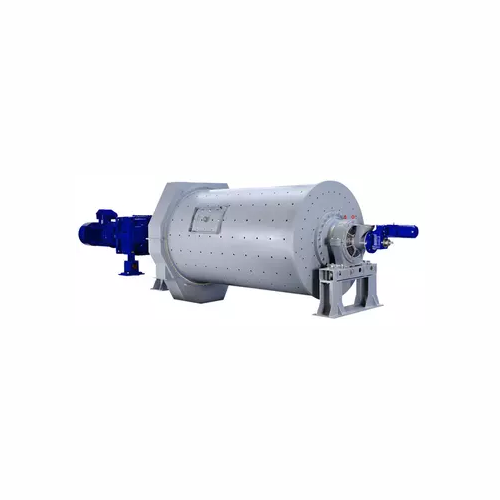

The Super Orion S.O. Ball Mill from Hosokawa Alpine is engineered for ultrafine grinding across diverse industries including chemicals, pharmaceuticals, and food processing. What sets this mill apart is its ability to maintain precision control and consistency in continuous operations. Utilizing a robust grinding drum lined with tungsten carbide or ceramic elements, it operates below critical speed for optimal performance. Applications range from producing fine powders for additives to milling hard minerals for technical ceramics.

Capable of integrating seamlessly into existing production lines, this ball mill supports variable speed operation via a frequency converter, offering flexibility for frequent product changes. Its advanced load cell system ensures optimum load management, preventing no-load operations and improving cost efficiency. Designed with oil-lubricated journal bearings and cast side plates, it delivers durable performance with minimal maintenance. The Super Orion S.O. complies with industry standards, ready for customization to meet specific process needs with options for material customization and engineering support.

Benefits

  • Enhances process efficiency with precision control, ensuring consistent product quality.
  • Minimizes operational costs by preventing no-load conditions through accurate load monitoring.
  • Adapts to changing production needs with variable speed capabilities for versatile applications.
  • Offers durable, low-maintenance operation with robust construction and high wear resistance.
  • Seamlessly integrates into existing lines, reducing production setup time and labor requirements.

General


Applications
Dishwashing powder,Post consumer recycling,Cosmetics,Lithium-ion batteries,Crop protection agents,Recycling composite materials,Minerals,Powder coating,Sweeteners,Talc,Recycling extruded materials,Chemicals,Fertiliser,Medicinal herbs,Luxury foods,Hapi,Additive manufacturing metal,Spices,Tea,Recycling plastic mouldings,Animal feed,Additive manufacturing polymer,Titanium dioxide,Industrial wax,Recovered carbon black,Special flours,Sugar,Metals,Cell culture media,Cocoa processing,Technical ceramics,Cable recycling,Grinding of rubber,Calcium carbonate,Api - inhaler,Lignin,Film recycling,Thickening agents,Roots,Protein shifting,Hard minerals,Tablets,Lactose,Dairy products
End products
Titanium pigment,Garden hoses,Ceramic tile powders,Npk fertilizer granules,3d printed metal parts,Emulsifying agent,Candle wax pellets,Laboratory growth media,Effervescent tablets,Gluten-free flour mix,Automotive paints,Recycled polymer sheets,Car brake pads,Chai tea blend,Cocoa butter,Wood composite panels,Artificial sweeteners,Iron ore pellets,Gourmet truffles,Dishwasher tablets,Pesticide granules,Whey protein isolate,Glass fiber cables,Cornflakes,Organic matcha powder,Elongated rubber strips,Pressed talcum compacts,High potency active ingredients,Textured vegetable protein,Confectioner’s sugar,Milk powder,Granola,Gold jewelry castings,Cattle feed pellets,Activated carbon filters,Marble dust,Printer toner,Insulation panels,Facial foundation powder,Electric vehicle battery cells,Bronchial inhalers,Recycled plastic films,Herbal supplements,Recycled pet bottles,Metal injection mold parts
Steps before
Drying,Coarse crushing,Purification,Pre-crushing,Material preparation
Steps after
Ultrafine classification,Packing,Coating,Tablet pressing,Sterilization
Input ingredients
hard materials,feedstock
Output ingredients
ultrafine product,coarse material,ground product,discharged product
Market info
Hosokawa Alpine is known for its expertise in manufacturing advanced process equipment and systems for powder and particle processing technology. It has a strong reputation for innovation, quality engineering, and customer-focused solutions in various industries.

Technical Specifications


Grinding media type
Balls
Milling drum size
Large (several cm diameter balls suitable)
Drive system
Ring-and-pinion gear with automatic lubrication
Lining material
Tungsten carbide / Silex / Ceramic
Critical speed
Below critical speed,variable
Power conversion
Approx. 50 kW per m³
Product discharge method
Adjustable slots
Variable-speed drive
Frequency converter option
Load cell system
Optional for precision control

Operating Characteristics


Batch vs. continuous operation
Batch operation
Grinding mechanism
Ball mill with rotating drum
Mill speed
Below critical speed
Feed input method
Continuous through trunnion
Automated product discharge
Adjustable slots
Grinding media lifting
Free-fall and impact
Temperature control
Water-cooled bearings
Product level control
Load cell system
Variable-speed drive
Frequency converter
Iron contamination prevention
Ceramic or silex lining
Energy efficiency
Approx. 50 kW/m³

Material Compatibility


Abrasion resistance
Yes
Grinding without iron contamination
Yes
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Corrosive resistance (e.g. acids)
Yes

Physical Characteristics


Grinding drum size
Filled to 30-40% of volume
Milling media size
1 to several cm
Grinding drum lining
Tungsten carbide/silex/ceramic
Discharge method
Peripheral adjustable slots
Drive type
Ring-and-pinion gear
Drive control
Variable-speed with frequency converter
Bearing type
Journal bearing or self-aligning roller bearings

Custom Options


Control panel type
Variable-speed drive
Discharge method
Adjustable slots around periphery
Lining material
Tungsten carbide / Silex / Ceramic
Bearing type
Friction bearing / Self-aligning roller bearing
Drive option
Ring-and-pinion gear
Product level control
Load cell system
Grinding media type
Steel / Various Ball sizes
