Bag rip-and-tip dump stations for bag emptying

Efficiently manage bag emptying operations with advanced dust containment and material separation, ensuring precise discharging and contamination prevention for a variety of powder and granulate products.

Efficiently Empties and Contains Dust During Bag Handling

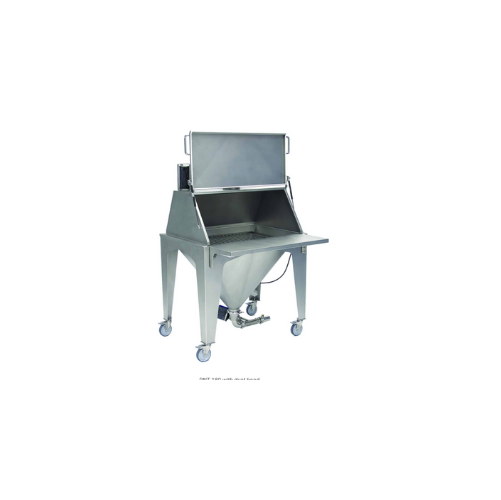

The RNT 180 Bag Rip-And-Tip Dump Station from Volkmann is tailored for demanding applications in the pharmaceutical, chemical, food, and additive manufacturing industries. This station excels in efficient bag emptying and dust containment, ensuring cleanliness and safety in material handling. Its modular design can be configured with an internal grille for bag support, an optional screen to prevent contamination, and a dust hood with door for optimal dust control. The RNT 180 integrates seamlessly into existing operations, whether manual or automated, and is capable of handling various materials, including powders and granulates. Constructed from stainless steel 316L, it offers high corrosion resistance and complies with stringent industry standards. Additionally, it provides options for nitrogen execution for maintaining quality in sensitive environments. Maintenance is streamlined with integrated filtration and dust recovery systems, ensuring prolonged operational efficiency.

Benefits

  • Enhances operational cleanliness with effective dust containment and recovery.
  • Customizable to fit specific process needs with modular components.
  • Corrosion-resistant construction ensures durability in harsh environments.
  • Supports compliance with industry-specific safety and quality standards.
  • Streamlines material handling, reducing manual labor and potential contamination.

General


Applications
Wet materials,Food industry,Chemical industry,Additive manufacturing,Granulates,Powder,Dusty products,Industrial materials,Bagged materials,Pharmaceutical industry
End products
Detergent powders,Spice blends,Coffee blends,Pharmaceutical tablets,Food flavoring mixes,Polymer powders,Metal additive powders,Plastic granules,Chemical resins,Protein powder,Sugar granules,Cement additives
Steps before
Bag loading,Bag preparation,Bag inspection
Steps after
Dust recovery,Material conveying,Filling volume extension,Material agitation,Fluidization
Input ingredients
bagged materials,powder,dusty product,granulate
Output ingredients
empty bags,end product,discharged material
Market info
Volkmann is known for manufacturing vacuum conveying systems, specializing in pneumatic conveying of bulk materials. Their reputation for innovative and reliable equipment solutions in various industries positions them as a trusted provider for engineered-to-order material handling systems.

Technical Specifications


Bag types
Dusty product bags,contained bags
Filling volume range
30–500+ litres
Modular design
Yes
Dust control
Dust hood with door
Filtration system
Integrated filtration and dust recovery
Material compatibility
Stainless steel 316L
Lump breaker integration
Yes
Nitrogen operation
Optional

Operating Characteristics


Working Mechanism
Rip and Tip for bag emptying
Batch vs. Continuous Operation
Batch
Integrated Steps
Bag Feed,Dust Recovery,Empty Bag Compaction
Containment Level
Optional containment with dust hood
Material Transfer Method
Conveyor Belt
Nitrogen Usage
Optional for quality or safety
CIP/SIP
Manual or integrated cleaning
Cleaning Method
Dust hood with filtration system
Modular Design
Configurable with shelves,screens,dust hoods
Filling Volume Range
30 to >500 litres

Material Compatibility


Abrasion resistance
Stainless steel 316L
Biological compatibility
Yes (with food/pharmaceutical grade standards)
Corrosive resistance (e.g. acids)
High (316L stainless steel)
Density/particle size
Varied (accommodates different particle sizes)
Cleanability
High (designed for easy cleaning)

Physical Characteristics


Machine footprint
Compact
Filling volume
30–500+ litres
Discharge method
Conveyor belt
Material
Stainless Steel 316L
Modular design
Yes
Containment options
Dust hood with door

Custom Options


Dust hood
Available / Not available
Filling volume options
30 to >500 litres
Containment
Yes
Modular design
Yes
Material construction
Stainless steel 316L
Nitrogen capability
Available upon request
Shelves for bag handling
Yes
Screen for contamination prevention
Optional
Filtration system
Integrated with dust recovery
Bag compactor
Available
