Automatic piston fillers for liquid products

Optimize your liquid filling process with high-precision piston fillers, engineered to handle diverse viscosities and volumes, ensuring consistent product quality while minimizing waste.

Accurately Fills and Doses Liquid Products

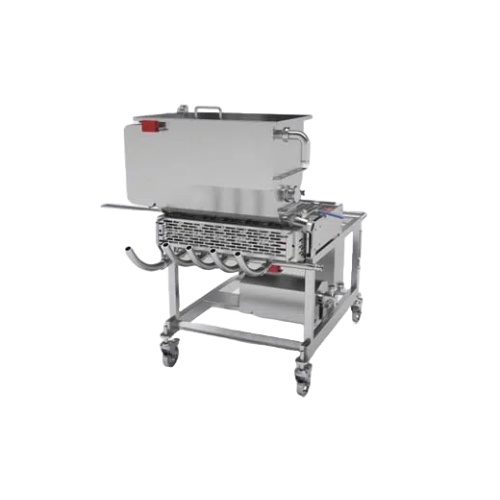

The Cabinplant Piston Filler is an automated solution designed for precise liquid dosing and filling in food processing lines. It excels in accuracy with its servo-operated spindle motor, ensuring consistent fill volumes and minimal spillage across a wide range of viscosities. Capable of handling up to 2 liters per filling, this machine supports diverse applications, including sauces, oils, marinades, soups, and more.

Specially designed for industries like dairy, meat, seafood, and convenience food, it integrates seamlessly into processing and packaging lines. Its “no can–no fill” system prevents waste, while easy-to-dismantle components allow thorough, tool-free cleaning, meeting stringent food safety standards.

The stainless steel construction provides excellent corrosion resistance and longevity, and the optional rotary agitator enhances product consistency. With a focus on high-speed operations, the Cabinplant Piston Filler is a reliable choice for manufacturers aiming to optimize efficiency and maintain product quality. Customization and engineering support are available to tailor the system to specific production needs.

Benefits

  • Ensures precise filling volumes to minimize waste and product give-way.
  • Facilitates quick production changeovers with recipe control for varied product lines.
  • Enhances cleaning efficiency with tool-free disassembly and compliance with food safety regulations.
  • Adapts to diverse product viscosities with customizable settings for flexible production.
  • Reduces operational costs by integrating seamlessly into high-speed, automated production lines.

General


Applications
Dairy food,Soups,Sauces,Ready meals,Seafood,Pet food,Marinades,Meat,Convenience food,Oils,Fruits,Mayonnaise,Vegetables,Poultry,Fish
End products
Olive oil,Apple slices,Tartar sauce,Canned tuna,Tomato ketchup,Ground beef,Balsamic vinaigrette,Shrimp cocktail,Chicken breast strips,Canned peas,Pre-packaged salad,Yogurt,Wet dog food,Microwaveable pasta meals,Chicken noodle soup
Steps before
Product mixing,Agitation
Steps after
Cleaning,Sterilization,Packing
Input ingredients
sauce,oil,marinade,mayonnaise,remoulade,soup,liver pâté
Output ingredients
filled containers,filled trays,filled bottles,portioned liquids
Market info
Cabinplant is known for designing and manufacturing tailored processing solutions for the food industry, specializing in fish, seafood, fruits, and vegetables. They are reputed for their innovative technology and efficiency in delivering customer-specific engineered-to-order equipment.

Technical Specifications


Filling accuracy
Automatic accurate filling
Filling volume
Up to 2 liters per filling
Capacity
Depends on product viscosity and quantity
Dosing type
Piston dosing
Automation
Fully automatic or fully electronic double piston filler
Cleaning method
Easy dismantling for cleaning and sterilization
Material
Stainless steel
Abrasion Resistance
Designed for various viscosities like sauce,oil,marinade
Pneumatic System
Pneumatic cylinder or servo-operated spindle motor

Operating Characteristics


Automation level
Pneumatic / Servo-operated
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP capable / Easy cleaning
Cleaning method
Manual dismantling for cleaning
Changeover time
Quick changeover with recipe control
Air incorporation control
No drip and spillage with cut-off system
Energy efficiency
Optimized for low energy usage
Adaptability
Custom-made to meet individual needs

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel construction
Cleanability
Easy and safe cleaning,CIP/SIP

Product type Characteristics


Viscosity
Low to high
Container size
Variable
Container type
Trays

Physical Characteristics


Control panel type
Touchscreen with recipe control
Compact footprint
Yes
Discharge method
No drip/spillage cut-off system
Customizable hopper
Stainless steel with optional agitator
Design
Stainless steel construction
Filling volume capacity
Up to 2 litres per fill
Mounting Type
Fixed or moving filling valves

Custom Options


Control panel type
Touchscreen HMI
Integration possibilities
Inline/Standalone configurations
Filling valve type
Fixed/Follow packing material
Agitator option
Rotary agitator
Mounting flexibility
Hopper with removable cover
Motor type
Pneumatic/Servo-operated spindle motor
Custom design
Custom-made for user needs
