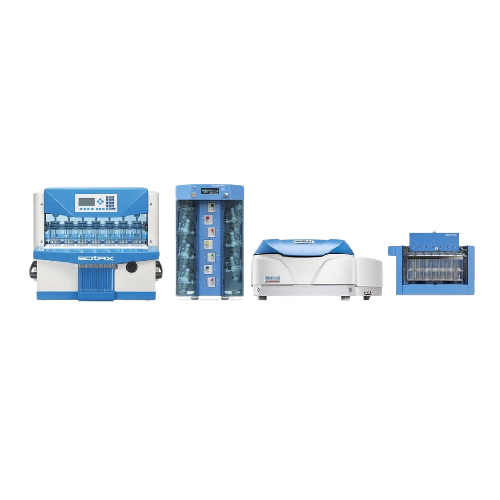

Automated flow-through cell dissolution testing system
Enhance precision in dissolution testing with real-time UV-Vis analysis and offline sample collection, ensuring comprehensive data for pharmaceutical R&D and quality control.

Conducts Precise Dissolution Testing and Analysis
The CE 7smart UV On-/Offline from SOTAX is an advanced flow-through cell dissolution tester designed for pharmaceutical and biotech applications. It specializes in precise dissolution testing, integrating both online UV-Vis analysis and offline sample collection. This equipment facilitates the accurate measurement and analysis of various dosage forms, including tablets, capsules, APIs, and complex formulations such as injectable suspensions and gels. The CE 7smart employs a flexible flow-through cell technique, allowing for real-time adjustments in pH and media, catering to poorly soluble compounds (BCS Class II and IV). It features automated method programming for thorough testing of each fraction and time point, ensuring traceability through comprehensive reporting and an audit trail. With a volume capability ranging from 50 to 5000 mL, it maintains consistent hydrodynamic conditions, meeting demanding pharmaceutical dissolution testing requirements. Designed for seamless integration into laboratory settings, it supports automated flow-through operations and complies with stringent industry standards, offering rapid method validation and customization options.
Benefits
- Enhances accuracy and efficiency in dissolution testing with integrated online and offline capabilities.
- Supports a wide range of pharmaceutical forms, providing versatile testing solutions for intricate formulations.
- Automates complex testing protocols, reducing manual intervention and potential for error.
- Adapts to varying media and solubility needs, offering flexibility for research and development projects.
- Complies with industry standards, ensuring high-quality results and regulatory alignment.
- Applications
- Medical devices,Gels,Pellets,Granules,Microspheres,Catalysts,Stents,Food,Pharmaceutical tablets,Nano suspensions,Fine chemicals,Soft-gelatin capsules,Implants,Animal health,Capsules,Washtabs,Transdermal patches,Creams,Suppositories,Semi-solids,Apis,Powders,Injectable suspensions
- End products
- Plga microspheres,Pet multivitamins,Omeprazole pellets,Metformin granules,Lisinopril tablets,Insulin injectable suspensions,Acetaminophen powders,Hydrocortisone creams,Titanium implants,Glycerin suppositories,Platinum catalysts,Fish oil soft-gelatin capsules,Diclofenac gel,Dishwasher washtabs,Nicotine transdermal patches,Probiotic powder,Zeolites fine chemicals,Cardiac stents,Ibuprofen capsules,Curcumin nano suspensions,Amoxicillin apis
- Steps before
- Pre-formulation,Characterization,Intermediate testing
- Steps after
- IPC testing,QC testing,Analysis with UV-Vis,Traceability and reporting
- Input ingredients
- APIs,oral dosage forms,topical dosage forms,parenteral dosage forms,intermediates,poorly soluble compounds,BCS class II compounds,BCS class IV compounds,biorelevant media
- Output ingredients
- dissolution testing results,real time results,dissolution samples,analytical finishes,traceability reports,UV-Vis analysis data
- Market info
- Sotax AG is renowned for its expertise in manufacturing high-quality pharmaceutical testing equipment, including dissolution testing systems, and has a strong reputation for reliability, precision, and innovation in laboratory and industrial applications.
- Automation
- Automated flow-through cell dissolution testing
- Dissolution Method
- USP 4 Flow-through Cell Testers
- Volume Flexibility
- 50 to 5000 mL
- Media Compatibility
- Biorelevant media from level zero to three
- Software
- WinSOTAX®plus
- Sample Collection
- Online UV-Vis analysis and offline sample collection
- Adaptability
- Open and closed system settings
- Testing Capability
- APIs,oral,topical and parenteral dosage forms
- Traceability
- User's right administration,audit trail
- Automation level
- Manual / PLC / SOTAX Dissolution software
- Batch vs. continuous operation
- Batch / On-line / Off-line
- Real-time analysis
- Integrated online UV-Vis analysis
- Adaptability
- Open and closed system settings
- Traceability
- Complete traceability through user's right administration
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Dosage Form Compatibility
- APIs,Oral,Topical,Parenteral
- Application Variety
- Supports a wide range of products
- Discharge method
- Auto sampler
- Control panel type
- Digital/Touchscreen
- Volume flexibility
- 50 to 5000 mL
- System setting
- Open and closed
- Control Panel Type
- Touchscreen / HMI
- Integration Possibilities
- Online UV-Vis Analysis,Offline Sample Collection
- Volume Flexibility
- 50 to 5000 mL
- Method Programming
- Unlimited
- Media Type Compatibility
- Biorelevant Media Levels 0-3
- Modular Setup
- Open and Closed Systems
- Photo Spectrometer Types
- Multiple Types Available
