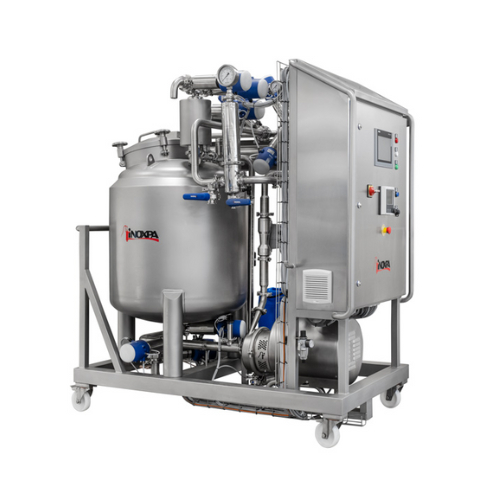

Automated Cip system for small facilities
Ensure impeccable hygiene with a mobile cleaning system designed to efficiently handle sanitizing and heating processes, reducing downtime and maintaining product integrity in compact production facilities.
Cleans and Sanitizes Liquid Processing Systems
The Automatic Mobile CIP System from INOXPA offers an efficient solution for cleaning and sanitizing liquid processing systems across the food, dairy, beverage, and cosmetic industries. This mobile system ensures optimal hygiene by using an integrated, automated cleaning cycle that regulates temperature, flow rate, and chemical concentration. Designed with a 300L insulated tank heated via electrical resistance, it maintains precise temperature control to ensure effective cleaning. The Hyginox SE-28 pump and pneumatic valves work under a robust PLC control system with a SIEMENS S7-1200 CPU, enabling seamless operation. The system supports various material options, such as AISI 316L for the tank and piping, ensuring corrosion resistance and durability. By incorporating features like automatic dosing and flow rate control, this CIP system enhances efficiency, reduces downtime, and adheres to industry standards, making it an essential tool for maintaining production line hygiene.
Benefits
- Enhances production efficiency by integrating seamless cleaning cycles, minimizing downtime.
- Ensures consistent hygiene levels, reducing the risk of contamination in end-products.
- Reduces operational costs by automating the regulation of cleaning parameters, including temperature and chemical concentration.
- Versatile mobility allows easy integration into various production lines across multiple industries.
- Built with corrosion-resistant materials for long-lasting durability and reliability in harsh processing environments.
- Applications
- Cosmetic and pharmaceutical industry,Food industry,Beverage industry,Dairy industry
- End products
- Craft beer,Vitamin supplements,Cream cheese,Herbal extracts,Yogurt,Liquid soap,Skincare creams,Protein shakes,Fruit juice,Flavored milk
- Steps before
- Production,Processing,Mixing,Blending
- Steps after
- Packing,Sterilization,Quality control,Product storage
- Input ingredients
- water,cleaning solution,chemical products
- Output ingredients
- cleaned surfaces,removed impurities,reduced bacteria levels
- Market info
- INOXPA is known for its expertise in manufacturing stainless steel components and equipment, particularly for the food, dairy, cosmetic, and pharmaceutical industries. They are reputed for high-quality, hygienic, and reliable processing solutions.
- Tank Capacity
- 300 L
- Pump Power
- 4 kW
- Electrical Resistance Power
- 18.5 kW
- Automation
- PLC-controlled
- Temperature Regulation
- Automatic
- Material
- AISI 316L (1.4404)
- Tank Insulation
- Mineral wool
- Control Panel
- SIEMENS touchscreen and PLC
- Recommend Product Usage
- Chemical product dosing
- Valve Type
- Automatic butterfly valves
- Flow Rate Control
- Electronic flow meter
- Secondary Pump
- ASPIR A-80,3 kW
- Features
- Base frame with wheels
- Detection Features
- Flow detector in the return line
- Pressure Monitor
- Pressure gauge at pump outlet
- Automation level
- PLC
- Batch vs. continuous operation
- Batch
- Cleaning method
- CIP
- CIP/SIP
- CIP
- Control over operational phase duration
- PLC-controlled
- Temperature control
- Automatic
- Hygiene level
- High
- Pneumatic valve operation
- Automated
- Corrosive resistance (e.g. acids)
- AISI 316L stainless steel
- Cleanability
- CIP compatible
- Abrasion resistance
- AISI 304 stainless steel
- Biological compatibility
- Food-grade materials
- Industry Application
- Food,Dairy,Pharmaceutical
- Tank size
- 300L
- Tank shape
- Insulated
- Base frame
- With wheels
- Control panel type
- Stainless steel electric panel
- Piping material
- AISI 316L (1.4404)
- Collector material
- AISI 316L (1.4404)
- Base frame material
- AISI 304 (1.4301)
- Dimensions
- Not Specified
- Pump type
- Hyginox SE-28
- Mechanical seal material
- Silicon carbide (SiC),Carbon (C)
- Control panel type
- SIEMENS touchscreen
- HMI
- 5.7” SIEMENS touchscreen
- Integration possibilities
- PLC,SIEMENS S7-1200 CPU
- Base frame
- With wheels
- Tank options
- 300 L AISI 304 tank for water recovery
- Flow rate control
- Electronic flow meter and variable-frequency drive
- Return pump
- CIP return pump ASPIR A-80,3 kW
- Detergent concentration dosing
- Pump with conductivity meter
