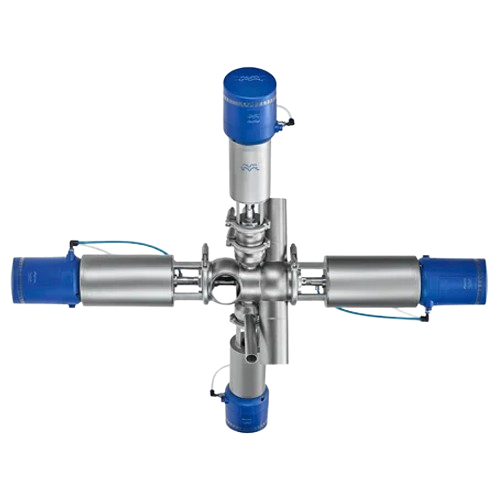

Aseptic mixproof valve for sterile processing

Ensure absolute product safety and optimize cleaning efficiency in sterile processes with this advanced aseptic valve, designed to prevent cross-contamination and maintain sterile barriers during simultaneous fluid handling.

Ensures Sterile Separation of Fluids

The Alfa Laval Aseptic Mixproof Valve is a modular double-seat valve designed to ensure product safety by preventing cross-contamination in sterile fluid management processes. This valve’s hybrid diaphragm with a PTFE face and reinforced EPDM backing provides a reliable hermetic seal, making it ideal for applications in the food, dairy, beverage, biotechnology, and pharmaceutical industries. It enables simultaneous flow of different fluids, supports Cleaning-in-Place (CIP) and Sterilization-in-Place (SIP) procedures, and reduces total cost of ownership by offering flexible configurations that fit specific needs. The valve’s robust construction includes ISO sizes of 51 mm, 63.5 mm, and 76.1 mm, while its compliance with 3-A Sanitary Standards ensures it meets stringent hygiene requirements. Designed for easy maintenance using common parts with Alfa Laval Unique Single Seat Valves, it streamlines inventory and reduces downtime. The pneumatically operated design facilitates remote control, offering efficient integration into automated production lines.

Benefits

  • Enhances production safety by preventing cross-contamination with hermetic sealing.
  • Cuts operational costs by up to 45% through reduced maintenance and energy efficiency.
  • Boosts uptime and productivity with CIP/SIP support for quick, effective cleaning.
  • Offers customizable configurations for seamless integration into existing systems.
  • Complies with 3-A Sanitary Standards, ensuring adherence to strict hygiene requirements.

General


Applications
Food,Home care,Personal care,Biotechnology,Beverage,Dairy,Pharmaceuticals
End products
Liquid pharmaceuticals,Liquid detergents,Creams and lotions,Shampoos,Biotech cultures,Cheese,Nutraceuticals,Sauces and dressings,Carbonated drinks,Yogurt,Fruit juices
Steps before
Purification,Drying,Emulsification
Steps after
Sterilization,Packaging
Input ingredients
food ingredients,dairy products,beverages,fluids
Output ingredients
processed food products,sterile dairy products,sterile beverages,clean fluids
Market info
Alfa Laval is renowned for its expertise in heat transfer, separation, and fluid handling technologies, providing innovative, energy-efficient engineered-to-order solutions for various industries including food, marine, and energy.

Technical Specifications


Valve Type
Aseptic Mixproof
Seal Type
Hermetic with PTFE face and EPDM backing
Valve Sizes
ISO 51 mm,63.5 mm,76.1 mm
Operation
Pneumatically operated
Cleaning Method
CIP/SIP
Modularity
Configurable
Control and Indication Options
ThinkTop,ThinkTop D30,ThinkTop Basic,IndiTop
Steam Valve Options
Aseptic or Hygienic
Mounting Positions
Horizontal or Vertical
Temperature Monitoring
Temperature sensor or transmitter
Seal Material
EPDM or HNBR

Operating Characteristics


Working Mechanism
Pneumatically operated
Integrated Steps
Leakage detection
CIP/SIP
Effective CIP and SIP procedures
Batch vs. continuous operation
Inline Continuous
Automation Level
Remote control via compressed air
Cleaning Method
Highly flushable design
Changeover Time
Easy to configure

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Dual product handling
Yes/No
Mixproof capability
Yes/No

Physical Characteristics


Valve Body Type
Standard / Tangential
Valve Position
Horizontal / Vertical
Model Sizes
ISO 51 mm (2”),63.5 mm (2.5”),76.1 mm (3”)
Hermetic Seal Material
PTFE face with reinforced EPDM backing
Footprint
Compact

Custom Options


Valve body types
Standard,Tangential
Installation position
Horizontal or vertical
Actuator options
Selectable
Seat lift
Adjustable
Steam valve options
Selectable
Control and indication
ThinkTop,ThinkTop D30,ThinkTop Basic,IndiTop
Hygienic/Aseptic steam valves
Options available
Changeover/shutoff steam inlet valve
Optional
ThinkTop integration
Yes,for efficiency
