Aseptic filling solution for tetra classic packaging

Experience efficient aseptic packaging with high-speed operation, offering seamless size conversion and low operating costs—ideal for producing diverse liquid food and beverage packages with minimal resource use.

Aseptically Fills and Seals Liquid Carton Packages

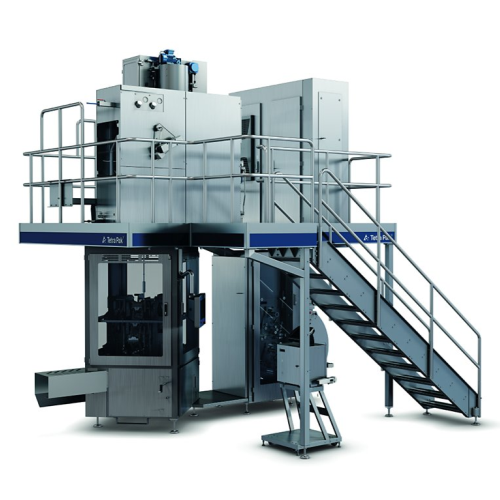

The Tetra Pak® A1 for Tetra Classic® Aseptic is a cutting-edge filling machine by Tetra Pak, designed to aseptically fill and seal various liquid carton packages. This equipment excels in environments where maintaining product integrity and shelf life is paramount, notably in the food and beverage sector. It employs a robust aseptic system comprising a shallow hydrogen peroxide bath and controlled heating to ensure sterilization. Capable of producing up to 17,500 packages per hour, it supports solo operation with features like an operator panel for efficient control and performance monitoring. Energy efficiency is enhanced by optimized utility consumption, contributing to sustainable production. Perfect for applications such as UHT milk, cheese spread, and plant-based beverages, this machine integrates seamlessly into existing production lines, offering easy conversion between package sizes. The fully automatic splicing unit ensures continuous operation without manual intervention, while the machine’s modularity allows for customization to meet specific production needs.

Benefits

  • Enhances production efficiency with a capacity of up to 17,500 cartons per hour.
  • Lowers operational costs through optimized utility use and solo operation.
  • Minimizes risk of contamination with reliable aseptic filling and sealing processes.
  • Supports flexible production lines with easy package size conversion.
  • Sustains long production runs with automated splicing, reducing manual intervention.

General


Applications
Food,Nectar,Still drinks,Cheese,Plant-based products,Ice cream,Powder,Whey,Dairy alternative,Juice,Tomato products,Prepared foods,Dairy
End products
Whey protein bottles,Tomato paste cartons,Fruit juice cartons,Soy milk packages,Oat milk tetra packs,Ketchup packs,Ice cream tetra packs,Cheese spread packages,Milk powder sachets,Soup cartons,Almond milk cartons,Baby food tetra packs,Milk uht packages
Steps before
Product formulation,Ingredient mixing,Product heating
Steps after
Packing,Sealing,Labeling
Input ingredients
packaging material,hydrogen peroxide,viscous products,tomato paste
Output ingredients
Tetra Classic Aseptic packages,125 ml packages,50 ml,65 ml,100 ml,150 ml packages,200 ml packages
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Production Capacity
Up to 17,500 p/h
Size Conversion
5 sizes
Operator Requirement
Solo
Splicing Automation
Automatic Strip Splicing
Utilities Efficiency
Highly efficient
Reel Size
Jumbo
Aseptic System
Hydrogen Peroxide Bath
Sterilisation Method
Controlled heating and evaporation
High Viscosity Aseptic Kit
Available
Filling Method for Viscous Products
Double loop filling control

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual

Product type Characteristics


Viscosity
Liquid / Semi-solid
Heat sensitivity
No
Container size
50 ml – 200 ml
Container shape
Carton / Tetra Classic® Aseptic
Product type
Juice / Nectar / Milk
Filling purpose
Aseptic packaging
Foaming
Yes
Abrasion resistance
Not applicable

Physical Characteristics


Machine footprint
Compact 4.3m high,20m² footprint
Size conversion capability
5-size conversion
Packaging material supply
Jumbo reel for up to 36,000 packages
Splicing unit type
Fully automatic splicing unit
Operator panel type
Tetra Pak Operator Panel (TPOP)

Custom Options


Control panel type
Tetra Pak Operator Panel (TPOP)
