Aseptic dosing system for heat-sensitive ingredients

Enhance product quality and reduce ingredient waste by precisely injecting sensitive additives directly before packaging, preserving the integrity and potency of components like probiotics and vitamins in liquid products.

Injects and Mixes Ingredients with High Precision

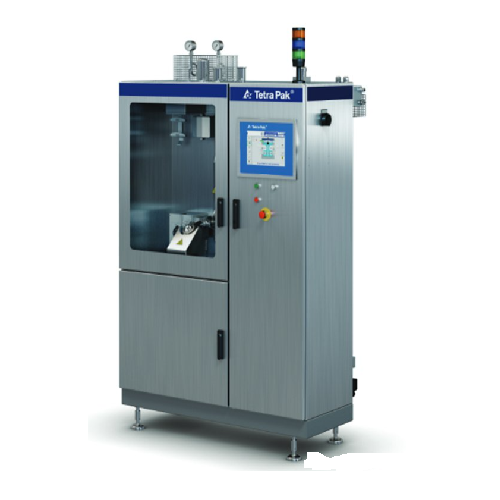

The Tetra Pak Aseptic Dosing unit F offers a high-precision solution for industrial dosing needs. This fully automated system injects heat-sensitive ingredients such as enzymes, vitamins, and probiotics directly into dairy and beverage products after thermal processing, ensuring ingredient integrity and reducing costs associated with overdosing. With a dosing capacity ranging from 0.5 to 30 l/h, it efficiently supports production of lactose-free milk, fortified juices, and plant-based beverages. Its integration between processing and filling machines makes it ideal for continuous operation. The unit’s closed ingredient system simplifies cleaning and lowers contamination risks, while the advanced recipe management system enhances traceability and food safety through barcode verification. Designed for easy ingredient switching, it streamlines processes for diverse applications in the food, beverage, and nutraceutical industries.

Benefits

  • Enhances product quality by ensuring precise ingredient dosages, minimizing waste and cost.
  • Facilitates rapid product development without process adjustments, reducing time-to-market.
  • Increases operational efficiency with a fully automated, continuous production flow.
  • Enhances food safety with a closed ingredient system and traceable recipe management.
  • Lowers cleaning requirements and associated downtime, optimizing production schedules.

General


Applications
Colours,Vitamins,Uht milk,Nectar,Omega 3,Flavours,Still drinks,Plant-based products,Enzymes,Ice cream,Lactase,Juice,Dairy,Probiotics
End products
Colored fruit juice,Lactose-reduced ice cream,Vanilla-flavored soy milk,Omega 3-enhanced plant-based milk,Vitamin-enriched iced tea,Uht almond milk,Probiotic yogurt,Strawberry-flavored yogurt drink,Lactose-free milk,Fortified orange juice
Steps before
Final heat treatment,Ingredient preparation,Aseptic packaging preparation
Steps after
Filling,Packing
Input ingredients
enzymes,lactase,vitamins,flavours,colours,Omega 3,probiotics
Output ingredients
heat sensitive functional ingredients,UHT lactose reduced milk,products with extended shelf life
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Accuracy
High precision dosing
Capacity
Dosing range 0.5 – 30 l/h
Product range 1,000 – 20,000 l/h
Automation
Fully automated
Dosing Method
In-line
Container Size Compatibility
5 or 10 litre aseptic bags

Operating Characteristics


Working mechanism
Automatic aseptic in-line dosing
Integrated steps
Aseptic dosing between processing and filling
CIP/SIP
Not required between production runs
Batch vs. continuous operation
Inline Continuous
Changeover time
Quick switch by changing ingredient bag
Automation level
Fully automated
Cleaning method
Reduces need for cleaning
No intermediate cleaning
Just in time production
Ingredients dosed at last minute before packaging

Material Compatibility


Cleanability
Aseptic transfer hoses
Biological compatibility
Heat sensitive ingredients
Corrosive resistance (e.g. acids)
Stable with Omega 3,probiotics
Density/particle size
Small particles in solution

Physical Characteristics


Control panel type
Integrated PLC
Discharge method
Aseptic transfer hose

Custom Options


Control panel type
Fully automated
Integration possibility
Serves multiple filling machines
Recipe management system
Barcode scanning
