Vibratory sieve shaker for particle size determination
Achieve precise particle size analysis with rapid, reproducible results, crucial for quality control in material processing. Ideal for ensuring uniformity in powders, granules, and slurries, this equipment streamlines testing in diverse manufacturing environments.
Performs Particle Size Determination and Fractionation

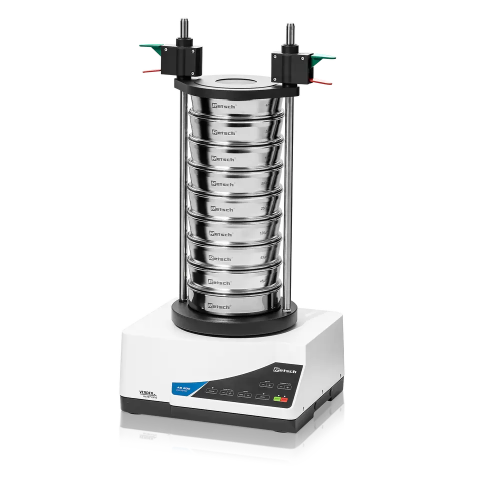

The Sieve Shaker AS 200 Control from Retsch GmbH is an essential tool for precise particle size analysis and fractionation, providing reliable performance in research, development, and quality control applications. This vibratory sieve shaker employs an electromagnetic drive with a patented 3D throwing motion to ensure even sample distribution over the sieve surface, yielding sharp fractions in a short time frame. Ideal for a wide range of materials, it caters to industries such as construction, pharmaceuticals, and food production, producing end-products like concrete mix, pharmaceutical tablets, and aluminum powder coatings.
With a maximum batch capacity of 3 kg, the AS 200 Control facilitates both dry and wet sieving, supporting adaptability with its user-friendly digital settings for time, amplitude, and interval. Up to 99 saved parameter combinations allow seamless integration into automated workflows, while the EasySieve® software offers sophisticated analysis and reporting capabilities. Designed for rigorous environments, this sieve shaker withstands extensive use with minimal maintenance requirements, contributing to operational efficiency and compliance with ISO 9001 standards through certified calibration. Optional accessories and customizable clamping units further enhance its versatility, making it a robust choice for varying sample and operational demands.
Benefits
- Ensures consistent quality control with 100% reproducible results across multiple units.
- Increases operational efficiency with rapid, precise fractionation and short sieving times.
- Facilitates flexible processing with capabilities for both dry and wet sieving applications.
- Minimizes maintenance needs with robust construction and reliable performance over long-term use.
- Enhances analytical accuracy through easy-to-use digital controls and integrated software solutions.
- Applications
- Chemicals,Food,Grains,Metal powders,Construction materials,Washing powder,Cement clinker,Soils,Nuts,Seeds,Plastics,Sand,Minerals,Flours,Fertilizers,Pharmaceuticals
- End products
- Portland cement formulations,Pharmaceutical tablets,Laundry detergent formulations,Oilseed planting seeds,Concrete mix,Plasticizer additives,Instant soup powders,Pvc granules,High-nutrient compost,Baking flour blends,Snack nut coatings,Iron ore pellets,Aluminum powder coatings,Breakfast cereals,Silicon sand for glass making,Topsoil mixes
- Steps before
- Sample Preparation,Grinding,Milling,Mixing
- Steps after
- Particle Size Analysis,Evaluation,Documentation,Packing
- Input ingredients
- cement clinker,chemicals,coffee,construction materials,fertilizers,fillers,flours,grains,metal powders,minerals,nuts,plastics,sand,seeds,soils,washing powder,powders,bulk materials,suspensions
- Output ingredients
- sharp fractions,particle size distribution,representative part samples
- Market info
- RETSCH is known for its high-quality laboratory equipment for sample preparation and particle size analysis, including mills, crushers, and sieve shakers, praised for their precision, durability, and reliability in research and industrial applications.
- Sieving range
- 20 µm - 25 mm
- Max. batch / feed capacity
- 3 kg
- Max. number of fractions
- 11 / 22
- Max. mass of sieve stack
- 6 kg
- Amplitudedigital
- 0.20 – 3.00 mm
- Sieve acceleration
- 1.0 - 15.1 g
- Time display (digital)
- 1 - 99 min
- Interval operation
- 1 - 99 s
- Storable SOPs
- 99
- Suitable for dry sieving
- Yes
- Suitable for wet sieving
- Yes
- USB interface
- Yes
- Including test certificate / can be calibrated
- Yes
- Suitable sieve diameters
- 100 mm / 200 mm / 203 mm (8")
- Max. height of sieve stack
- 620 mm
- Protection code
- IP 21
- Electrical supply data
- 100-240 V,50/60 Hz
- Power connection
- 1-phase
- Dimensions (W x H x D)
- 417 x 212 x 384 mm
- Net weight
- ~ 35 kg
- Standards
- CE
- Working mechanism
- Electromagnetic drive with 3D throwing motion
- Automation level
- Digital controls with up to 99 storable programs
- Batch vs. continuous operation
- Batch
- CIP/SIP
- Not applicable
- Cleaning method
- Manual
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Machine footprint
- 417 x 212 x 384 mm
- Net weight
- ~ 35 kg
- Sieve diameters
- 100 mm / 200 mm / 203 mm (8")
- Max height of sieve stack
- 620 mm
- Feed/discharge method
- Electromagnetic drive
- Control panel type
- Digital controls
- Integration possibilities
- PC control via USB interface
- Programmability
- Up to 99 storable SOPs
