Vibratory sieve shaker
Enhance your quality control processes with this versatile sieve shaker, designed to efficiently separate and fraction particles across a wide range of materials, from cement to food products, ensuring precise and reliable particle size determination for your research and production needs.
Separates and Classifies Particles Efficiently

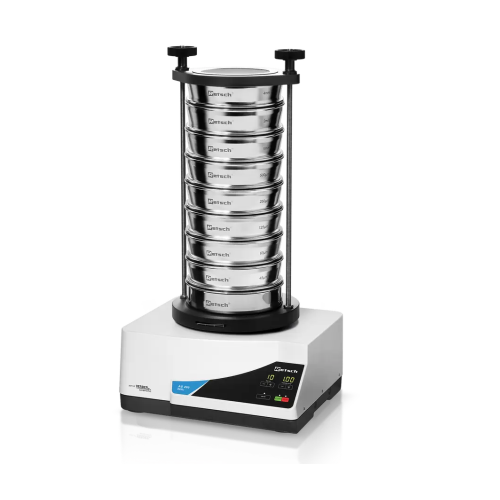

The Vibratory Sieve Shaker AS 200 Basic by Retsch is designed for R&D labs and production monitoring departments requiring precise particle separation. This shaker operates with a patented electromagnetic drive, delivering a 3D throwing motion that enhances separation efficiency for both dry and wet sieving. It’s ideal for applications in agriculture, chemistry, food, and geology, processing materials such as cement and powders into products like Portland cement and pharmaceutical powders. With a batch capacity of up to 3 kg and a sieve stack up to 510 mm in height, it accommodates varying sample sizes. The AS 200 Basic features digital controls for amplitude and timing, ensuring detailed parameter adjustments. Its robust design is maintenance-free and meets CE standards. Optional versatility-enhancing evaluation software and comfort clamping devices are available, supporting diverse operational requirements.
Benefits
- Enhances productivity with rapid and accurate particle size separation.
- Minimizes maintenance costs with a robust, maintenance-free design.
- Offers versatile application compatibility, including dry and wet sieving.
- Ensures precise sample processing with fully adjustable digital controls.
- Facilitates integration into existing systems with optional clamping devices and evaluation software.
- Applications
- Chemicals,Grains,Construction materials,Washing powder,Cement clinker,Soils,Coffee,Metals powders,Nuts,Seeds,Fillers,Plastics,Minerals,Sand,Flours,Fertilizers
- End products
- Potting soil,Polyethylene pellets,All-purpose flour,Concrete mix,Silica sand,Laundry detergent,Pvc powder,Portland cement,Cornmeal,Roasted coffee grounds,Quartz sand,Welding powder,Almond meal,Sunflower seeds,Talcum powder,Ammonium nitrate fertilizer
- Steps before
- Grinding,Sample Preparation,Mixing,Bulk Material Collection
- Steps after
- Quality Control,Packing,Fraction Collection,Further Analysis
- Input ingredients
- cement clinker,chemicals,coffee,construction materials,fertilizers,fillers,flours,grains,metal powders,minerals,nuts,plastics,sand,seeds,soils,washing powder
- Output ingredients
- separated fractions,fractioned particles,particle size determination,sharp fractions
- Market info
- RETSCH is known for its high-quality laboratory equipment for sample preparation and particle size analysis, including mills, crushers, and sieve shakers, praised for their precision, durability, and reliability in research and industrial applications.
- Sieving motion
- 3D throwing motion
- Batch / feed capacity
- Max. 3 kg
- Number of fractions
- Max. 9 / 17
- Mass of sieve stack
- Max. 4 kg
- Amplitude
- Digital,1 - 100% (0 - 3 mm)
- Time display
- Digital,1 - 99 min
- Suitable for dry sieving
- Yes
- Suitable for wet sieving
- Yes
- Sieve diameters
- 100 mm / 200 mm / 203 mm (8")
- Height of sieve stack
- Max. 510 mm
- Protection code
- IP 21
- Power connection
- 1-phase
- Dimensions (W x H x D)
- 417 x 212 x 384 mm
- Net weight
- ~ 35 kg
- Standards
- CE
- Working mechanism
- Electromagnetic drive
- Sieving motion
- 3D throwing motion
- Batch vs. continuous operation
- Batch
- Time display
- Digital,1 - 99 min
- Adjustment
- Free adjustment of time and performance
- Process parameters
- Digital setting and display
- Amplitude control
- Digital,1 - 100% (0 - 3 mm)
- Suitable for sieving type
- Dry and wet sieving
- Max. batch/feed capacity
- 3 kg
- Abrasion resistance
- Moderate
- Cleanability
- Easy
- Density/particle size
- 0.5–2.5 g/cm³ / 20 µm - 25 mm
- Machine footprint
- 417 x 212 x 384 mm
- Net weight
- ~ 35 kg
- Maximum height of sieve stack
- 510 mm
- Suitable sieve diameters
- 100 mm / 200 mm / 203 mm (8")
- Clamping Devices
- Standard,Comfort,each for wet and dry sieving
- Adjustment of Process Parameters
- Free adjustment (time,performance)
- Sieve Diameter
- 100 mm / 200 mm / 203 mm (8")
- Sieve Stack Height
- Up to 510 mm
- Suitable for Sieving Type
- Dry and Wet Sieving
- Amplitude Adjustment
- Digital,1 - 100% (0 - 3 mm)
- Time Display
- Digital,1 - 99 min
- Drive Type
- Electromagnetic with 3D throwing motion
