Vibratory feeder for bulk materials and fine powders

Ensure consistent material flow and precise feeding for optimized processing, addressing challenges in handling diverse bulk materials and fine powders in high-speed, automated operations.

Feeds and Conveys Bulk Materials Precisely

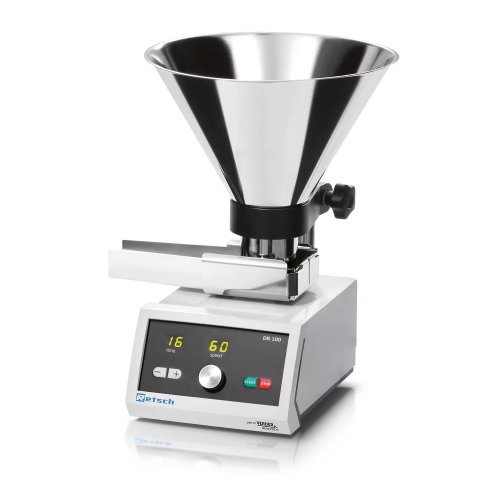

The Vibratory Feeder DR 100 from Retsch is engineered to provide precise and continuous feeding of bulk materials and fine powders across various industrial applications. Utilizing an electromagnetic vibration mechanism, it delivers uniform material flow essential for downstream processes. The DR 100 is versatile, adaptable to different material properties, and suitable for industries such as agriculture, chemistry, and pharmaceuticals. Capable of handling different chute sizes, it accommodates materials ranging from smaller powders to larger granules, making it ideal for end-products like Portland cement, instant coffee, and polypropylene beads. The feeder operates with digital control, allowing adjustable flow and time settings for seamless integration into automated production lines. Designed for easy maintenance, the DR 100 supports integration with laboratory and production setups, enhancing efficiency and consistency. With standard compliance and available customizations, it offers robust performance for demanding operational environments.

Benefits

  • Enhances production efficiency with consistent material flow.
  • Reduces operational costs through precise digital control settings.
  • Offers flexibility for various material types, supporting diverse industrial needs.
  • Simplifies integration with existing systems due to its compact design.
  • Minimizes maintenance with a user-friendly, no-maintenance construction.

General


Applications
Chemicals,Grains,Construction materials,Washing powder,Cement clinker,Minerals,Metals,Soils,Coffee,Nuts,Seeds,Plastics,Sand,Powders,Flours,Fertilizers
End products
Iron filings,Potting soil,Peanut roasting,Concrete mix,Silica sand,Chemical additives,Wheat flour,Laundry detergent,Cornmeal,Portland cement,Quartz sand,Polypropylene beads,Sunflower seeds,Talcum powder,Instant coffee,Ammonium nitrate fertilizer
Steps before
Grinding,Sample Preparation,Mixing
Steps after
Sieving,Particle Analysis,Sample Dividing
Input ingredients
cement clinker,chemicals,coffee,construction materials,fertilizers,fillers,flours,grains,metal powders,minerals,nuts,plastics,sand,seeds,soils,washing powder
Output ingredients
uniform pourable bulk materials,fine powders
Market info
RETSCH is known for its high-quality laboratory equipment for sample preparation and particle size analysis, including mills, crushers, and sieve shakers, praised for their precision, durability, and reliability in research and industrial applications.

Technical Specifications


Drive Frequency
50/60 Hz
Digital Speed Setting
1 - 99 / 0 - 5 l/min
Feed Rate
Adjustable via interface
Chute Width
15 mm / 40 mm / 75 mm / 75/40 mm
Chute Length
210 mm
Hopper Volume
2.8 l (15 mm,40 mm chute),3.5 l (75 mm,75/40 mm chute)
Material Feed Size
,lt
2 mm (15 mm chute),,lt
6 mm (40 mm chute),,lt
12 mm (75 mm chute)
Volume Flow Control
Infinitely adjustable
Time Setting
Digital,1 - 99 min / continuous operation
Electrical Supply
Different voltages
Power Connection
1-phase
Dimensions
260 x 420 x 280 mm (W x H x D)
Net Weight
9.7 kg
Standards
CE

Operating Characteristics


Working Mechanism
Electromagnetic vibration
Control Type
Digital speed and time setting
Automation Level
Manual / External Interface Control
Feeding Method
Continuous feeding
Cleaning Method
Easy cleaning,push-fit chute
Changeover Time
Quick due to compact unit design
Adjustability
Material bed level and volume flow adjustable

Material Compatibility


Cleanability
Easy cleaning of the push-fit chute
Density/particle size
0.5–2.5 g/cm³ / Suitable for pourable bulk materials

Physical Characteristics


Machine footprint
260 x 420 x 280 mm
Net weight
9.7 kg
Hopper volume
2.8 l (15 mm,40 mm chute),3.5 l (75 mm,75/40 mm chute)
Chute width
15 mm / 40 mm / 75 mm / 75/40 mm
Chute length
210 mm
