Vertical ribbon mixer for solids and powders

Achieve rapid, uniform mixing of powders and solids while preserving particle integrity, ideal for enhancing batch consistency in high-precision production environments.

Mixes and Homogenizes Solids and Powders

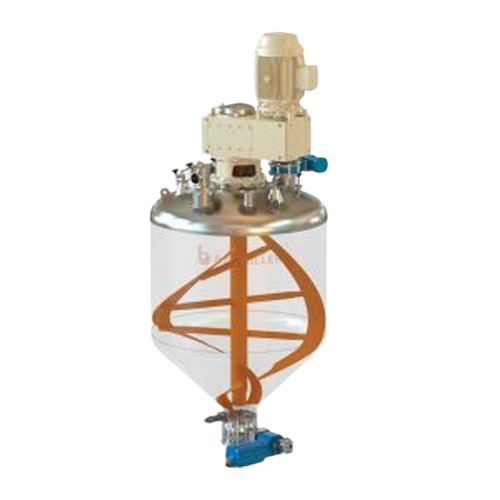

The SUPRAMIX (MVC) from Bachiller is an industrial vertical ribbon mixer tailored for precise mixing and homogenization of powders and solids within various sectors such as food, chemical, and pharmaceutical. Operating with a vertical mixing spiral, it promotes an upward flow of perimeter product alongside a central downward flow, ensuring thorough mixing in short cycles of under 10 minutes. This system allows for liquid injection during processing, enhancing its versatility across different formulations. With a capacity range from 100L to 30,000L, the mixer efficiently handles various applications, including infant formula, instant coffee granules, and pharmaceutical excipients.

The SUPRAMIX (MVC) incorporates batch-wise operation, providing reproducible and easy-to-scale processes, while its cantilever execution simplifies maintenance by eliminating bottom support. Its construction allows for complete discharge, supporting efficient transitioning between batches. Available with options for internal mirror polishing and external matte or mirror finishes, it is built with high operational standards, including CE marking compliance. For enhanced operational flexibility, additional features like liquid injection by spraying and ATEX certification for zone 20/0 are available. Ideal for production environments prioritizing safety, efficiency, and product integrity, the SUPRAMIX ensures reliable performance across its varied industrial settings.

Benefits

  • Reduces batch processing time with short 10-minute mixing cycles.
  • Ensures complete product discharge, minimizing waste and optimizing yield.
  • Lowers maintenance costs due to its cantilever design, eliminating bottom support components.
  • Facilitates safe operation in explosive environments with ATEX certifications.
  • Provides versatile mixing options with liquid injection and variable capacity configurations.

General


Applications
Powder detergents,Pellets,Antibiotics,Crystals,Pesticides,Minerals,Saccharine,Sweeteners,Food,Dextrin,Atomized detergents,Stearates,Cocoa powder,Polymers,Fine chemicals,Feed additives,Vitamins,Micronized sulfur,Spices,Candies,Vitamin complements,Peptides,Food preparations,Amino acids,Powders humectation,Phosphates,Gelatin,Refractories,Carbonate,Bakery ingredients,Chemical additives,Additives,Soluble drinks,Milk powder,Plastics,Resins,Improvers,Baby food,Ready mix,Pharmaceutical excipients,Pharmaceuticals,Colorants,Pastry ingredients,Cellulose,Veterinary,Apis,Flavors,Muesli,Soluble coffee,Diet food,Aromas
End products
Detergent powders,Antibiotic capsules,Pharmaceutical gel capsules,Infant formula,Wood pellets,Vitamin c tablets,Saccharin sweetener,Curry spice blend,Laundry detergent powders,Multivitamin gummies,Protein peptides,Gelatin desserts,Instant pastry dough,Color matched polymer resins,Polyethylene sheets,Plastic pellets,Industrial color pigments,Cornflakes,Food flavor extract,Bakery cake mix,Veterinary tablets,Arginine supplements,Cocoa drink mix,Api formulated tablets,Mineral supplement tablets,Pet food additives,Instant coffee granules
Steps before
Drying,Homogenisation,Grinding,Purification
Steps after
Packing,Dosing,Sterilization
Input ingredients
Additives,Flavors,Aromas,Baby Food,Soluble drinks,Soluble coffee,Cocoa powder,Vitamin complements,Dextrin,Diet food,Sweeteners,Spices,Gelatin,Candies,Milk powder,Food preparations,Bakery ingredients,Pastry ingredients,Ready mix,Micronized sulfur,Carbonate,Colorants,Cellulose,Detergents,Stearates,Phosphates,Pellets,Minerals,Pesticides,Plastics and pellets,Polymers,Refractories,Resins
Output ingredients
Homogenized powder mixtures,Blended products,Complete discharge
Market info
Bachiller specializes in industrial engineered-to-order equipment, known for high-quality process equipment in the chemical, petrochemical, pharmaceutical, and food industries. They are recognized for their expertise in designing and manufacturing pressure vessels, reactors, and mixing equipment.

Technical Specifications


Mixing Capacity
100L up to 30,000L
Mixing Time
Maximum 10 minutes
Operation Type
Batch-wise operation
Discharge Method
Complete discharge
Design
Spiral mixer in cantilever execution
Surface Finish
Internally mirror polished Ra ≤ 0.6 µm
Liquid Addition Functionality
Liquid injection by spraying
Pressure and Vacuum Design
Design under pressure and/or vacuum
Sanitary Design
cGMP,FDA validated
ATEX Execution
ATEX execution for internal zone 20/0
Heating/Cooling Option
Heating/cooling jacket

Operating Characteristics


Mixing Mechanism
Vertical Ribbon
Mixing Time
Maximum 10 minutes
Batch Operation
Batch-wise operation
Discharge Method
Complete discharge
Automation Level
Repetitive process
Spiral Design
Cantilever execution
Additional Capabilities
Liquid Injection
Maintenance Requirements
Low Maintenance

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Liquid Addition Capability
Allowed during process


CE marking
According to the Safety for Machinery Directive 2006/42/CE
ATEX certification
Execution for internal zone 20/0 officially stamped
FDA compliance
Validated sanitary design according to cGMP

Physical Characteristics


Discharge method
Complete discharge
Internal finish
Mirror polished Ra ≤ 0.6 µm
External finish
Matte or mirror polished
Shape
Vertical with mixing spiral
Design execution
Cantilever execution without any bottom support
Capacity
100L up to 30,000L

Custom Options


Internal Finishing
Mirror polished Ra ≤ 0.6 µm
External Finishing
Matte or mirror
Liquid Injection
By spraying
Heating/Cooling Jacket
Available
Design Pressure/Vacuum
Yes,refer to dryer and reactor
Mixing Intensification
Choppers for lump breaking
Lid Opening
Hydraulic
Sanitary Design
cGMP,FDA validated
ATEX Execution
Zone 20/0
Loading and Dosing Systems
Available
Electronic Weighing Systems
Available
Formulation Installations
Available
Product Packing Systems
Available
