Vertical packing pattern case packer

Optimize your packaging efficiency with this high-speed case packer designed for seamless integration into vertical packing operations, maximizing pallet stability and reducing material usage through its innovative wraparound design.

Packs and Palletizes Products in Vertical Cases

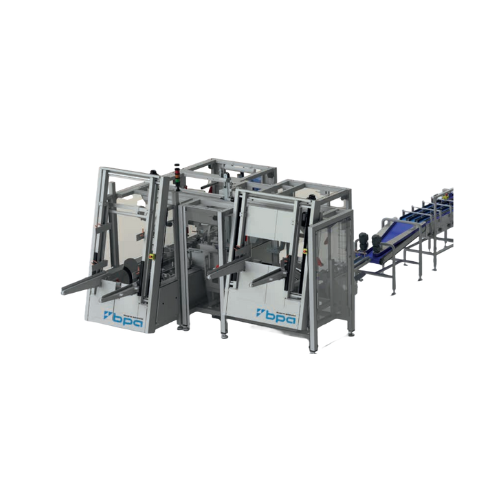

The Wraparound 200 by BluePrint Automation is a specialized case packer designed for wrapping products in vertical packing patterns. It differentiates itself by forming tightly wrapped cases that minimize material usage while enhancing palletizing strength. Ideal for a wide array of applications in industries like bakery, dairy, pharmaceuticals, and snacks, it effectively packs products such as bread loaves, cheese blocks, and vitamin tablets. This equipment operates automatically at high speeds, ensuring a continuous workflow suited for high-volume production environments. Featuring seamless integration into existing production lines, the Wraparound 200 offers flexibility with various secondary packaging and end-of-line solutions. Its engineering supports custom configurations to match specific production requirements, while its robust construction ensures longevity and reliability.

Benefits

  • Optimizes material usage with tight, space-saving wraps that enhance pallet stability.
  • Increases production efficiency with high-speed, continuous operation.
  • Minimizes labor requirements through automated packaging processes.
  • Accommodates diverse product types and patterns, offering versatility across industries.
  • Enhances shipping efficiency and reduces distribution costs with durable case construction.

General


Applications
Personal care,Frozen,Protein,Pet food,Snacks,Bakery,Confectionery,Fresh produce,Dry food,Pharma,Ice cream,Dairy
End products
Fresh apples,Dried pasta,Ice cream tubs,Vitamin tablets,Bread loaves,Frozen vegetables,Chicken breast packages,Potato chips bags,Chocolate bars,Cheese blocks,Dog food cans,Shampoo bottles
Steps before
Product Packaging,Primary Packaging
Steps after
Palletizing,Distribution,Shipping Container Placement,Shelf Ready Packaging
Input ingredients
die cut packaging,products,secondary container,pack patterns
Output ingredients
wrap around cases,trays,shelf ready packaging,shipping container,palletized products
Market info
BluePrint Automation is known for designing and manufacturing innovative packaging automation systems, specializing in end-of-line robotic case packing solutions for various industries, enhancing operational efficiency and product handling with a strong reputation for quality and innovation.

Technical Specifications


Packaging Type
Wrap around case
Packing Pattern
Vertical
Material Usage
Less material per case
Palletizing Strength
Higher strength
Case Magazine Capacity
Twice as many cases as standard RSC
Flexibility
More flexibility in SRPs

Operating Characteristics


Automation level
PLC
Batch vs. continuous operation
Batch
Cleaning method
Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Wrap around cases
Packaging orientation
Vertical packing pattern
Material efficiency
Less material usage
Strength requirement
Tight and strong for palletizing
Flexibility
More SRP variations compared to RSCs
Capacity
Twice the case magazine capacity

Physical Characteristics


Case magazine capacity
Twice as many as standard RSC
Wrap around case design
Tight product fit,less material
Packing pattern orientation
Vertical
Product range
Die cut packaging
Flexibility and variation
Increased SRPs

Custom Options


Control panel type
HMI / Touchscreen
Integration possibilities
PLC / SCADA
Product changeover capability
Quick / Easy
