Vertical form, fill and seal packaging system for small bags
Maximize efficiency with small bag portioning for food and non-food items, featuring precise portion control and flexible operations. Ideal for high-speed production lines, this system ensures consistent packaging results with its user-friendly design and versatile capabilities, from liquids to solids.
Packages and Portions Solids and Liquids Efficiently

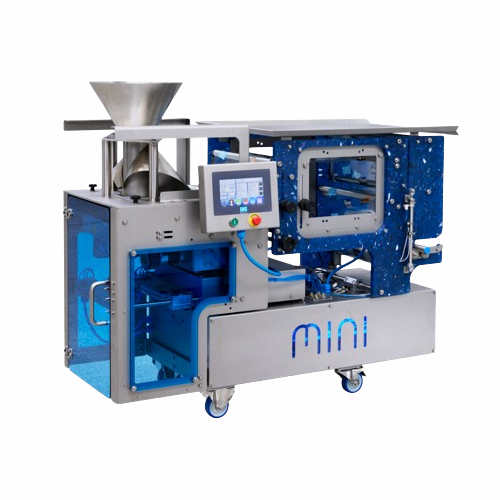

The MINI Vertical Form Fill and Seal Machine from KRONEN GmbH, in partnership with GKS Packaging B.V., stands out for its compact, user-friendly design tailored for high-speed portion packaging. It specializes in creating precise pillow and self-standing bags for a diverse range of products, including foods like nuts, salads, and sauces, as well as non-food items. Capable of producing up to 65 bags per minute, this machine seamlessly integrates into both high-care and low-care production environments. It features a servo-driven film transport system for precise bag dimensions and supports manual or automatic filling, making it highly versatile. The machine’s low power and air consumption contribute to cost-efficient operations, while its modular build ensures easy maintenance and quick component replacements. Optional accessories, such as gas flushing (MAP) and printing systems, enhance functionality, supporting extended product shelf life and comprehensive labeling. With its small footprint and robust, hygienic design, the MINI offers flexibility and reliability for small- to medium-scale food processing and packaging operations.
Benefits
- Enhances packaging efficiency with its high-speed capability of up to 65 bags per minute.
- Optimizes space utilization with its compact design, allowing for flexible placement and integration.
- Lowers operational costs through reduced power and air consumption.
- Increases product freshness with optional gas flushing for extended shelf life.
- Simplifies maintenance and minimizes downtime with its modular design and quick component replacements.
- Applications
- Salad,Sauces,Fruit,Non-food products,Nuts,Dressings,Vegetables,Liquids
- End products
- Ketchup,Apple slices,Peanuts,Pet food portions,Caesar salad mix,Orange juice,Baby spinach,Almond butter,Salsa,Olive oil vinaigrette
- Steps before
- Preparation,Cutting,Weighing,Dosing
- Steps after
- Labeling,Sealing,Quality Inspection,Distribution
- Input ingredients
- cut vegetables,fruits,lettuce,nuts,sauces,dressings,non-food products
- Output ingredients
- small packages,pillow bags,self-standing bags
- Market info
- KRONEN is known for manufacturing industrial food processing equipment, specializing in washing, cutting, peeling, and packaging machinery, recognized for innovation, high quality, and efficiency in automated food processing solutions.
- Packaging Speed
- up to 65 bags/minute
- Bag Width
- 40 to 160 mm
- Bag Length
- Unlimited
- Film Width
- max. 160 mm
- Film Thickness
- 25 - 120 μ
- Film Roll Inner Diameter
- 76 mm (3")
- Film Roll Outer Diameter
- 320 mm
- Electrical Power
- 1.2 kW
- Voltage
- 230 V
- Frequency
- 50 Hz
- Working Pressure
- 6 bar
- Air Consumption
- 156 NL/min
- Dimensions LxWxH
- 1330 x 650 x 1140 mm
- Bag Length per Sealing Process
- max. 170 mm
- Bag type flexibility
- Pillow / Self-standing
- Bag width range
- 40–160 mm
- Bag length control
- Unlimited / Precise
- Max production speed
- Up to 65 bags/min
- Manual and automatic filling
- Ergonomic height for manual / Compatible with automatic systems
- Mobility
- Casters for easy movement
- Integration capabilities
- Compatible with various weighing and dosing systems
- Servo-driven film transport
- Ensures precise bag length
- Low power and air consumption
- Energy-efficient design
- Film type compatibility
- PE,PP,laminate films
- Flexible changeover
- Rapid film change
- Cleaning and maintenance simplicity
- Open and hygienic design
- Process control
- Allen Bradley PLC with 99 program memory locations
- Cleanability
- Easy to clean design
- Corrosive resistance (e.g.,acids)
- High resistance
- Recycled components
- Recycled ocean plastic used
- Machine Footprint
- 1330 x 650 x 1140 mm
- Bag Width
- 40 to 160 mm
- Bag Length
- Unlimited
- Film Roll Outer Diameter
- 320 mm
- Film Roll Inner Diameter
- 76 mm (3”)
- Film Thickness
- 25 - 120 μ
- Mobile Design
- Equipped with casters
- Standard Bag Type
- Pillow Bags
- Optional Bag Type
- Self-standing Bags
- Control panel type
- 7-inch full-color touch screen
- Modular design
- Yes
- Integration possibilities
- Integrates with various dosing and weighing systems
- Mobile configuration
- Equipped with casters for mobility
- Film type processing
- Can process all conventional film types
- Bag type
- Pillow bags,optionally self-standing bags
- Bag width
- Adjustable from 40 mm to 160 mm
- Bag length
- Unlimited
