Versatile spray dryer for dairy and plant-based powders
Achieve precise moisture control and optimal powder functionality across a diverse range of products with this versatile spray dryer, tailored for demanding production environments in dairy and plant-based industries.
Produces and Agglomerates Dairy and Plant-Based Powders

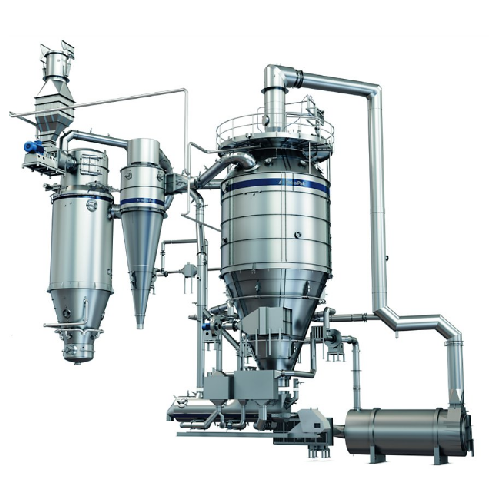

The Tetra Pak® Spray Dryer Wide Body is an advanced drying solution that enables continuous production of diverse powders, including dairy, plant-based, and infant formula, with a capacity range of 1 to 30 tonnes per hour. Featuring a straight tube air distributor with a high-pressure nozzle assembly, it ensures even drying air distribution while minimizing energy consumption. The modular design allows for scalability, maintaining optimal atomization as capacity increases. Ideal for applications requiring fine particle agglomeration and instantization, this system supports multiple stages including drying, cooling, and mixing. Efficient integration into production lines is achieved through customizable multiple feed systems and a middle pressure fines transport system, ensuring constant operation and reduced downtimes. Compliant with industry standards, it incorporates hygienic design elements and includes a bag filter for optimal particle separation and minimal emissions. Automated monitoring systems enhance operational safety and precision, meeting stringent quality requirements across food, dairy, and nutritional product industries.
Benefits
- Increases production flexibility with customizable feed systems and scalable capacity.
- Minimizes energy consumption via efficient air distribution and heat recuperation.
- Enhances product quality with precise agglomeration and instantising capabilities.
- Ensures continuous operation, reducing downtime through integrated process monitoring.
- Compliant with hygienic standards, supporting safety in food and infant formula production.
- Applications
- Dairy powders,Whey derivatives,Milk powders,Whey powders,Baby food,Plant-based powders
- End products
- Skimmed milk powder,Pea protein powder,Hydrolyzed whey protein,Infant formula,Almond milk powder,Fortified baby cereal,Lactose powder,Soy protein isolate
- Steps before
- Concentration,Emulsification,Homogenization,Pre-mixing
- Steps after
- Agglomeration,Packing,Cooling,Sieving
- Input ingredients
- milk,whey,whey derivatives,plant-based products,baby food concentrate
- Output ingredients
- milk powder,whey powder,whey derivative powder,plant-based powder,baby food powder,agglomerated products,instantised (lecithinated) products
- Market info
- Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.
- Capacity
- 1 to 30 tonnes of powder output per hour
- Spray Nozzle System
- High-pressure nozzle assembly
- Air Distributor Design
- Straight tube
- Drying Air Pressure Drop
- Relatively low
- Nozzle Adjustment
- Swivel adjustable lances
- Drying Stages
- Single and multi-stage
- Drying Chamber Temperature
- Maximum air inlet temperature of 280˚C
- Energy Optimization
- Exhaust air heat recuperator
- Cooling System
- Chamber roof cooling system and camera cooling system
- Filtration System
- Bag filter
- Batch vs. continuous operation
- Continuous
- Automation level
- Fully automatic
- CIP/SIP
- CIP capable
- Energy efficiency
- Optimized with exhaust air heat recuperator
- Cleaning method
- Integrated CIP
- Changeover time
- Minimal due to modular design and automation
- Handling of fines
- Middle pressure fines transport system
- Powder Deposit Prevention
- Chamber roof cooling system
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Agglomeration risk
- Suitable for agglomerated products
- Foaming
- Low foaming risk ensured by design
- 3A Sanitary Standards
- Yes
- GMP Compliance
- Yes
- FDA Materials
- Yes
- CE marking
- Yes
- EHEDG certification
- Yes
- ATEX certification
- Yes
- ISO 9001
- Yes
- ISO 22000
- Yes
- Machine footprint
- Varies with capacity
- Discharge method
- Exhaust air
- Recombined fines
- Control panel type
- Modular
- Tank shape/size
- Wide body design
- Feed method
- Multiple feed systems
- Exhaust system
- Exhaust air heat recuperator
- Control panel type
- HMI/PLC
- Swivel adjustable lances
- Yes
- High-pressure nozzle assembly
- Integrated
- Multiple venturi deployments
- Modular design
- Middle pressure fines transport system
- Optional
- Multiple concentrate feed systems
- Yes
- Spray monitoring system
- Camera system
