Versatile confectionery cut and wrap system

Enhance your confectionery production with a high-speed solution capable of accurately sizing, cutting, and wrapping various sweets, ensuring seamless integration into your line for consistent, quality results.

Versatile confectionery cut and wrap system
Great for making:
Versatile confectionery cut and wrap system Chewing gum Versatile confectionery cut and wrap system Lollipops Versatile confectionery cut and wrap system Toffees Versatile confectionery cut and wrap system Hard Candy Versatile confectionery cut and wrap system Bubble gum Versatile confectionery cut and wrap system Toffee Versatile confectionery cut and wrap system Caramel Versatile confectionery cut and wrap system Fruit chews

Sizes, Cuts, and Wraps Confectionery Products

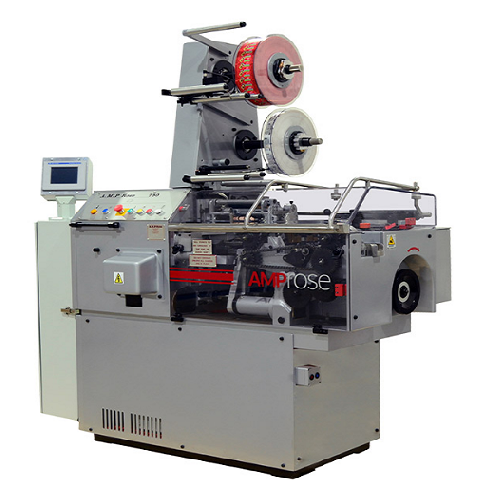

The 750 Cut and Wrap Machine from AMP-Rose is a versatile solution for confectionery manufacturers needing precise and efficient handling of a wide range of sweets. Designed for continuous high-speed operations, it utilizes a straightforward yet robust mechanism to size, cut, and wrap products like toffees, caramels, bubble gums, and lollipops directly from a Batch Roller or extruder. Capable of processing up to 750 pieces per minute, the machine’s PLC system provides intelligent automation, including real-time diagnostics and minimal operator intervention. A solid cast iron frame ensures durability, while interchangeable parts offer flexibility for various product dimensions and wrapping styles. The machine complies with CE standards, prioritizing safety with interlocked guards. Its design also allows for reduced maintenance times, supported by a range of material options for different packaging requirements. AMP-Rose provides engineering support for customization to meet specific production needs.

Benefits

  • Enhances productivity with high-speed operation, processing up to 750 pieces per minute.
  • Minimizes operator intervention through automated detection and wrapping, reducing labor costs.
  • Ensures consistent product quality with precise sizing and cutting capabilities.
  • Lowers maintenance requirements due to easy-access design and minimal servicing needs.
  • Complies with safety standards, providing a secure operation environment.

General


Applications
Hard candies,Confectionery,Bubble gum,Toffee,Sweets,Lollipops,Caramel,Chews
End products
High boiled sugar sweets,Lollipop sticks,Toffee bars,Bubble gum balls,Fruit chews,Hard candy rounds,Soft chew squares,Caramel cubes
Steps before
Batch rolling,Rope sizing,Extrusion
Steps after
Packing,Wrapping,Final inspection
Input ingredients
toffee,fruit chew,bubble gum,high boiled sugar,rope form confectionery,Batch Roller,Rope Sizer,extruder
Output ingredients
square sweets,rectangular sweets,round sweets,cylindrical sweets,lollipops,cut confectionery,wrapped confectionery
Market info
AMP Rose is renowned for manufacturing and supplying high-quality machinery for the confectionery, chocolate, and snack industries, offering innovative solutions and engineered-to-order equipment tailored to meet specific customer needs.

Technical Specifications


Output Speed
350 – 750 p/m
Length (Double Twist)
16-84 mm
Width (Double Twist)
11-25 mm
Thickness (Double Twist)
6-17 mm
Diameter (Double Twist)
9.5-17 mm
Length (Point/End Fold)
16-50 mm
Width (Point/End Fold)
11-25 mm
Thickness (Point/End Fold)
5-17 mm
Diameter (Whirl)
16-25 mm
Length (Whirl)
16-32 mm
Width (Whirl)
16-25 mm
Thickness (Whirl)
8-19 mm
Length (Lollipop)
32-70 mm
Width (Lollipop)
11-25 mm
Thickness (Lollipop)
6-18 mm
Length (Long Piece)
84-152 mm
Width (Long Piece)
11-25 mm
Diameter (Long Piece)
9.5-17 mm
Automation
PLC-controlled
Wrapping Materials
Waxed paper,cellophane,PVC,polypropylene,paper backed aluminium foil
Standard Core Diameters
57 mm,77 mm
Maximum Reel Diameter
355 mm

Operating Characteristics


Working Mechanism
Cut and Wrap
Automation level
PLC-controlled
Batch vs. continuous operation
Continuous
Cleaning Method
Manual
Changeover time
Minimal due to design

Material Compatibility


Wrap material compatibility
Waxed paper
Wrap material compatibility
Cellophane
Wrap material compatibility
PVC
Wrap material compatibility
Polypropylene
Wrap material compatibility
Paper backed aluminium foil

Product type Characteristics


Product Shape Compatibility
Square / Rectangular / Round / Cylindrical
Product Type
Toffee / Fruit Chew / Bubble Gum / Hard Candy
Wrapping Style
Double Twist / End Fold / Lollipop Fold / Whirl Fold
Size Range
Length
Output Capacity
Up to 750 pieces per minute
Rope Form Compatibility
Batch Roller / Rope Sizer / Extruder
Reel Size
Core Diameter


Health and Safety Standards
Current health and safety standards

Physical Characteristics


Machine Footprint
N/A
Feed Method
Batch Roller/Rope Sizer or Extruder
Discharge Method
Wrapping Wheel
Wrapping Styles
Double Twist,Double Point End Fold,Whirl,Lollipop Twist
Product Shape
Square,Rectangular,Round,Cylindrical
Size Range (Double Twist)
Length
Size Range (Point/End Fold)
Length
Size Range (Whirl)
Diameters
Size Range (Lollipop)
Length
Size Range (Long Piece)
Length
Material Types
Waxed paper,cellophane,PVC,polypropylene,paper-backed aluminium foil
Reel Size - Core Diameter
Standard core diameters of 57mm and 77mm
Reel Size - Maximum Diameter
355mm

Custom Options


Control system type
PLC-controlled
Changeover parts
Available for various product shapes and sizes
Wrapping style options
Square,rectangular,round,cylindrical
Wrapping material compatibility
Waxed paper,cellophane,PVC,polypropylene,paper backed aluminium foil
Product Groups
Candy Chocolate Gummies Sweets
Processes
Cutting Feeding Forming Packing Sizing Wrapping
