Vacuum mixer for liquid and cream processing

When dealing with high-viscosity liquids and creams, achieving uniform consistency and effective emulsification is crucial, ensuring your formulations meet stringent quality standards and performance expectations.

Mixes, Homogenizes, and Emulsifies Liquids and Creams

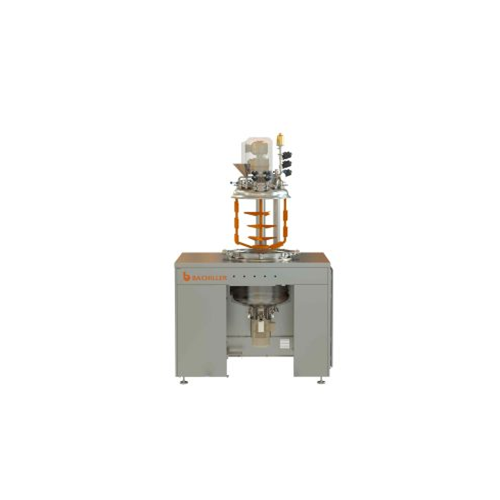

The Bachlab from Bachiller is a versatile laboratory vacuum mixer and reactor designed for R&D labs in the pharmaceutical, cosmetics, and food industries. It specializes in precision mixing, homogenization, and emulsification of liquids and creams, addressing complex formulation challenges efficiently. Operating under vacuum conditions, it minimizes air infiltration, vital for sensitive formulations. With capacities ranging from 5L to 150L, it is ideal for small-scale production and testing. It integrates seamlessly into existing setups, with features like precise temperature and pressure controls, ensuring repeatable results. Constructed from stainless steel, it offers excellent corrosion resistance and complies with GMP and EHEDG standards, ensuring suitability for sterile applications. The system includes a CIP option for thorough, automated cleaning, reducing downtime and ensuring contamination-free processing. Customizable options are available, supported by Bachiller’s engineering team to tailor the equipment for specific process requirements.

Benefits

  • Enhances product consistency and quality through precise mixing and homogenization.
  • Facilitates efficient scale-up from R&D to production with adaptable processing capacities.
  • Minimizes contamination risk with CIP system and compliant with GMP standards.
  • Reduces processing time with rapid vacuum and pressure adjustments.
  • Provides flexibility in formulation with customizable settings and material options.

General


Applications
Food,Biotechnology,Essences and aroma,Pharmaceutical and veterinary,Fine chemicals,Liquid formulations,Cosmetics,Natural extracts,Pulp and paper,Chemical,Biocides,Petrochemical,Waste treatment,Resins,Minerals,Wood and derivatives,Plastics and polymer
End products
Mineral slurries,Disinfectant solutions,Intravenous fluids,Epoxy resins,Specialty chemicals,Cellulose pulp,Chemical agents,Protein synthesis mixtures,Plant extracts,Polymer dispersions,Dairy emulsions,Sewage sludge,Essential oil blends,Refined oils,Skincare creams,Wood adhesives,Beverage emulsions,Aroma compounds
Steps before
Purification,Drying,Grinding
Steps after
Sterilization,Packing,Washing,Coating
Input ingredients
liquids,creams,viscous products
Output ingredients
homogenized liquids,dispersed creams,emulsified mixtures,sterilized products,deaerated products
Market info
Bachiller specializes in industrial engineered-to-order equipment, known for high-quality process equipment in the chemical, petrochemical, pharmaceutical, and food industries. They are recognized for their expertise in designing and manufacturing pressure vessels, reactors, and mixing equipment.

Technical Specifications


Capacity
5L to 20,000L
Homogenization
Internal/External
Viscosity
up to 250,000 mPa.s
Power
3 KW up to 90 KW
CIP System
1,2 or 3 tanks,500L to 3,000L
Emulsions
Yes
Vacuum Operations
Yes
Pressure Operations
Yes
Washing and Sterilization
Yes
Particle Size Regulation
Colloidal Mill

Operating Characteristics


Batch vs. continuous operation
Batch
CIP/SIP
CIP 121°C / SIP 135°C
Automation level
PLC / SCADA
Air incorporation control
Yes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Footprint
Compact design
Tank Size
5L to 20,000L
Tank Shape
Cylindrical
Discharge Method
Bottom discharge
Feed Method
Top feed

Custom Options


Control panel type
HMI/PLC
Integration possibilities
SCADA/BMS integration
Compact footprint
Yes
Discharge method
Manual/Automatic
