Vacuum homogenizer for creams and ointments
Streamline your production with cutting-edge vacuum homogenization, perfect for achieving consistent emulsions and creams. Experience enhanced product uniformity and reduced processing time, essential for batch processing of high-quality personal care and pharmaceutical products.
Mixes and Homogenizes Creams with Vacuum Integration

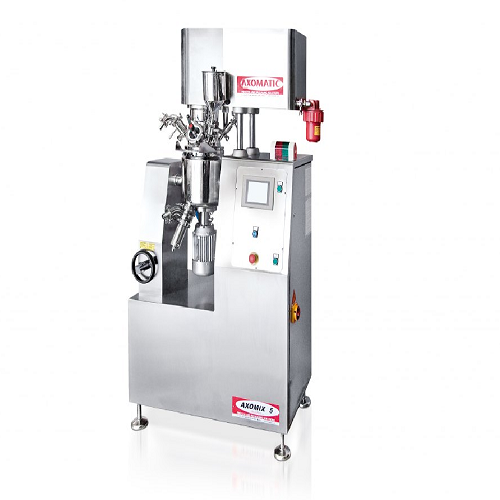

The Axomix 3 – 15 from Axomatic is an engineered-to-order undervacuum homogenizer designed to enhance your production line for cosmetics, pharmaceuticals, and personal care industries. This equipment excels in achieving uniform texture and stability for creams, lotions, gels, and emulsions through its contra-rotating slow mixing with Teflon scrapers and a high-speed homogenizing turbine operating up to 3,000 rpm. This system efficiently manages mixing, homogenizing, and heating processes under vacuum conditions, ensuring optimal product consistency.
The Axomix 3 – 15 offers a mechanical vessel tilting feature to facilitate product discharge and an inspection window with integrated lighting for phase monitoring. With its mechanical lifting cover and central bottom valves, it simplifies raw material handling and final discharge operations. This machine is capable of semi-automated batch operations, with precise control over process parameters via a color touchscreen control panel.
For energy efficiency, the Axomix utilizes a 0.75 kW mixing motor, a 1.1 kW turbine motor, and 3 kW heating elements powered by steam. The equipment is engineered for easy cleaning and maintenance, featuring a system equipped with spray balls for effective inner surface cleaning. It can also be customized with optional features such as check weighters and a production data printing capability, ensuring adaptive integration into your existing production setup.
Benefits
- Ensures consistent product quality with precise vacuum mixing and homogenization.
- Streamlines operations with mechanical features that enhance ease of discharge and cleaning.
- Increases production efficiency with integrated heating, minimizing process time.
- Reduces resource usage through energy-efficient motor and heating systems.
- Allows flexible integration with customizable features to match specific production needs.
- Applications
- Personal care products,Gels,Nutraceuticals,Cosmetics,Ointments,Emulsions,Lotions,Creams,Pharmaceuticals
- End products
- Facial moisturizers,Skin ointments,Liquid foundations,Medicated ointments,Lip balms,Hair gels,Foot creams,Antifungal gels,Herbal extracts,Protein supplements,Vitamin c serums,Anti-aging creams,Herbal lotions,Sunscreens
- Steps before
- Purification,Emulsification,Ingredient Loading
- Steps after
- Sterilization,Packing,Quality Inspection,Data Logging
- Input ingredients
- Output ingredients
- Market info
- Axomatic, part of the Marchesini Group, is known for manufacturing high-quality automated machinery for packaging, particularly in the cosmetic, pharmaceutical, and food industries, with a reputation for innovation and customization in engineered-to-order equipment.
- Turbine Speed
- Up to 3,000 rpm
- Mixing Motor Power
- 0.75 kW
- Turbine Motor Power
- 1.1 kW
- Vacuum Pump Power
- 0.37 kW
- Heating Elements Power
- 3 kW
- Working mechanism
- Contra-rotating slow mixing
- Mixing step
- Homogenizing turbine
- Automation level
- Control Panel T,S color kind
- Cover handling
- Mechanical lifting
- Product discharge method
- Mechanical vessel tilting
- Vacuum raw material intake
- Central bottom valves
- Cleaning method
- Spray balls
- Data logging
- Printing of production data
- Control panel type
- T,S color kind to show all the main machine
- Discharge method
- Central bottom valves to suck undervacuum raw material or discharge the finished product
- Inspection window
- Inspection window with light to check the mixing phases
- Mixing method
- Contra-rotating slow mixing with teflon scrapers
- Mechanical lifting
- Mechanical lifting of the cover
- Mechanical vessel tilting
- To facilitate the finished product discharge
- Homogenizing turbine speed
- Up to 3.000 rpm
- Essences little hopper
- Yes
- Control panel type
- Color touch screen
- Discharge method
- Mechanical vessel tilting
- Cleaning system
- Spray balls
- Lifting mechanism
- Mechanical cover lifting
- Inspection features
- Inspection window with light
- Optionals available
- Check weighters,Cleaning system by spray balls,Printing of production data
